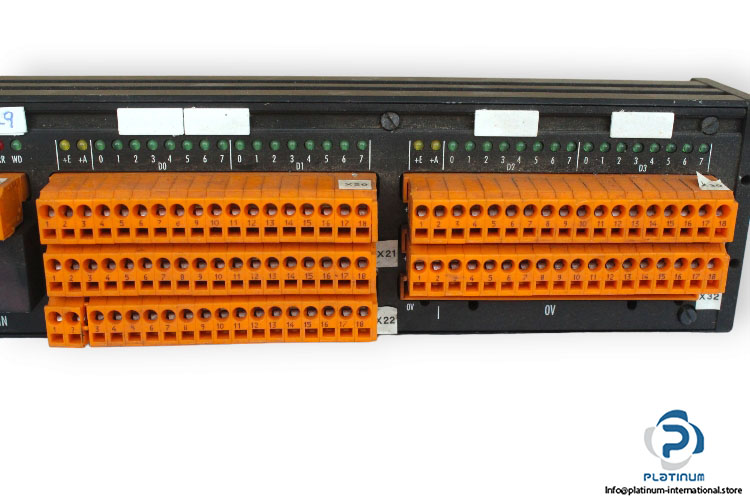

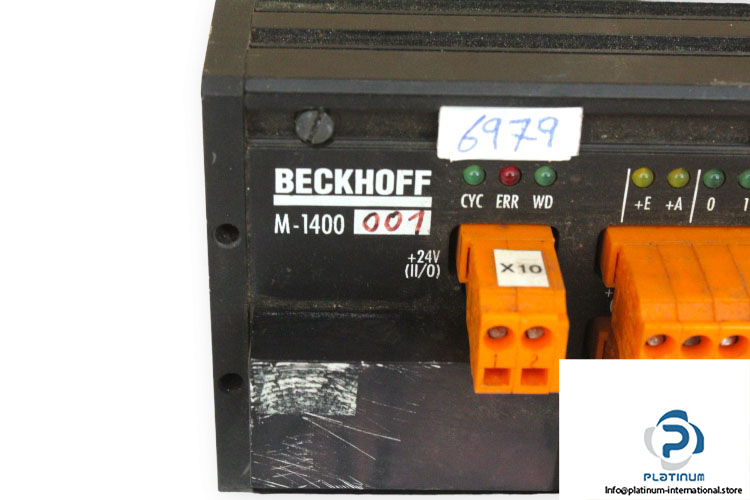

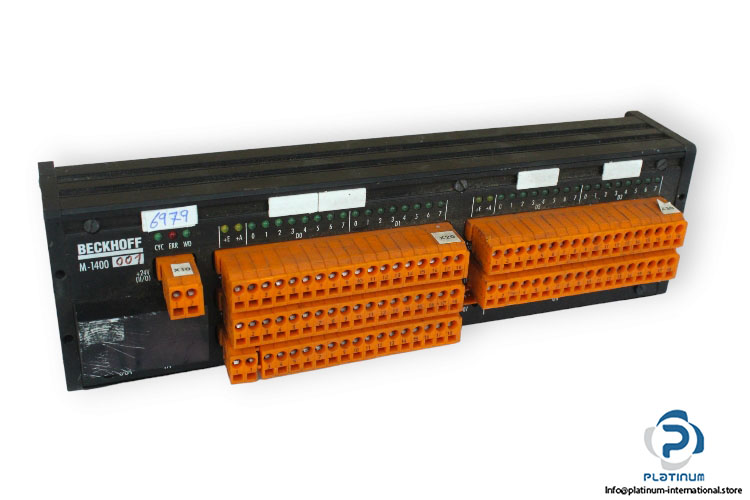

Beckhoff M-1400 001 Parallel Input Output Module

Manufacturer: Beckhoff
Type: Parallel Input Output Module
Model: M1400001

Supply Voltage: 24 V DC
No. of inputs / Outputs: 32, can be configured for each port; LED shows state of all inputs / outputs
Input voltage: 24 VDC (0 … 8V = LOW,15 … 24V = HIGH)
Input current: 10 mA
Input delay time: 0,7 ms RC network /6,8 ms input latch
Output Voltage: 24 V DC
Output current: max. 500 Ma
Transmission rate: 2,5 MBaud, 25 µs for 32 Bit
Data connection: fibre optic II/O system
Connections: can be connected for 16 I/O; +,-,signal
Working Temperature: 0 … +55°C
Dimensions: 270 x 76 x 68 mm
