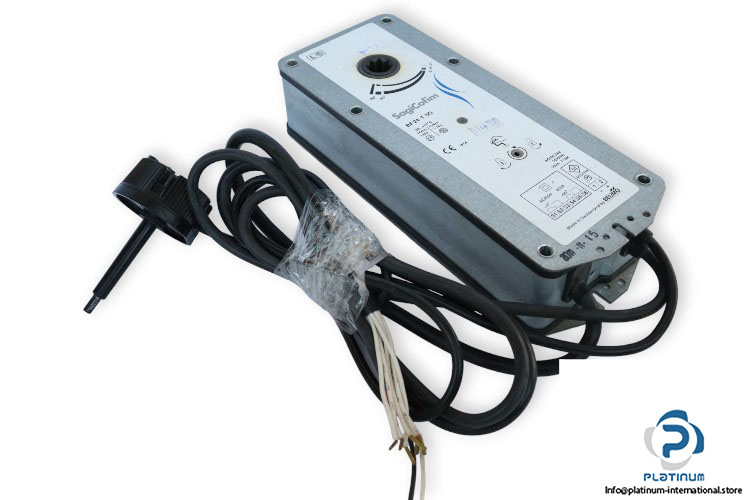

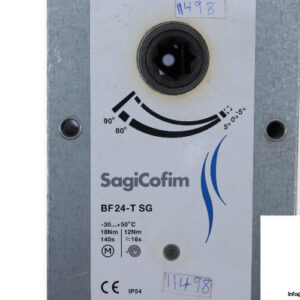

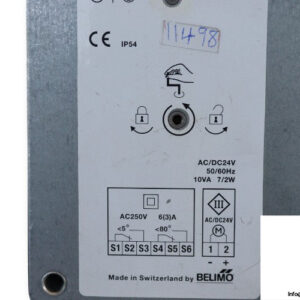

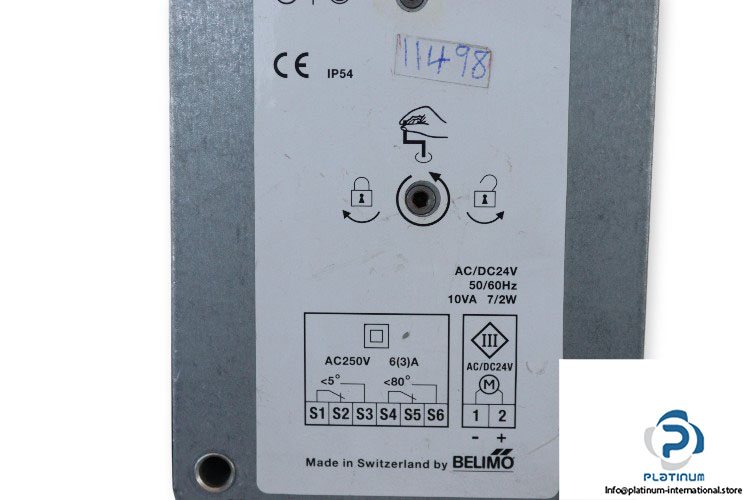

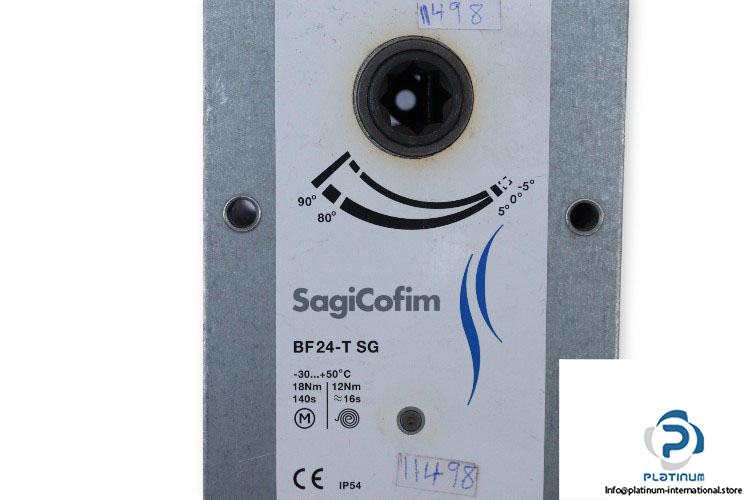

Belimo BF24-T SG Spring-Return Actuator

Manufacture: Belimo
Type: Spring-return actuator
Model: BF24-TSG
Family: Sagicofim

Torque motor: 18 Nm
Torque fail-safe: 12 Nm
Nominal voltage: 24 V AC/DC (19.2 … 28.8 V AC / 21.6 … 28.8 V DC)
Nominal voltage frequency: 50/60 Hz
Power consumption in operation: 7 W
Power consumption in rest position: 2 W
Power consumption for wire sizing: 10 VA
Power consumption for wire sizing note: Imax 8.3 A @ 5 ms
Auxiliary switch: 2x SPDT
Switching capacity auxiliary switch: 1 mA…6 A (3 A inductive), DC 5 V…AC 250 V
Angle of rotation: Max. 95°
Running time motor: 140 s / 90°
Running time fail-safe: 16 s @ 20°C
Rated impulse voltage supply / control: 0.8 kV
Pollution degree: 3
Sound power level, motor: 45 dB(A)
Sound power level, fail-safe: 63 dB(A)
Degree of protection: IP54
Ambient temperature normal operation: -30 … 50°C
Dimensions: 98 x 248 x 58.6 mm
Attachment:

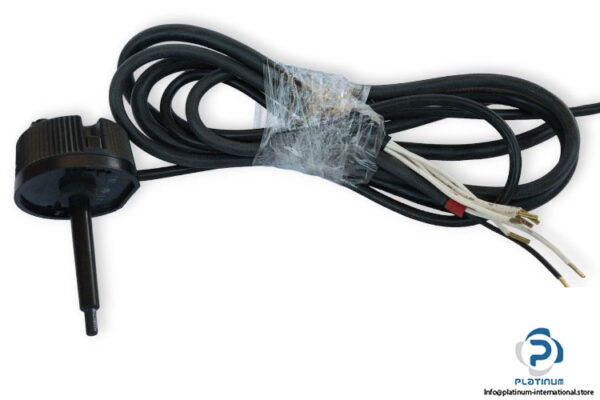

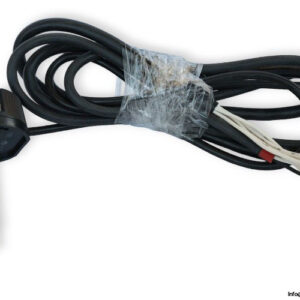

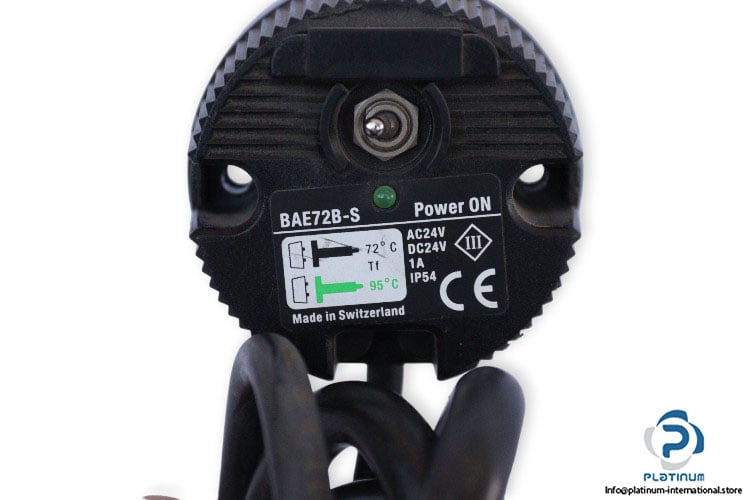

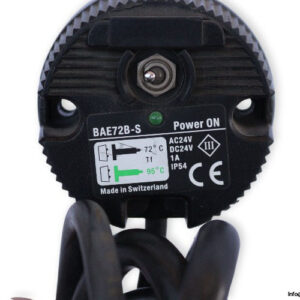

BAE72B-S THERMO-ELECTRICAL RELEASE DEVICE
Type: Thermo-Electrical Release Device
Model: BAE72BS

Voltage: 24 V AC/DC
Current: 1 A
Protection degree: IP54
Temperature: 72°C (OFF)… 90°C (ON)
