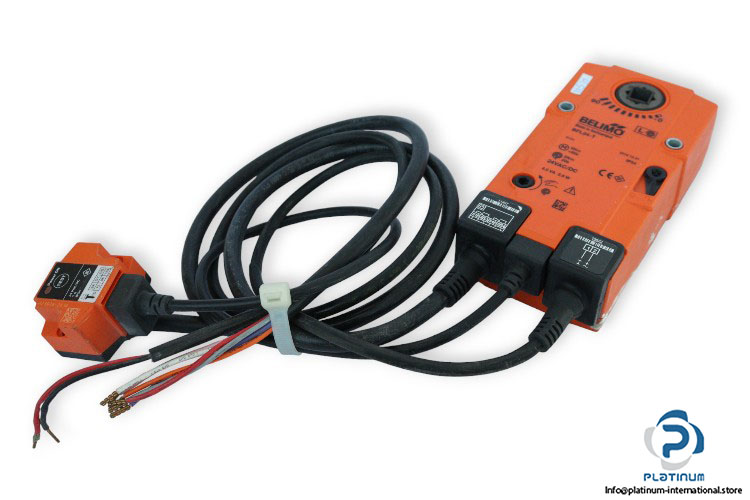

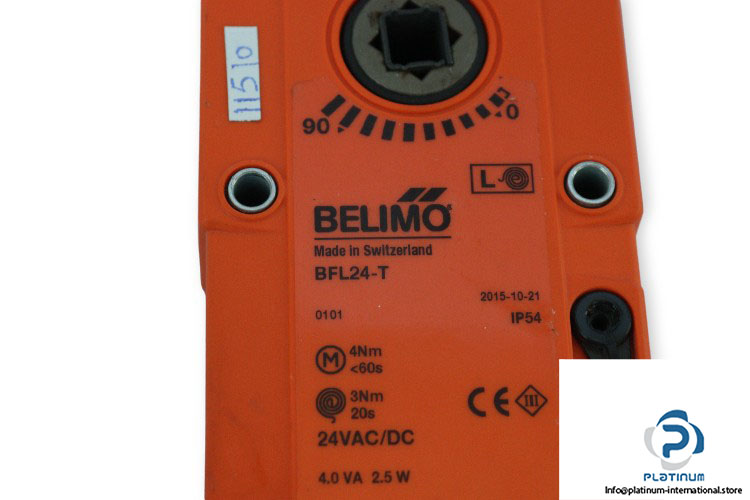

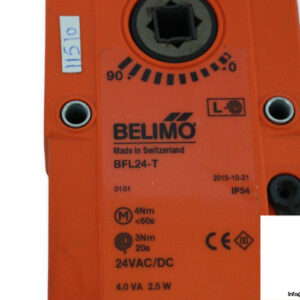

Belimo BFL24-T Spring-Return Actuator

Name: BELIMO BFL24-T SPRING-RETURN ACTUATOR
SKU: 1043438
Availability: LimitedAvailability

belimo-BFL24-T-spring-return-actuator-(used)

belimo-BFL24-T-spring-return-actuator-(used)-1

belimo-BFL24-T-spring-return-actuator-(used)-2

belimo-BFL24-T-spring-return-actuator-(used)-3

belimo-BFL24-T-spring-return-actuator-(used)-4

Used

In stock1 unitReady to ship

Manufacture:

Belimo

Type:

Spring-return actuator

Model:

BFL24T

Manufacturer

BELIMO

SKU

1043438

Category

Electric Rotary Actuator

Condition

Used

Actuator Belimo Damperactuator Electric Return Rotary spring

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacture: Belimo
Type: Spring-return actuator
Model: BFL24T

Torque motor: 4 Nm
Torque fail-safe: 3 Nm
Nominal voltage: 24 V AC/DC (19.2 … 28.8 V AC / 21.6 … 28.8 V DC)
Nominal voltage frequency: 50/60 Hz
Power consumption in operation: 2.5 W
Power consumption in rest position: 0.8 W
Power consumption for wire sizing: 4 VA

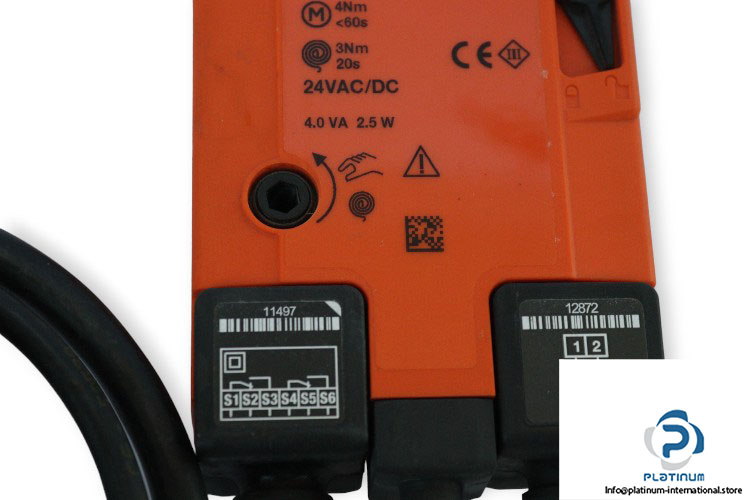

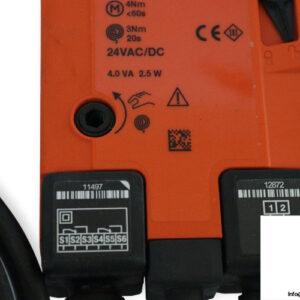

Auxiliary switch: 2x SPDT
Switching capacity auxiliary switch: 1 mA … 3 A (0.5 A inductive), DC 5 V … AC 250 V
Angle of rotation max.: 95°
Running time motor: <60 s / 90°
Running time fail-safe: 20 s
Degree of protection: IP54
Ambient temperature: -30 … 55°C
Dimensions: 48 x 80 x 180 mm
Attachment:

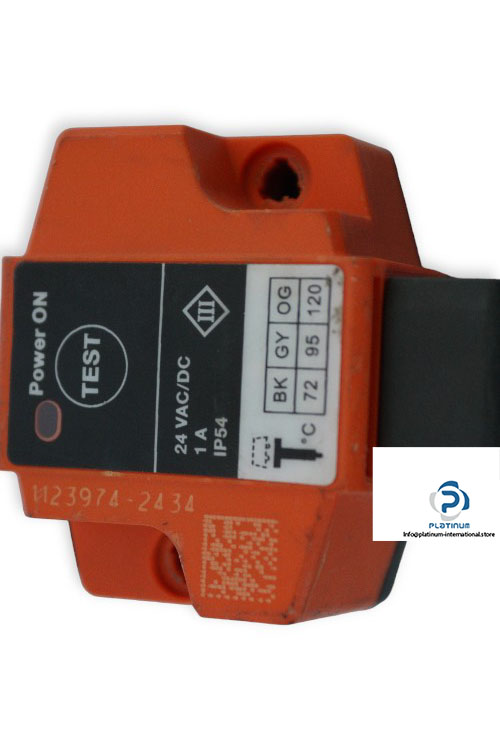

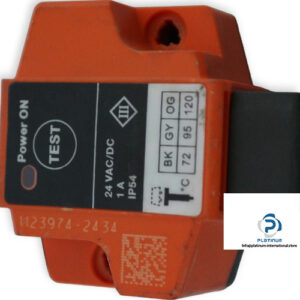

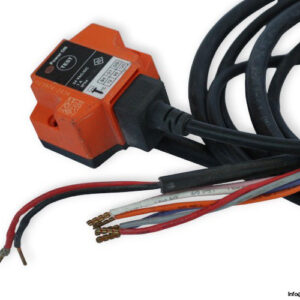

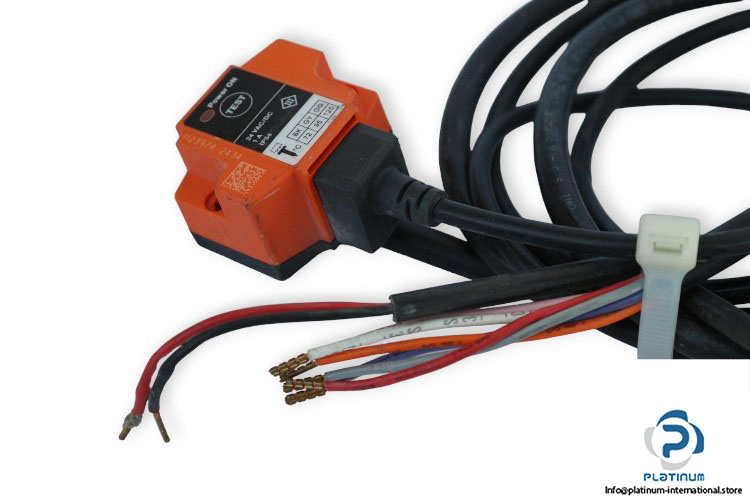

BELIMO 1123974-2434 THERMOELECTRIC TRIPPING DEVICE
Manufacture: Belimo
Type: Thermoelectric Tripping Device
Model: 11239742434

Specification	Value
Weight	1,02 kg
Condition	Used
Torque [Nm]	4
Frequency [Hz]	50/60
Shelf No.	240320
Nominal Voltage [AC/DC]	24 V
Manufacturer	BELIMO
Type of Product	Spring-return actuator
Dimensions [mm]	48 x 80 x 180
