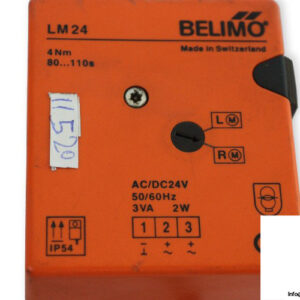

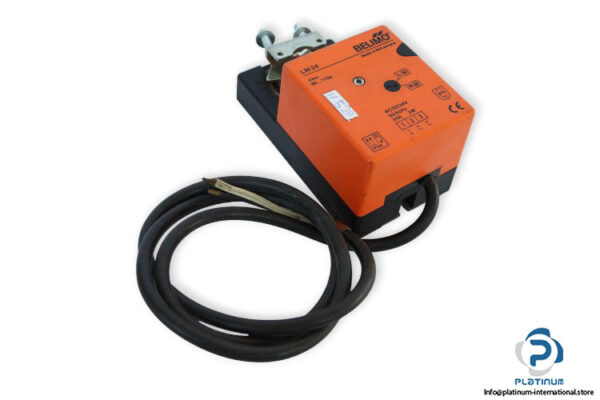

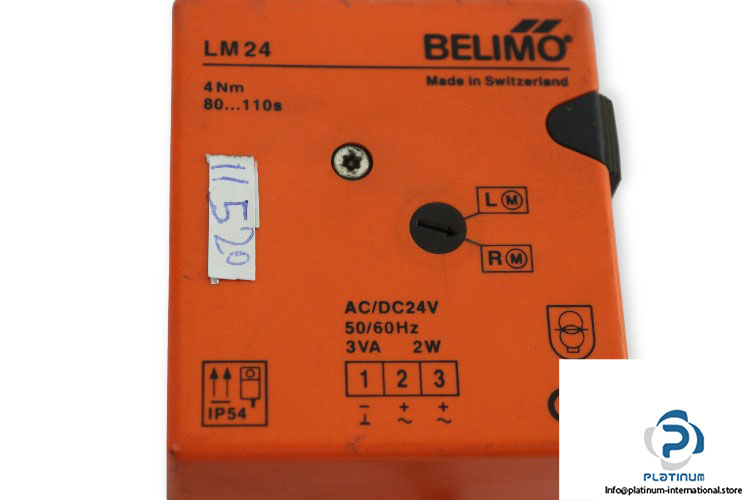

Belimo LM24 Damper Actuator

Manufacture: Belimo
Type: Damper actuator
Model: LM 24

Application: for the operation of air control dampers in ventilation and air-conditioning systems
Mode of operation: Open/Close control by single-wire or 2-wire system
Torque motor: 4 Nm
Nominal voltage: 24 V AC/DC (19.2 … 28.8 V AC/DC)
Nominal voltage frequency: 50/60 Hz
Power consumption: 2 W
Power consumption for wire sizing: 3 VA
Angle of rotation max.: 95°
Running time: 80 … 110s
Degree of protection: IP54
Ambient temperature: -30 … 50°C
Dimensions: 59 x 116.2 x 66.2 mm
