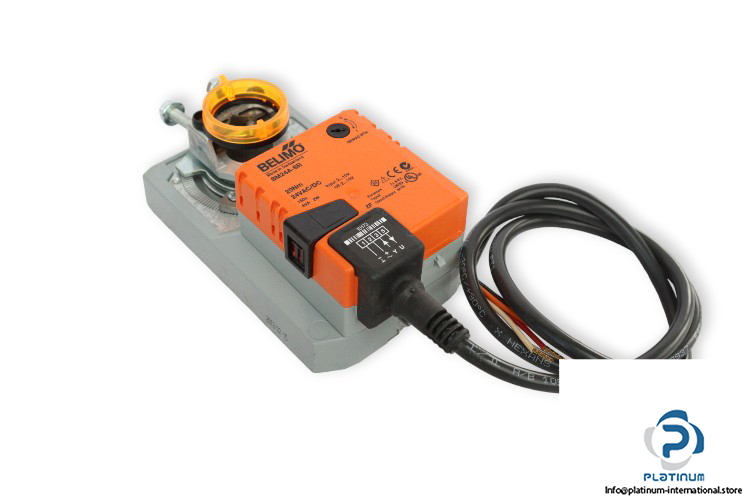

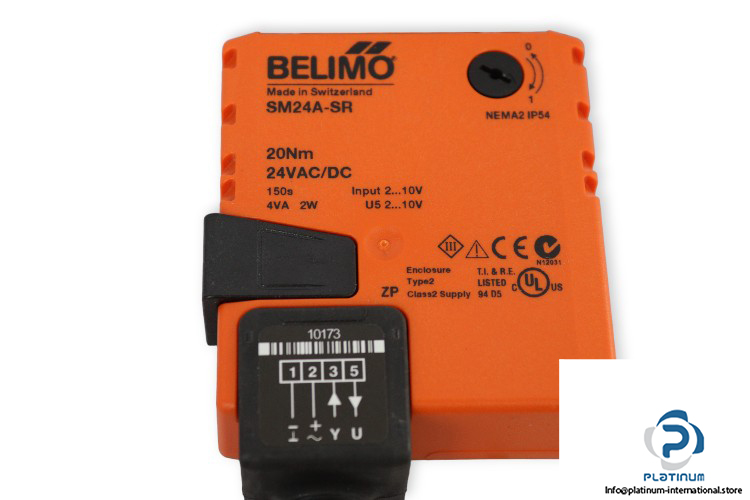

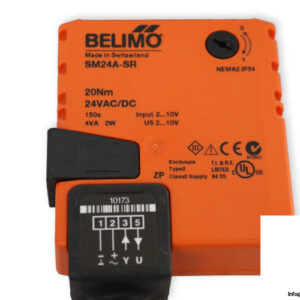

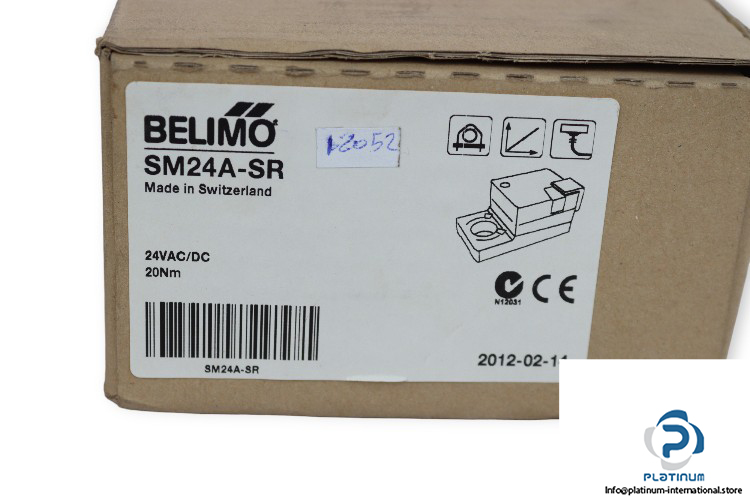

Belimo SM24A-SR Modulating Damper Actuator

Manufacture: Belimo
Type: Modulating damper actuator
Model: SM24ASR

Used: for adjusting dampers in technical building installations
Torque motor: 20 Nm
Nominal voltage: 24 V AC/DC (19.2 … 28.8 V AC / 19.2 … 28.8 V DC)
Nominal voltage frequency: 50/60 Hz
Power consumption In operation: 2 W
Power consumption in rest position: 0.4 W
Power consumption for wire sizing: 4 VA

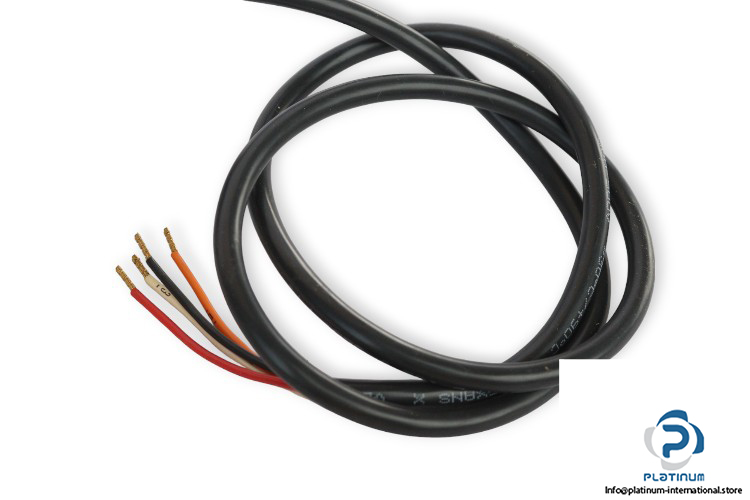

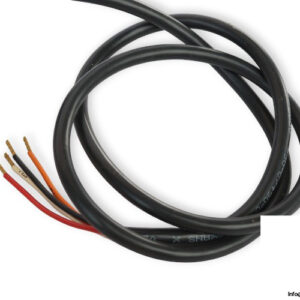

Connection supply / control: Cable 1 m, 4x 0.75 mm²
Operating range Y: 2… 10 V
Input impedance: 100 k„¦
Position feedback U5: 2 … 10 V
Angle of rotation: max. 95°
Sound power level: 45 dB(A)
Degree of protection: IP 54 NEMA2
Ambient temperature: -30 … 50°C
Dimensions: 58 x 64 x 180 mm
