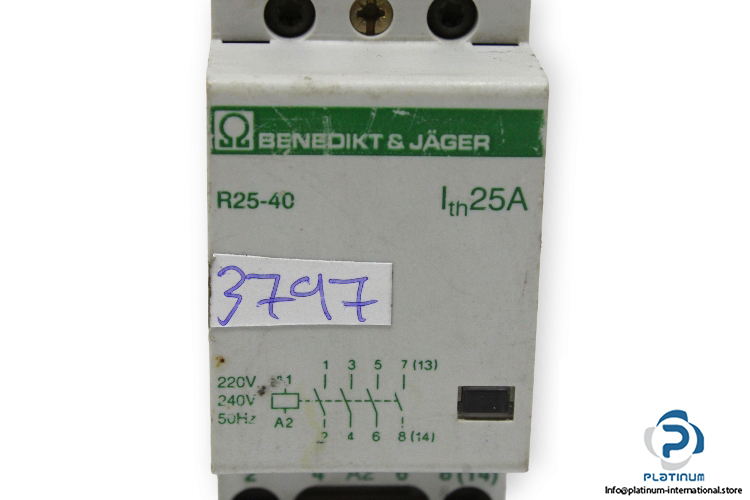

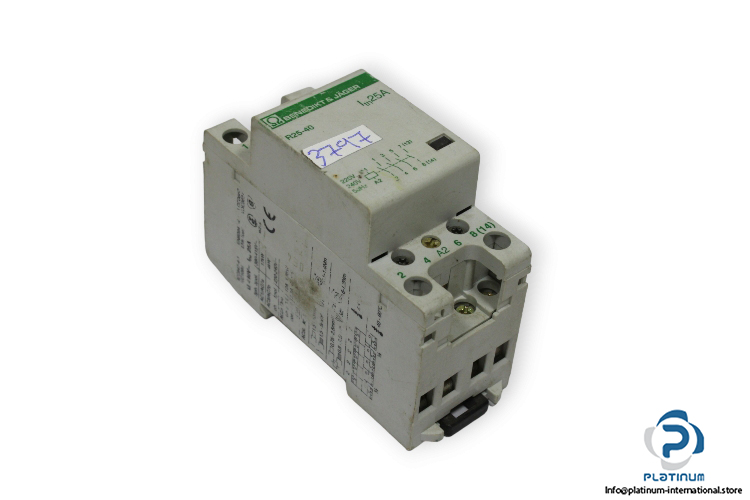

BENEDIKT&JAGER R25-40 MODULAR CONTACTOR

Manufacturer: Benedikt&Jager
Type: Modular Contactor
Model: R2540

Rated insulation voltage (Ui): 440 V AC
Coil voltage: 220 … 240 V AC,50 Hz
Rated operational voltage (Ue): 440 V AC
Thermal current (Ith): 25 A
Auxiliary contact: 4 Normally open
Number of poles: 4
Power loss per pole at Ie/AC1: 2 W
Rated operational power: 3-phase @ 380 … 415 V AC (17 kW AC-1) ,(4 kW AC-3)
Temperature: 40 … 60°C
Dimensions: 85 x 35 x 65 mm
