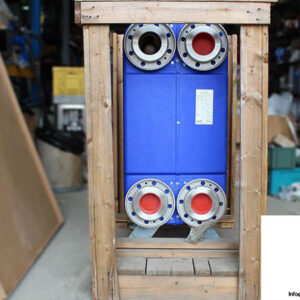

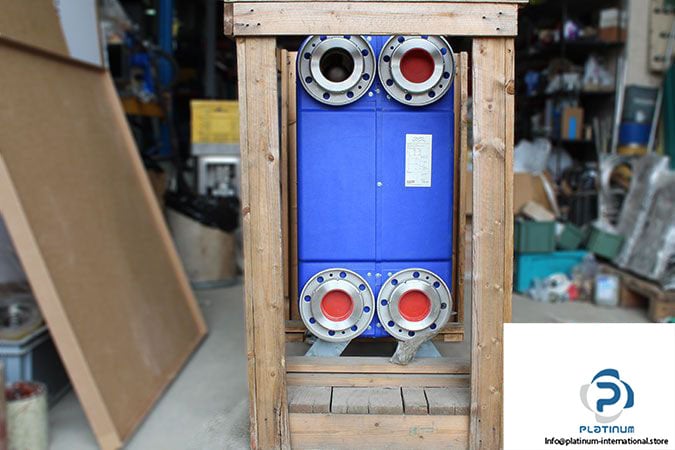

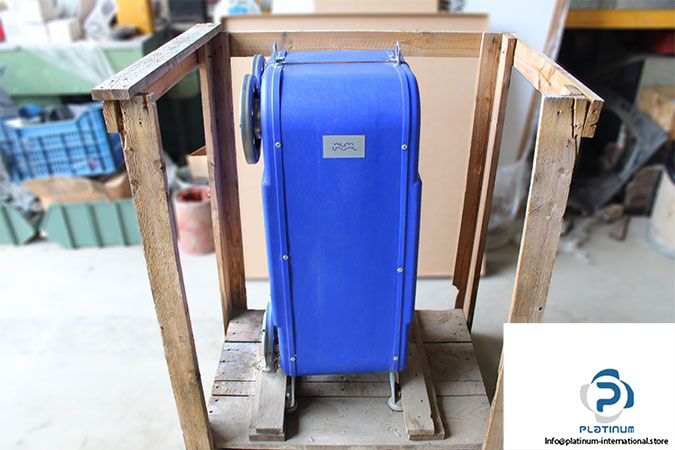

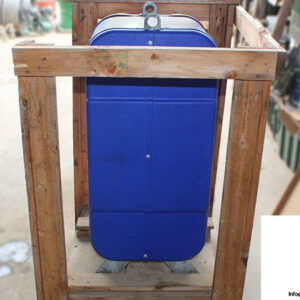

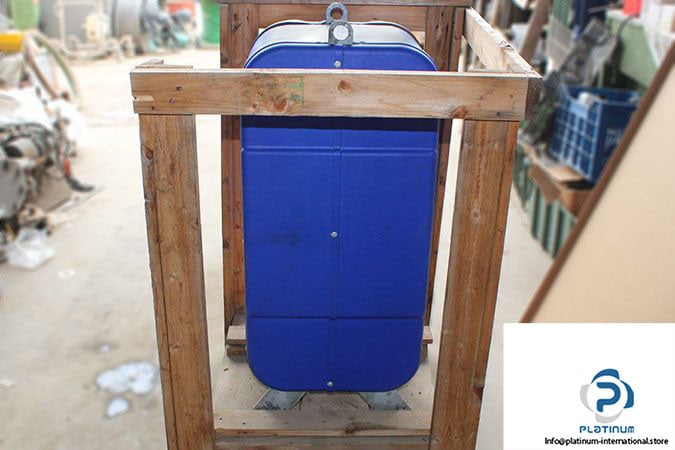

BHE Manufacturing Ronneby CB200-100H Brazed Plate Heat Exchanger

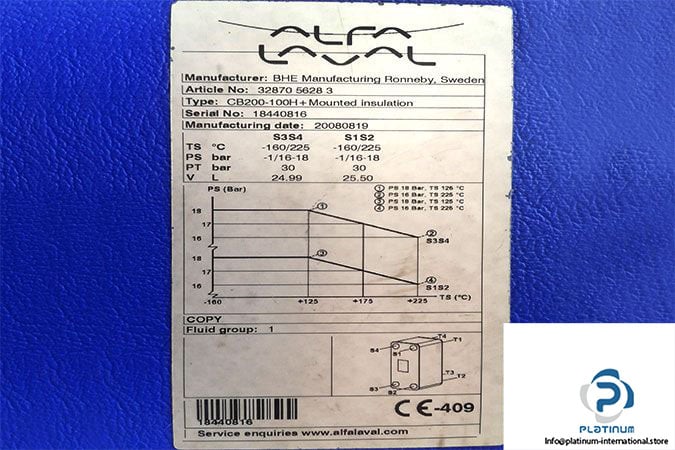

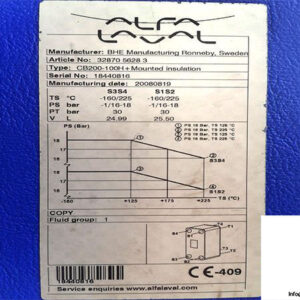

Manufacturer: BHE MANUFACTURING RONNEBY

Type: BRAZED PLATE HEAT EXCHANGER, MOUNTED INSULATION

Model: CB200-100 H

Art No: 32870 5628 3

Serial No: 18440816

Application: HAVAC Heating/Cooling, Refrigerant Application, Industrial Heating/Cooling, Oil Cooling

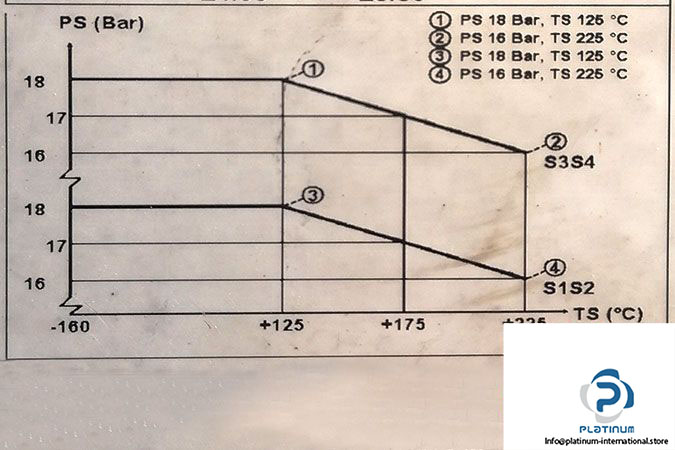

Duty S1/S2

Design Temperature: -160/225 °C

Design Pressure: -1/16…18 bar

Test Pressure: 30 bar ???

Volume: 25.50 L



Duty S3/S4



Design Temperature: -160/225 °C

Design Pressure: -1/16…18 bar

Test Pressure: 30 bar ???

Volume: 24.99 L

Number of Plates: 0-200

Plate Pack Dimension (LxWxH): 441 X 324 X 742 [mm]

Plate Material: Stainless Steel

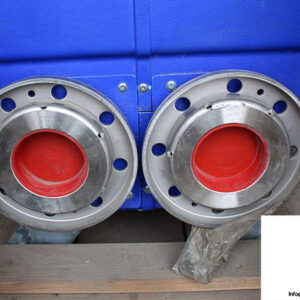

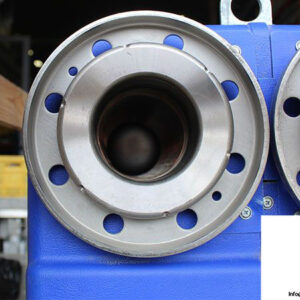

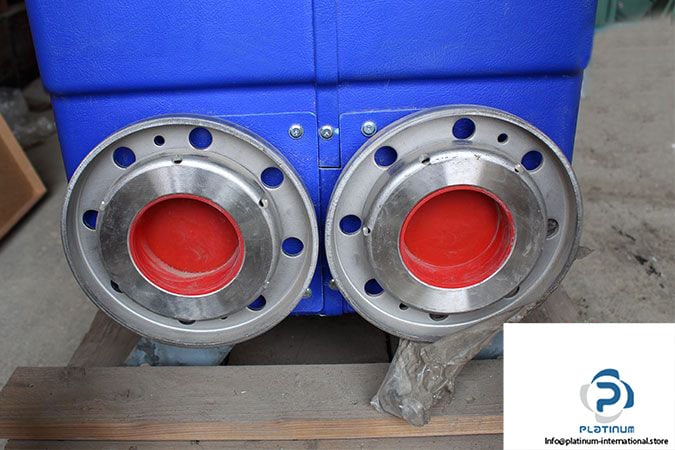

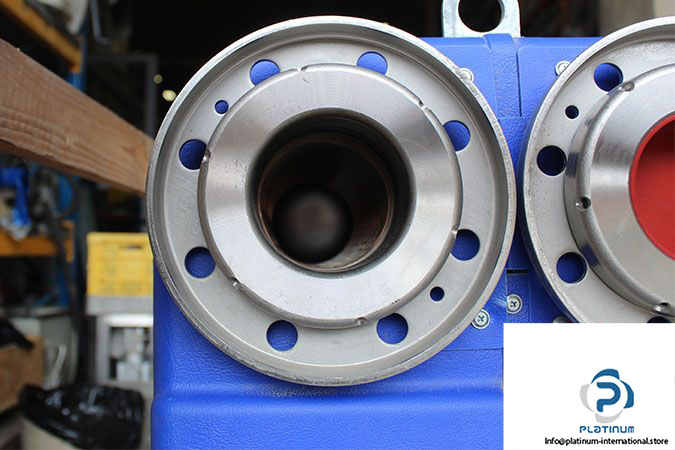

Connection Material: Stainless Steel

Brazing Material: Copper

Fluid Group: 1

Weight: 110 kg
