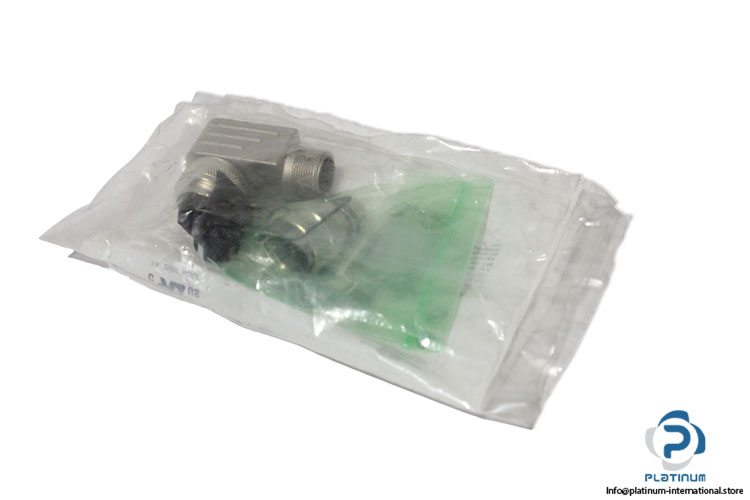

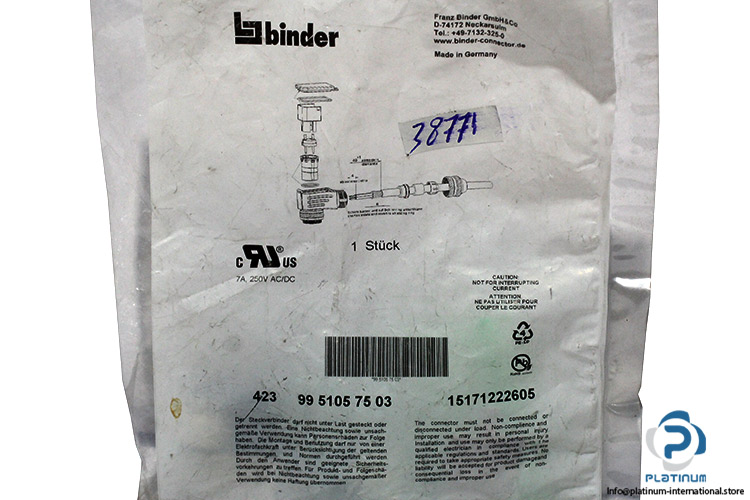

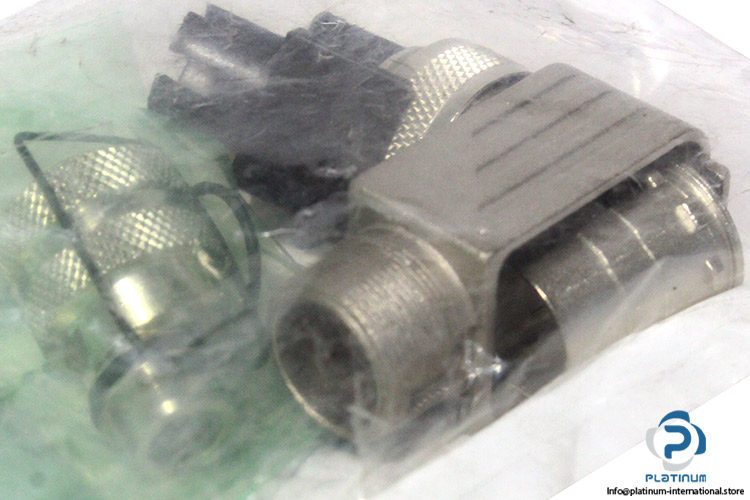

Binder 423 99 5105 75 03 Male Angled Connector

In stock1 unitReady to ship

M16 Male Angled Connector Binder M16 male angled connector with 250 V AC/DC rating, 7 A current capacity, screw locking, solder termination and IP67 protection for industrial connections.

Manufacturer
BINDER
SKU
1098343
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.4239951057503
Code15171222605 /
Rated voltage250 V AC/DC
Rated impulse voltage1500 V
Rated current7.0 A
Connector designmale angled connector
Type standardDIN EN 61076-2-106
VersionConnector pin angled
Connector locking systemscrew
Terminationsolder
Degree of protectionIP67
Connection cross-sectionmax. 0.75 mm² / AWG 18
Cable outlet4.0-6.0 mm
Temperature range-30 to 95 °C
Housing materialCuZn (Brass nickel plated)
Contact body materialPBT (UL94 V-0)
CertificatecURus
ConditionNew
Stock keyJO-004
SKU1098343
Weight0,06
