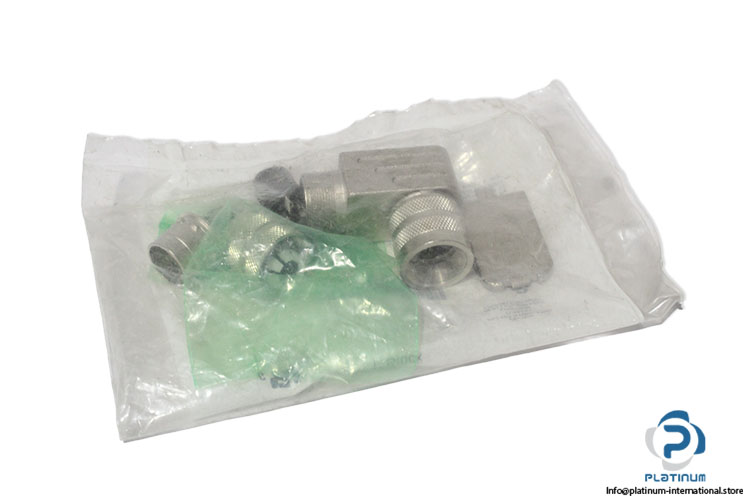

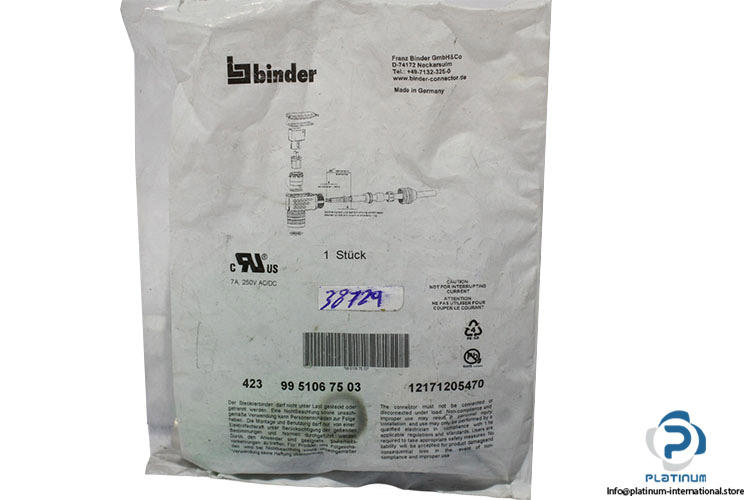

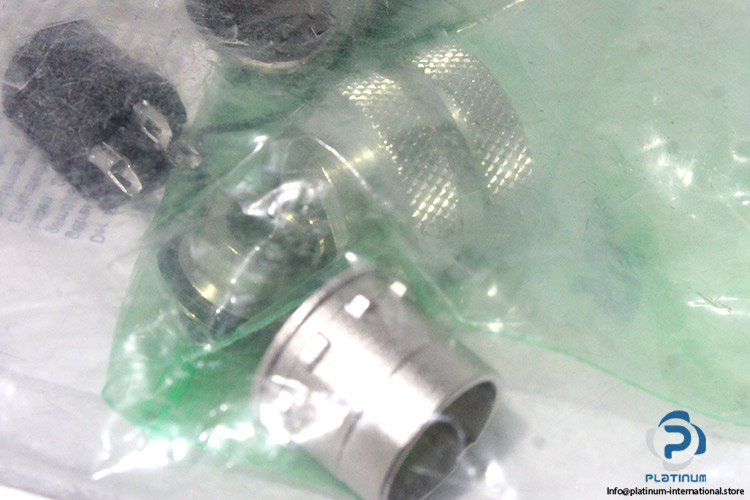

Binder 423 99 5106 75 03 M16 Female Angled Connector
New
In stock1 unitReady to ship
M16 Female Angled Connector Binder 9951067503 M16 female angled connector with 250 V AC/DC rating, 7 A current, screw locking, solder termination, and IP67 protection for industrial electrical connections.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 9951067503 |
| Code | 12171205470 / 423 |
| Rated voltage | 250 V AC/DC |
| Rated impulse voltage | 1500 V |
| Rated current | 7.0 A |
| Connector design | Female angled connector |
| Type standard | DIN EN 61076-2-106 |
| Version | Connector socket angled |
| Connector locking system | screw |
| Termination | solder |
| Degree of protection | IP67 |
| Connection cross-section | max. 0.75 mm² / AWG 18 |
| Cable outlet | 4.0-6.0 mm |
| Temperature range | -30 to 95 °C |
| Housing material | CuZn (Brass nickel plated) |
| Contact body material | PBT (UL94 V-0) |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1098236 |
| Weight | 0,07 |
