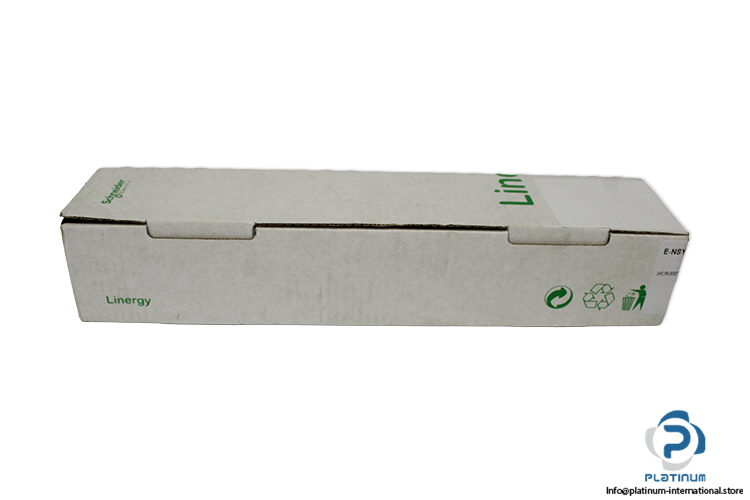

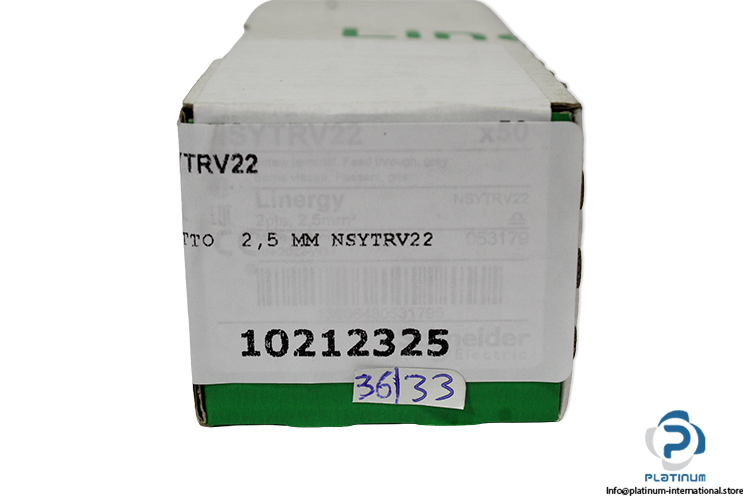

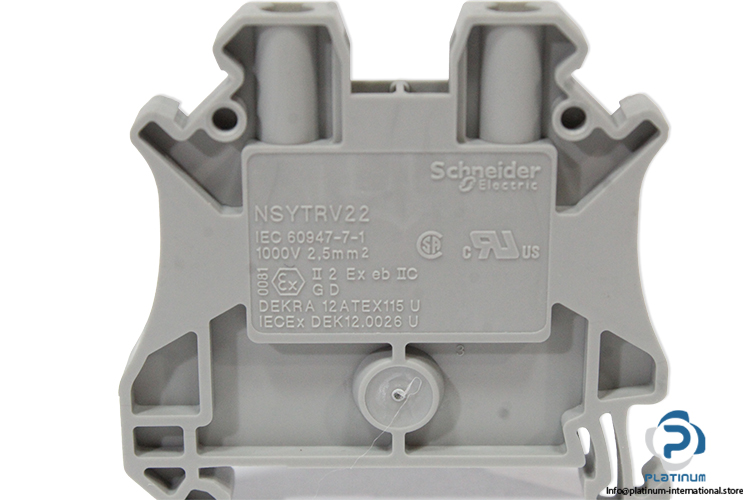

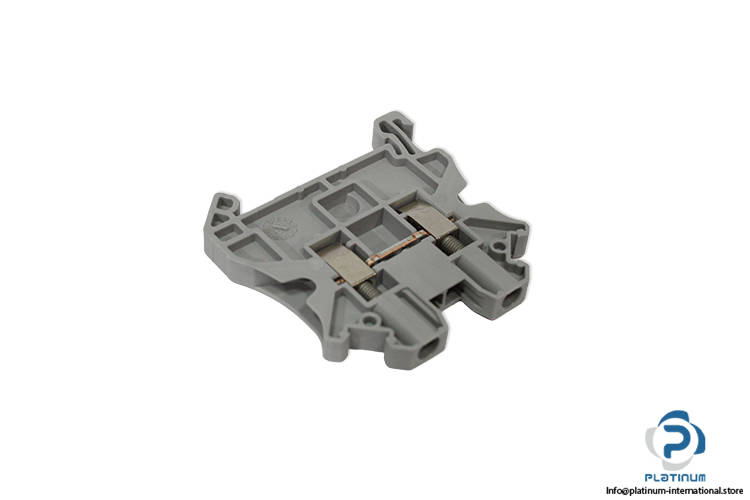

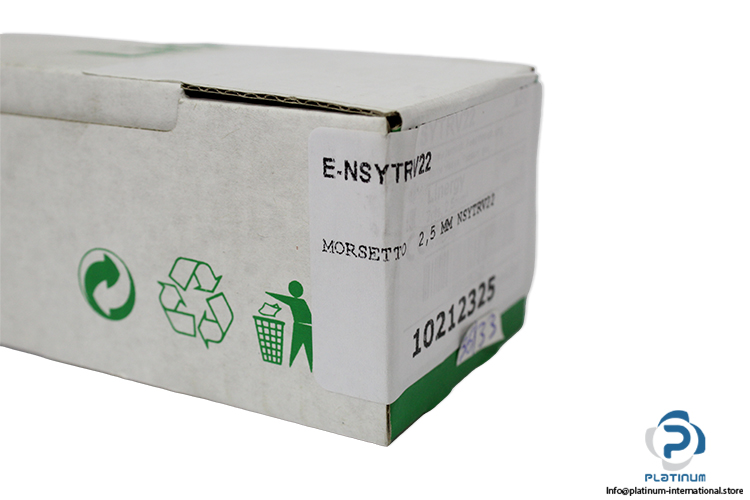

Schneider NSYTRV22 Terminal Block

In stock10 unitsReady to ship

Terminal Block

SCHNEIDER NSYTRV22 Linergy TR passthrough terminal block, clip-on mounting, 2.5 mm² nominal cross section, rated up to 1000 V and 24 A, supplied in sets of 50.

Manufacturer
SCHNEIDER
SKU
1095679
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.10212325
RangeLinergy
Product NameLinergy TR
Product Or Component TypeTerminal Block
Device Short NameTRV
Accessory / Separate Part CategoryConnection Accessory
Terminal Block TypePassthrough
Terminal Block Level1
Mounting ModeClip-On
Nominal Cross Section0.004 in² (2.5 mm²)
Length1.9 in (47.7 mm)
ColorGray
Quantity Per SetSet Of 50
Connections “ Terminals1 x Screw Terminal Upstream (M3)
Cable Cross Section0.0002 / 0.006 in² (0.14 / 4 mm²), Solid With Cable End, 0.0003 / 0.004 in² (0.2 / 2.5 mm²), Flexible With Cable End, 0.0002 / 0.006 in² (0.14 / 4 mm²), Solid Without Cable End, 0.0002 / 0.006 in² (0.14 / 4 mm²), Flexible Without Cable End
[Ue] Rated Operational Voltage1000 V EN/IEC 60947-7-1, 600 V CSA, 600 V UL
Line Rated Current24 A EN/IEC 60947-7-1, 20 A UL, 20 A CSA
MaterialPolyamide 6/6 “ Insulating Case, Copper Alloy “ Connector And Screw, Copper Alloy “ Commoning Link, Chromium-Nickel Steel “ Spring
Range CompatibilityPrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys, Thalassa TBP, Thalassa
Width0.2 in (5.2 mm)
Height1.9 in (47.5 mm)
1 x Screw Terminal Downstream (M3) Number Of Connections2
Connection PositionSideways
Number Of Measurement Input2
Tightening Torque4.4 / 5.3 lbf.in (0.5 / 0.6 N.m)
Wire Stripping Length0.4 in (9 mm)
Tool TypeConnection Screwdriver, Disconnection Screwdriver
Product CompatibilitySpacial Enclosures
Explosion ProofYes
StandardIEC 60947-7-1
ConditionNew
Stock KeyJO-004
