Binder 713 99 1430 822 04 Female Angled Connector
New
In stock9 unitsReady to ship
22,22$
Female Angled Connector
The Binder 713 99143082204 is a high-performance female angled connector designed for secure, reliable industrial and electronic connections. It features IP67 protection, screw-locking, and a 90-degree rotation option with 4 coding possibilities.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

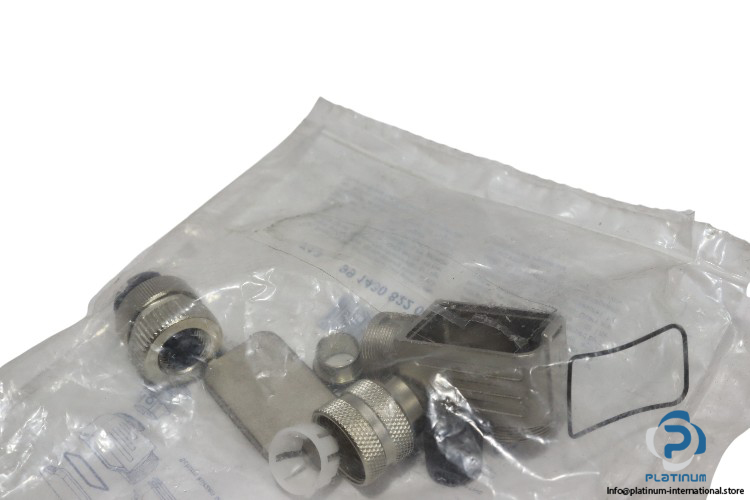

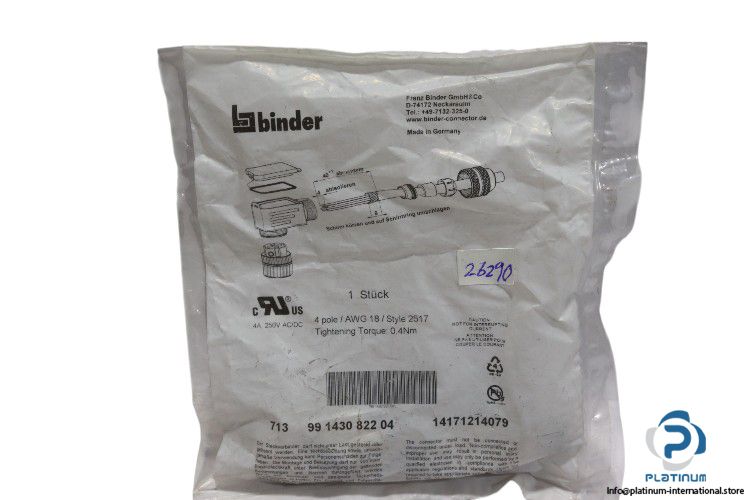

Binder 713 99143082204 “ Female Angled Connector
The Binder 713 99143082204 female angled connector is a high-quality, durable connector designed for industrial and electronic applications. With a wide range of features, including IP67 protection and screw-locking mechanism, this connector ensures secure and reliable connections in demanding environments.
Manufacturer: Binder
Type: Female Angled Connector
Part No: 713 99143082204
Ref. No: 14171214079
| Rated Voltage | 250 V AC/DC |
| Rated Impulse Withstand Voltage | 2500 V |
| Rated Current | 4 A |
| Pollution Degree | 3 |
| Type of Locking | Screw locking |
| Orientation | Angled |
| Pin No. | 4 poles |
| Protection Class | IP67 |
| Connection Cross-Section | Max. 0.75 mm² / AWG 18 |
| Cable Passage | 6 to 8 mm |
| Thread Size | M12 |
| Torque | 0.4 Nm |
| Type Standard | DIN EN 61076-2-101 |
| Rotation Option | 90 degrees (4 coding options) |
| Limit Temperature | -40 to 85 °C |
| Mechanical Life | Greater than 100 mating cycles |
