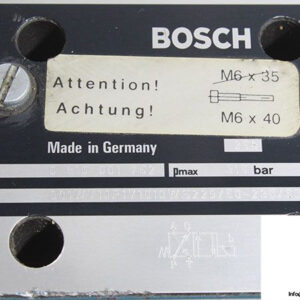

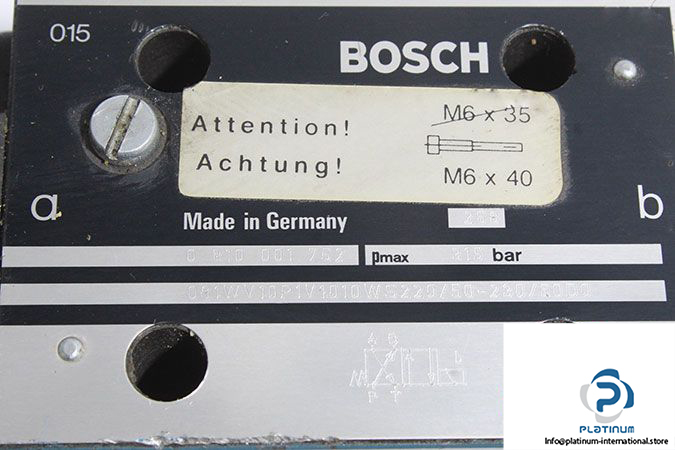

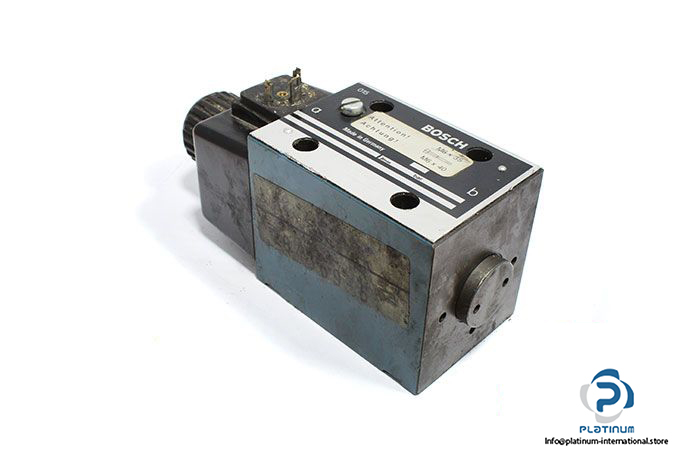

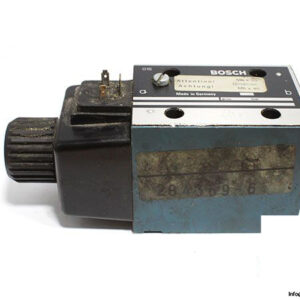

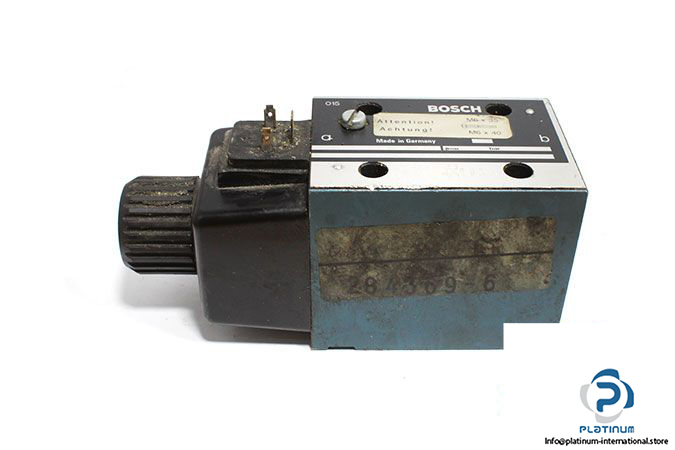

Bosch 0 810 001 752 Solenoid Operated Directional Valve

Manufacturer: BOSCH

Type: Solenoid Operated Directional Valve

Model: 0810001752

MRN: 081WV10P1V1010WS220/50-230/6000

Nominal Size: NG 10

Type of Actuation: Electrically

Max. Working pressure (Port P, A, B): 315 bar

Max. Pressure (Port T): 210 bar

Hydraulic Connection: Sub-Plate

Fluid Temperature Range: -20 ….. 50 °C

Attachment: BOSCH 0 837 001 213 SOLENOID COIL

Manufacturer: BOSCH

Type: Solenoid Coil

Model: 0 837 001 213

Nominal voltage per Coil: 24 VDC

Weight: 4.50 kg
