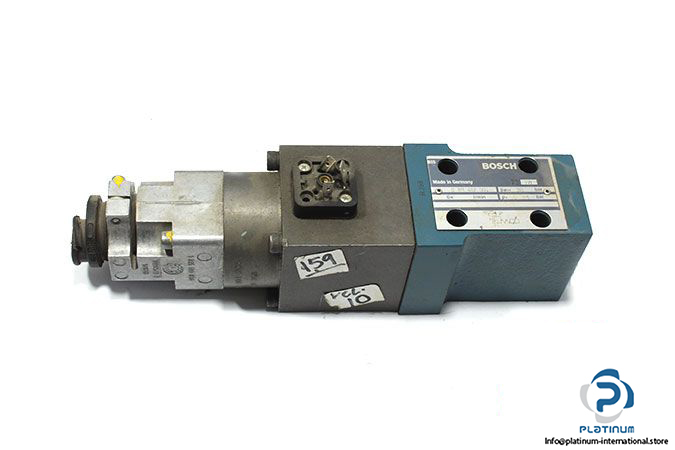

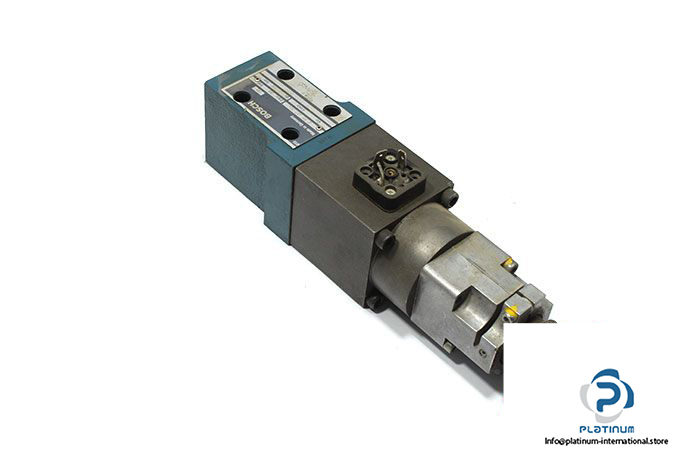

Bosch 0 811 402 004 Proportional Pressure Relief Valve
Manufacturer: BOSCH
Type: Proportional Pressure Reducing Valve

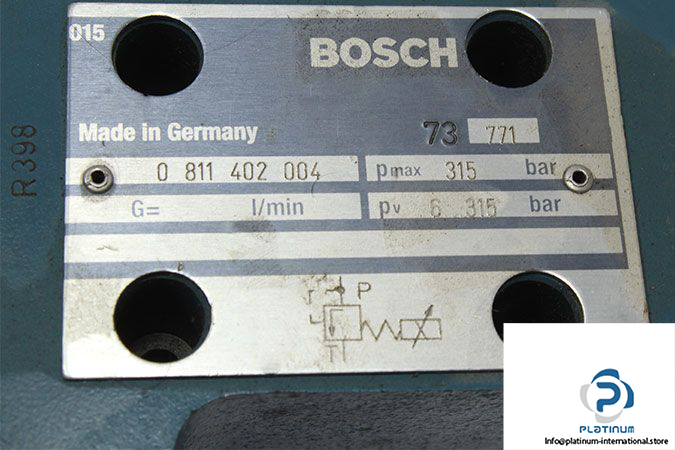

Model: 0 811 402 004
Nominal Size: 10
Type of Actuation: Electrical
Max. operating pressure – Port P: 315 bar
Max. operating pressure – Port T: 250 bar
Max. flow of the main valve: 200 l/min
Pressure Rating: 50 bar
Max. flow rate: 650 l/min
Hydraulic Connection: Sub-plate
Hydraulic fluid temperature range: –20 … +80 °C

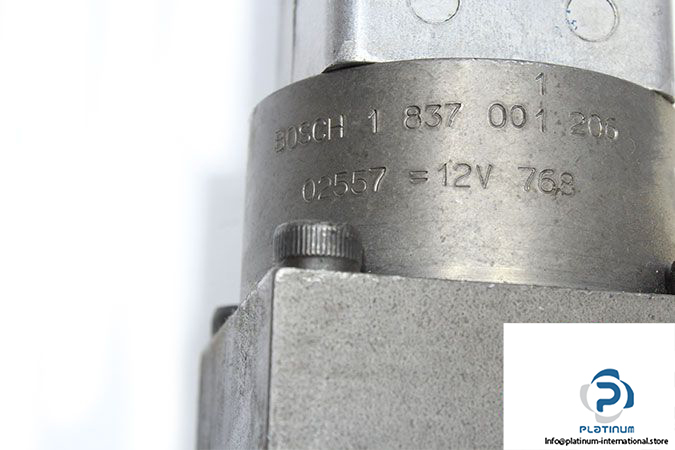

Attachment: BOSCH 1 837 001 206 SOLENOID COIL
Manufacturer: BOSCH
Type: Solenoid Coil
Model: 1 837 001 206
Supply Voltage Per Coil: 12 V DC
Weight: 4.00 kg
