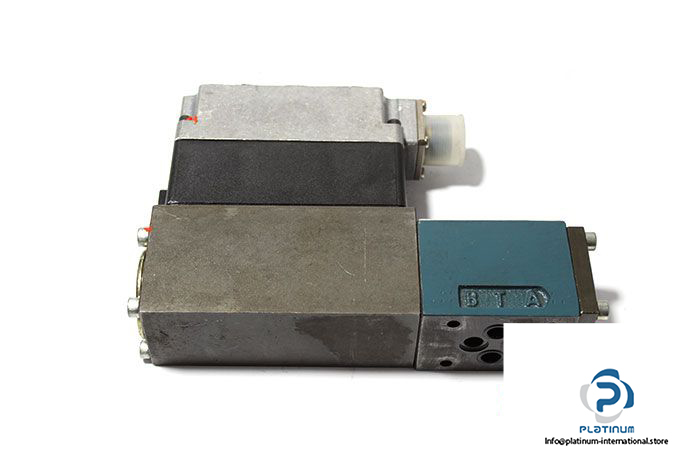

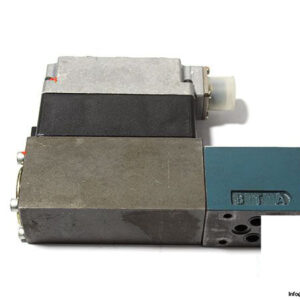

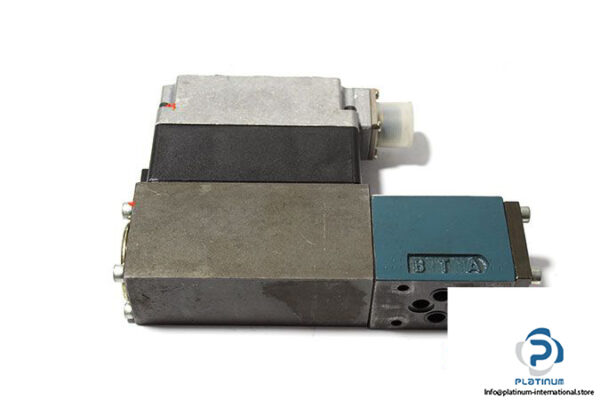

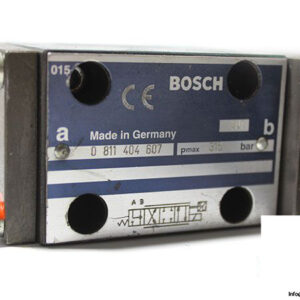

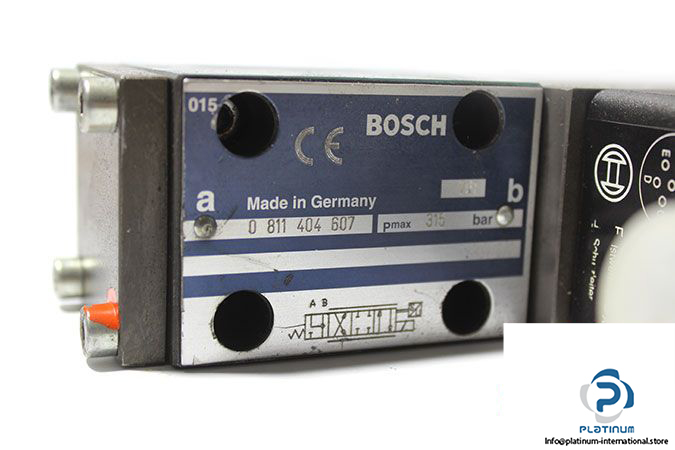

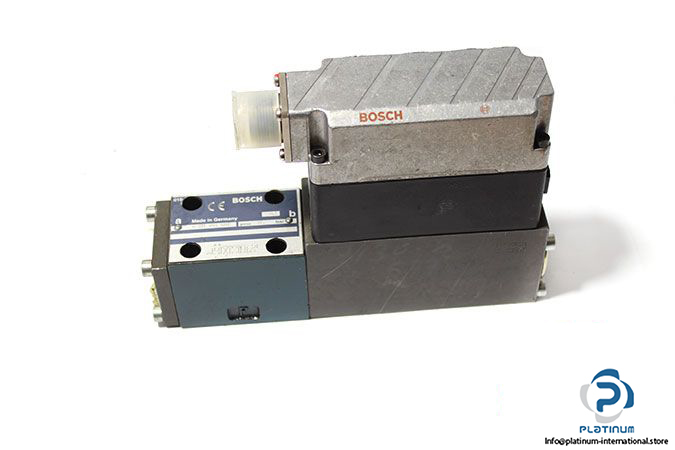

Bosch 0 811 404 607 Servo Solenoid Directional Control Valve Closed Type

Manufacturer: BOSCH

Type: Servo Solenoid Directional Control Valve

Model: 4WRPEH 6 C3 B04L-2X/G24K0/A1M-816

MNR: 0811404607

Size: NG 6

Actuation: Control solenoid with position control, OBE

Nominal Flow Rate: 4 l/m

Type of Mounting: Sub plate

Ambient Temperature Range: –20 … +50 ^oC

Viscosity Range: 20…100 mm²/s

Pressure fluid temperature range: –20 … +70 ^oC

Working Pressure:  Ports (P, A, B) 315 bar, Port(T) 250 bar

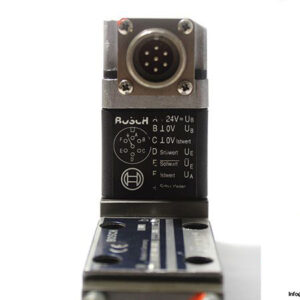

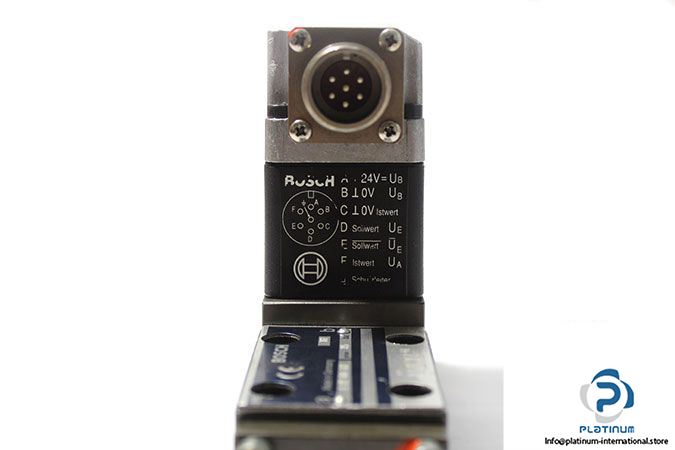

Electrical Connection: Plug-in connector 6P+PE

Voltage Supply: +24 VDC

Current: 2.5 A

Weight: 3.06 kg
