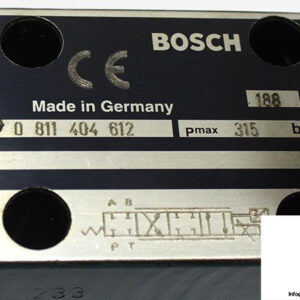

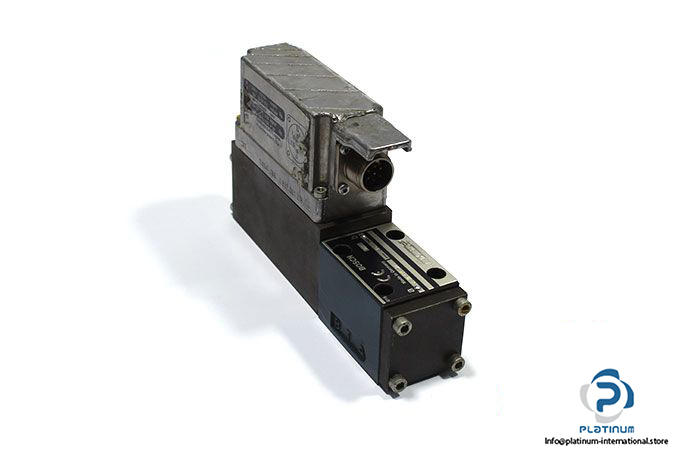

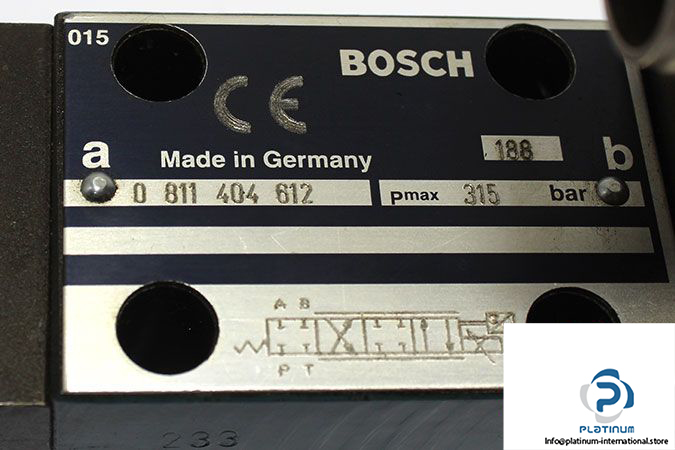

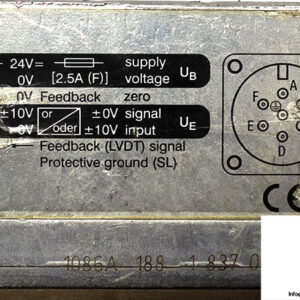

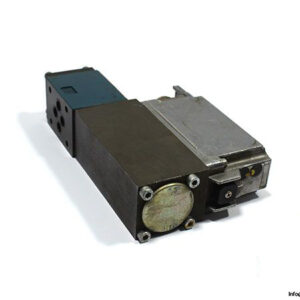

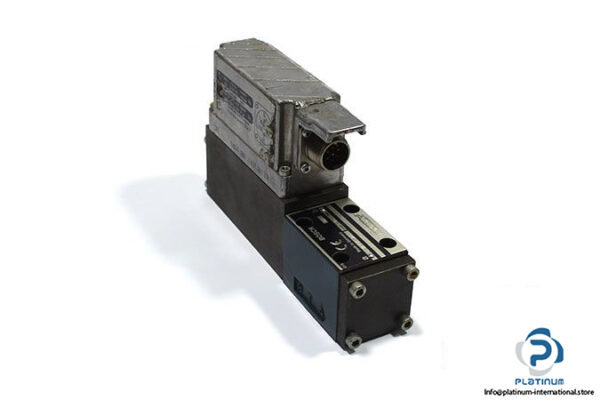

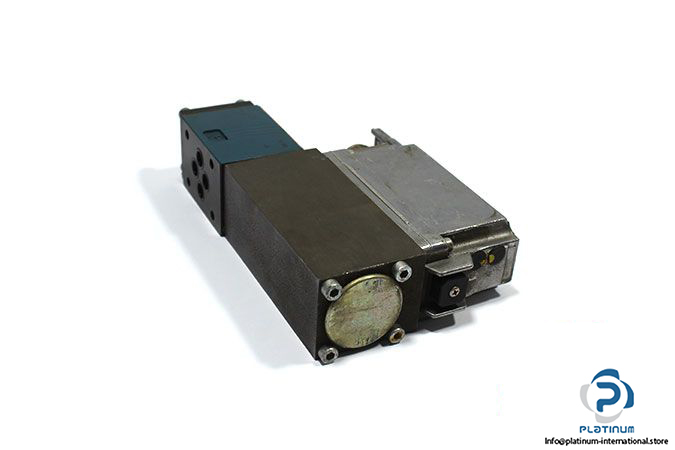

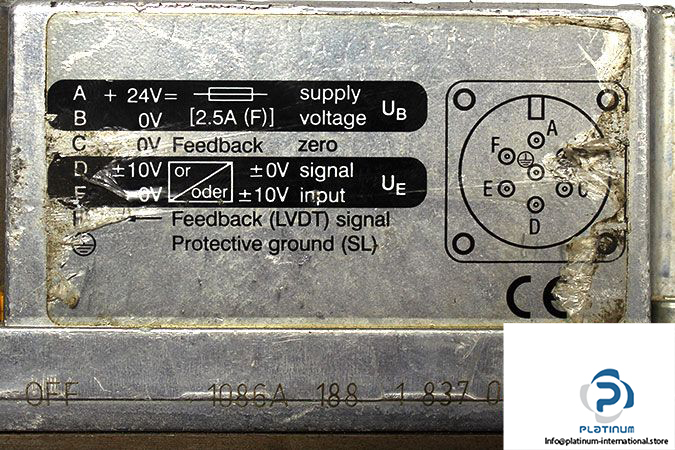

Bosch 0 811 404 612 Servo Solenoid Valve

Manufacturer: BOSCH

Type: Servo Solenoid Valve

Model: 4WRPEH6C4B24L-2X/G24K0/A1M

MNR: 0811404612

Nominal Size: 6

Type of Actuation: Proportional Solenoid with Position Control

Ambient Temperature Range: -20 …. +50 °C

Maximum Working Pressure Port P, A, B: 315 bar

Maximum Working Pressure Port T: 250 bar

Nominal Flow Rate: 2……40 I/min

Fluid Temperature Range: -20 …. +70 °C

Viscosity Range: 20…100 mm²/s

Hydraulic Connection: Sub-plate

Weight: 2.7 kg
