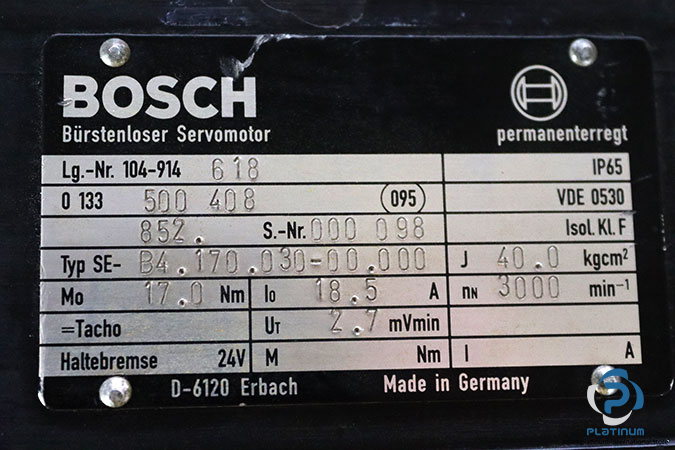

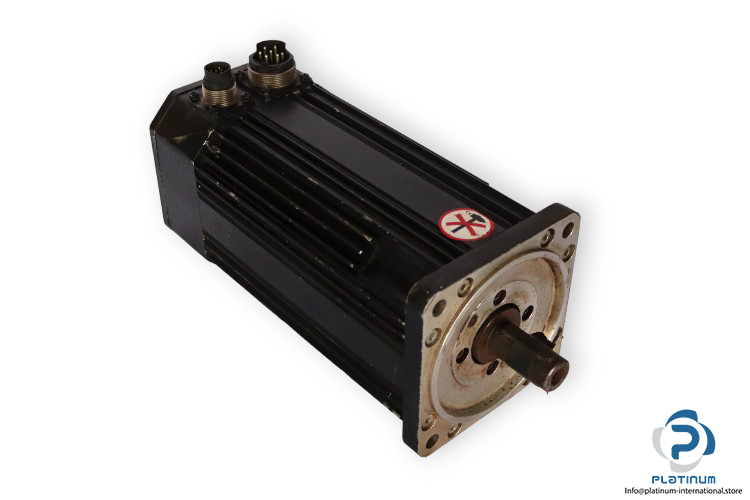

Bosch SE-B4.170.030-00.000 Servo Motor

Manufacturer: BOSCH
Type: Brushless servomotor with rare earth magnets
Model: SE-B4.170.030.00.000
S-NR: 000 098

Motor Size: 4
Current at Standstill: 18.5 A
Static Torque: 17 Nm
Maximum torque: 43 Nm
Nominal Speed: 3000 rpm
Moment of Inertia Tacho Generator: 40 kgcm2
Generator Constant:  2.7>V/1000>rpm ±5%
Holding Brake Supply Voltage U_BR: 24 V
Holding torque (transmittable) M_BR: 18 Nm
Nominal current I_BR: 1 A
Moment of inertia J_BR: 0.90 x 10⁻³ kgm²
Protection Class: IP 65
Insulation Class: Class F
ambient temperature: 0 …. 40 C⁰
