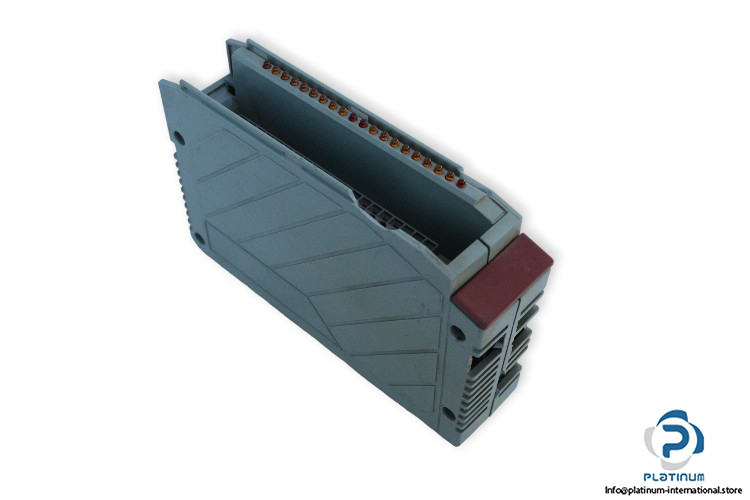

B&R 3DO479.6 DIGITAL OUTPUT MODULE

Manufacture: B&R Automation
Type: Digital output module

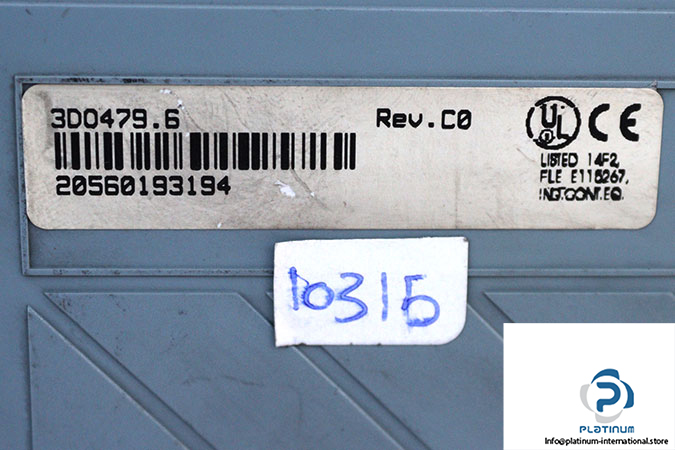

Model: 3DO479.6
Part No.: 20560193194

No. of digital outputs (DO): 16
Design: Transistor
Switching voltage: 19.5 … 30 V DC
Continuous current per:
Output: Max. 0.5 A
Group: Max. 4 A
Module: Max. 8 A
Leakage current when switched off: 0.3 mA
Switching delay:
log. 0 – log. 1: Typ. 5 µs / max. 110 µs
log. 1 – log. 0: Typ. 60 µs / max. 100 µs
Switching frequency (resistive load): Max. 500 Hz
Braking voltage when switching off inductive loads: 45 … 55 V
Power consumption Total: 12 W
