B&R 8BVI0220HWS0.000-1 SINGLE-AXIS MODULES
New
Available on request

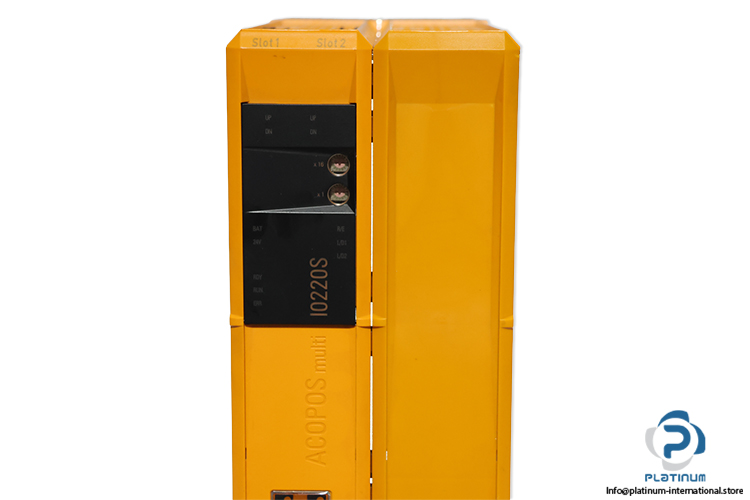

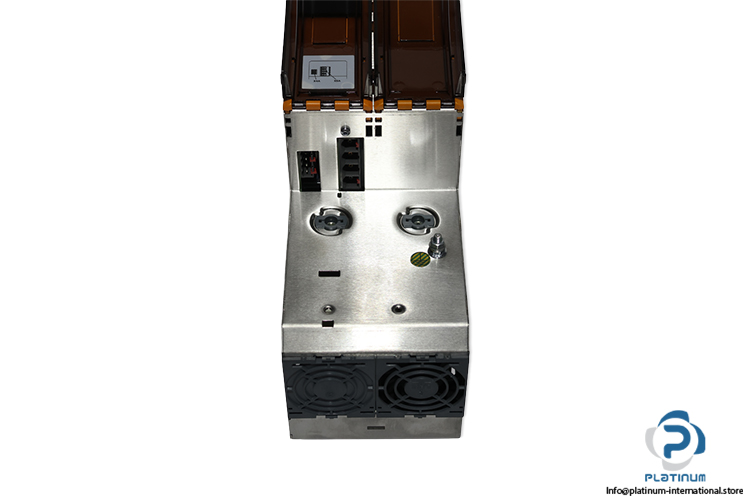

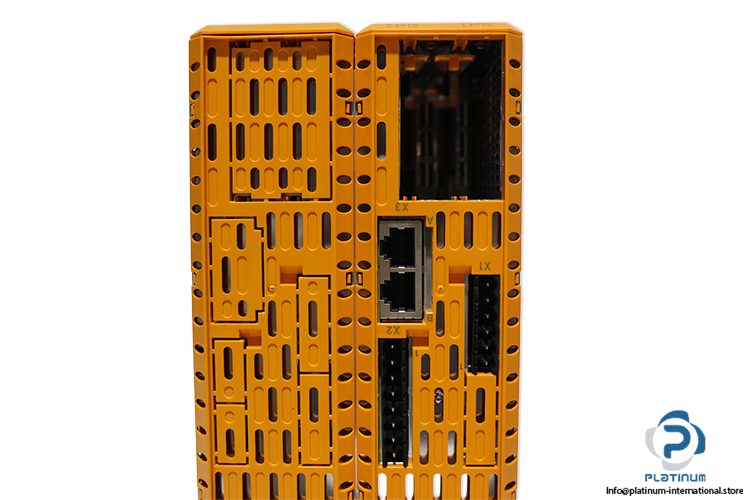

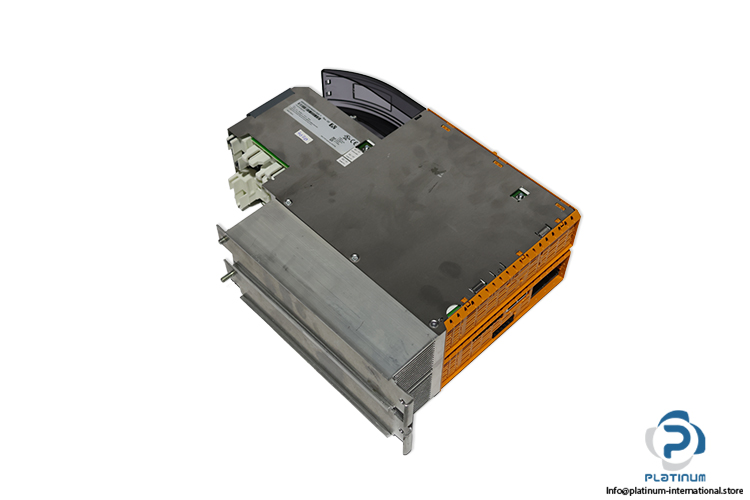

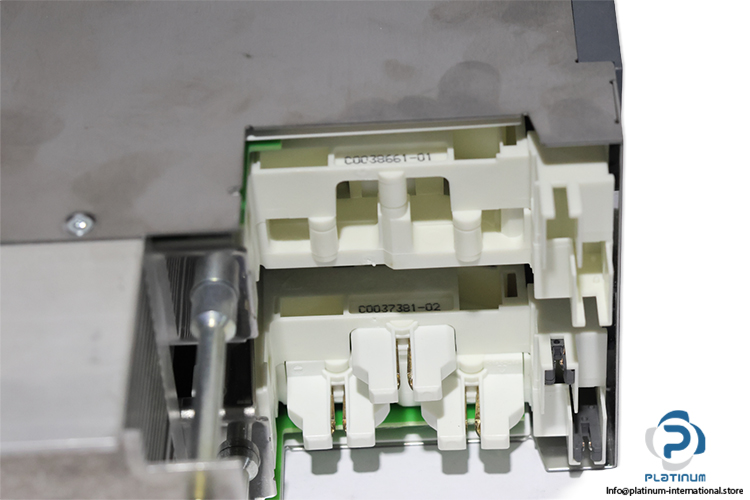

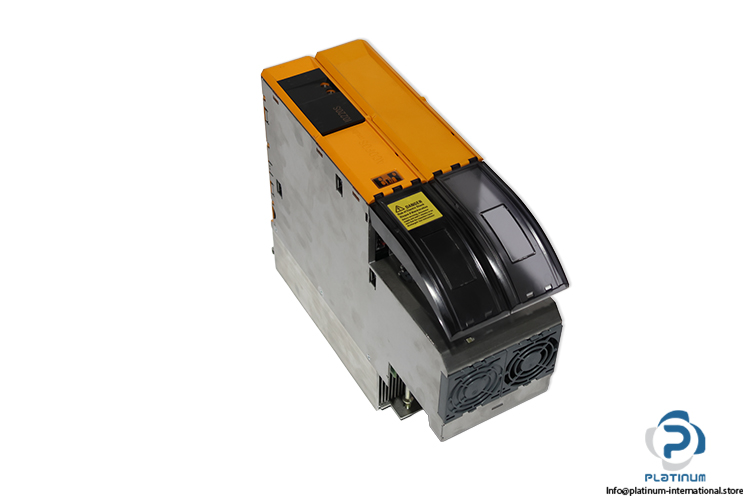

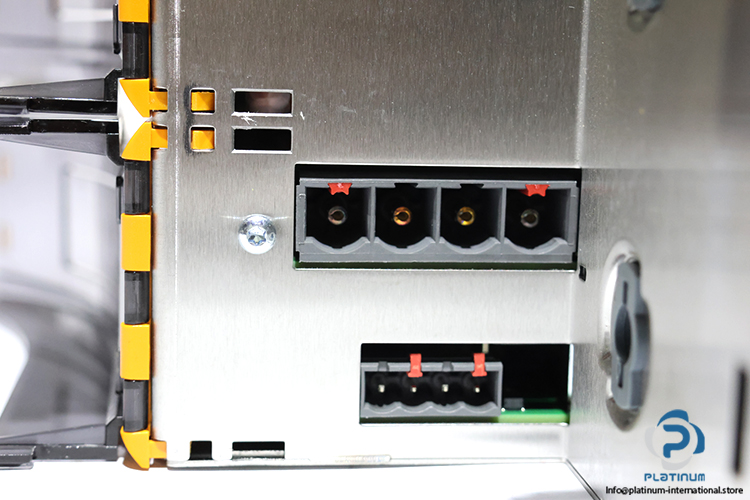

B&R 8-BVI0220HWS0.000-1 ACOPOSmulti single-axis module, 750 VDC, 16.2 kW, designed for industrial motion control and automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

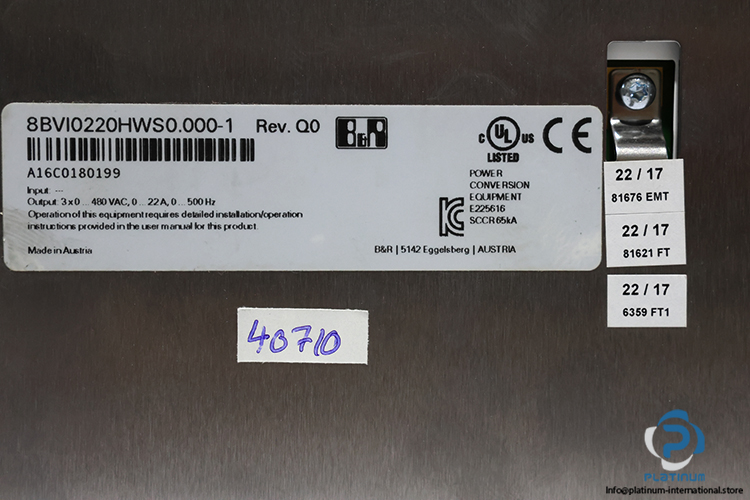

| Code | A16C0180199 |
| family | ACOPOSmulti |
| Rev | Q0 |
| Voltage Nominal | 750 VDC |
| Power dissipation depending on switching frequency | Switching frequency 5 kHz [0.13 * IM² + 5.5 * IM + 40] W, Switching frequency 10 kHz [0.43 * IM² + 3.7 * IM + 110] W, Switching frequency 20 kHz [1.4 * IM² + 1.97 * IM + 230] W |
| Continuous power consumption | 16.2 kW |
| DC bus capacitance | 495 µF |
| Variant | ACOPOSmulti backplane |
| Input voltage | 25 VDC ±1.6% |
| Input capacitance | 32.9 µF |
| Max. power consumption | 20 W + PSLOT1 + PSLOT2 + P24 V Out + PHoldingBrake |
| Output voltage DC bus voltage (UDC) 260 to 315 VDC | 25 VDC (UDC/315) |
| Output voltage DC bus voltage (UDC) 315 to 800 VDC | 24 VDC ±6% |
| Condition | New |
| SKU | 1105006 |
| Weight | 5,15 |
