B&R X67SC4122.L12 SECURITY MODULE

Name: B&amp;R X67SC4122.L12 SECURITY MODULE
SKU: 1064153
Availability: LimitedAvailability

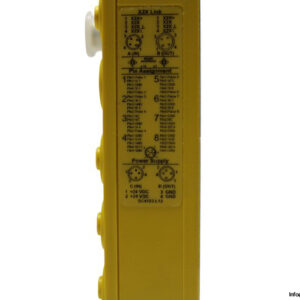

b-r-X67SC4122.L12-security-module-(new)-1

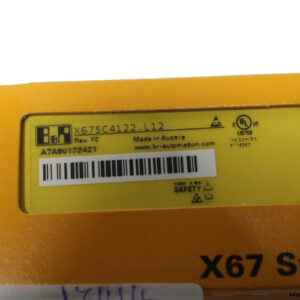

b-r-X67SC4122.L12-security-module-(new)-6

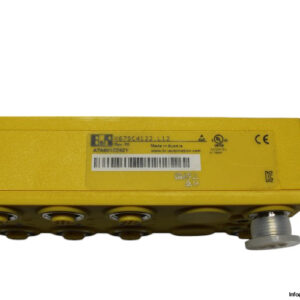

b-r-X67SC4122.L12-security-module-(new)-2

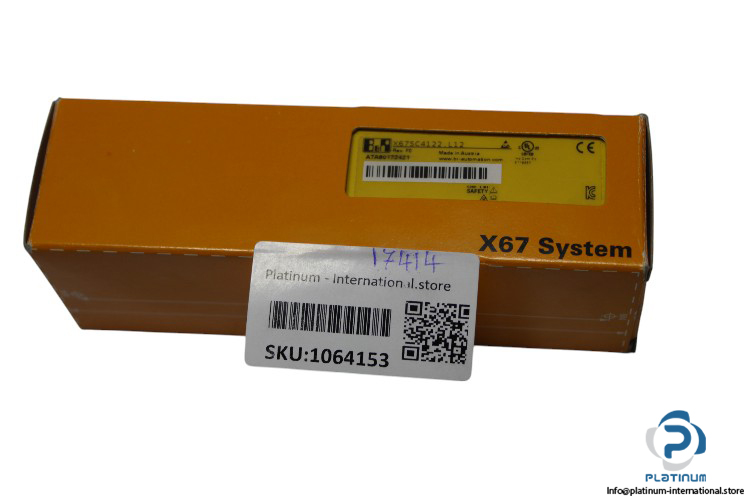

b-r-X67SC4122.L12-security-module-(new)-3

b-r-X67SC4122.L12-security-module-(new)-4

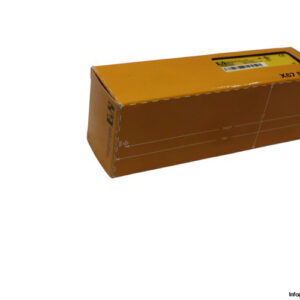

b-r-X67SC4122.L12-security-module-(new)-5

New

Available on request

B&R Automation Security Module X67SC4122L12 with 8 safe digital inputs, 4 safe digital outputs, and 8 pulse outputs. Features IP67 protection, reverse polarity protection, and operates at a temperature range of -40 to 60°C.

Manufacturer

B&R-AUTOMATION

SKU

1064153

B&R Automation Security Module X67SC4122L12

B&R Automation Security Module X67SC4122L12 is a high-performance security module designed for use in industrial applications, ensuring reliable and safe operation. This module offers versatile input/output capabilities, high protection ratings, and robust construction, suitable for a wide range of applications.

Manufacturer: B&R Automation
Type: Security Module
Model: X67SC4122L12
Part No.: A7A60172421
Series: X67
Rev.: F0

Technical Data:

Nominal Voltage: 24 V DC
Voltage Range: 18 to 30 V DC
No. of Digital Inputs (DI): 8 safe digital inputs, sink circuit, 4.6 mA max.
No. of Digital Outputs (DO): 4 safe digital outputs, type B with 2 A, source circuit
No. of Pulse Outputs: 8 pulse outputs Push-Pull
Link Address: X2X
Max. I/O Cycle Time: 1 ms

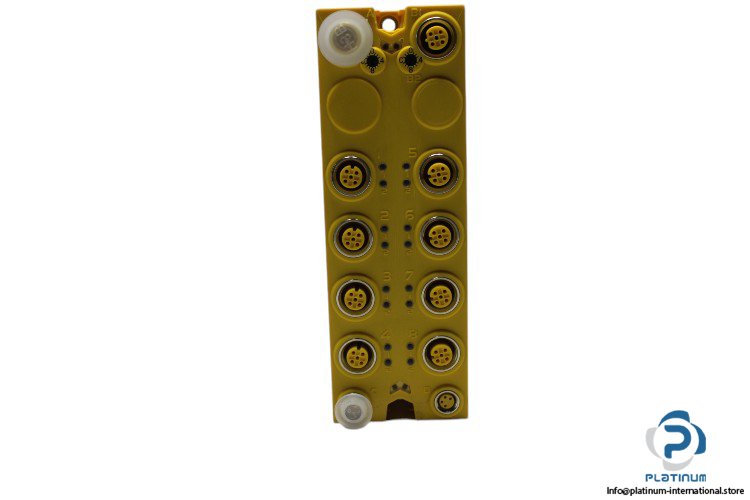

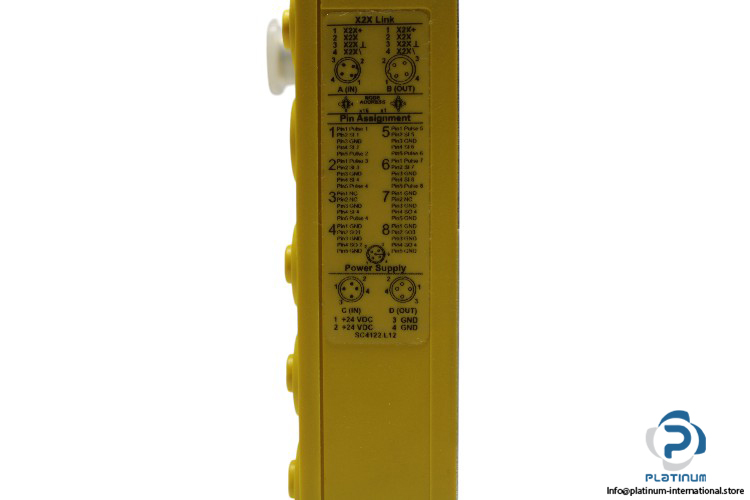

Connection Type: X2X Link: M12, B-coded, Inputs/Outputs: M12, A-coded, I/O, power supply: M8, 4-pin
Protection: Reverse polarity protection
Degree of Protection: IP67
Operation Temperature: -40 to 60°C
Dimensions: 53 x 155 x 42 mm
