B&R X67SC4122.L12 SECURITY MODULE
New
In stock1 unitReady to ship

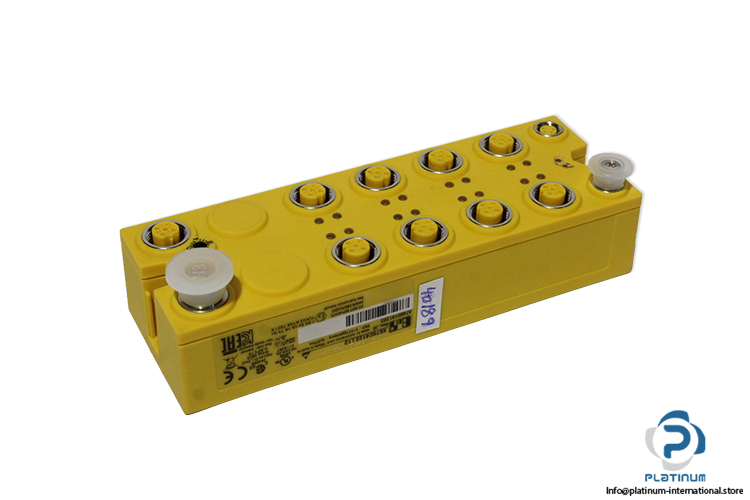

Security Module B&R Automation X67SC4122L12 X67 security module with 8 safe digital inputs, 4 safe digital outputs, X2X Link and IP67 protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | A7A60181203 |
| Series | X67 |
| Rev. | F0 |
| Nominal Voltage | 24 V DC |
| Voltage Range | 18 to 30 V DC |
| No. of Digital Inputs (DI) | 8 safe digital inputs, sink circuit, 4.6 mA max. |
| No. of Digital Outputs (DO) | 4 safe digital outputs, type B with 2 A, source circuit |
| No. of Pulse Outputs | 8 pulse outputs Push-Pull |
| Link Address | X2X |
| Max. I/O Cycle Time | 1 ms |

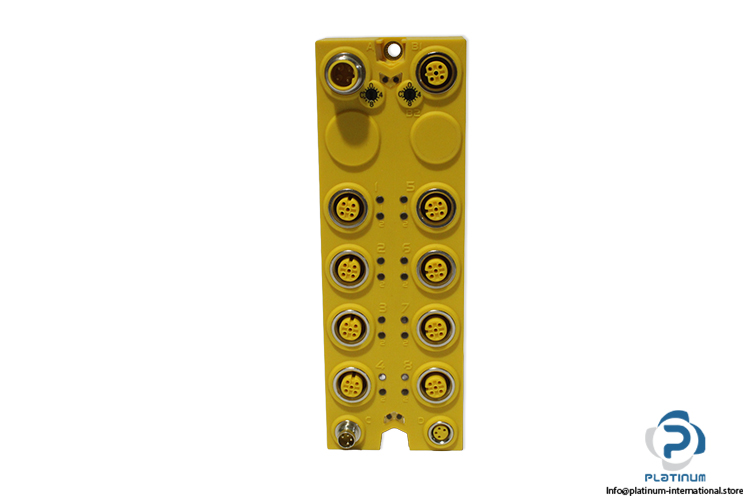

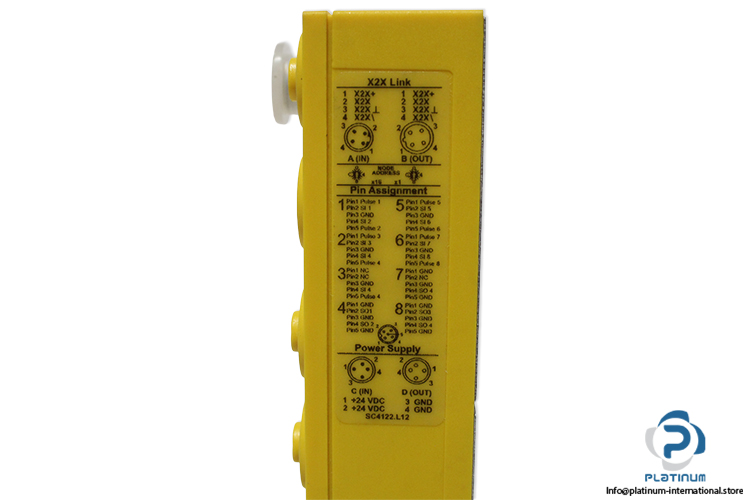

| Connection Type | X2X Link: M12, B-coded, Inputs/Outputs: M12, A-coded, I/O, power supply: M8, 4-pin |
| Protection | Reverse polarity protection |
| Degree of Protection | IP67 |
| Operation Temperature | -40 to 60°C |
| Dimensions | 53 x 155 x 42 mm |
| Explosion proof | EX |
| Stock key | CH001 |
| Condition | New |
| SKU | 1101391 |
| Weight | 0,33 |
