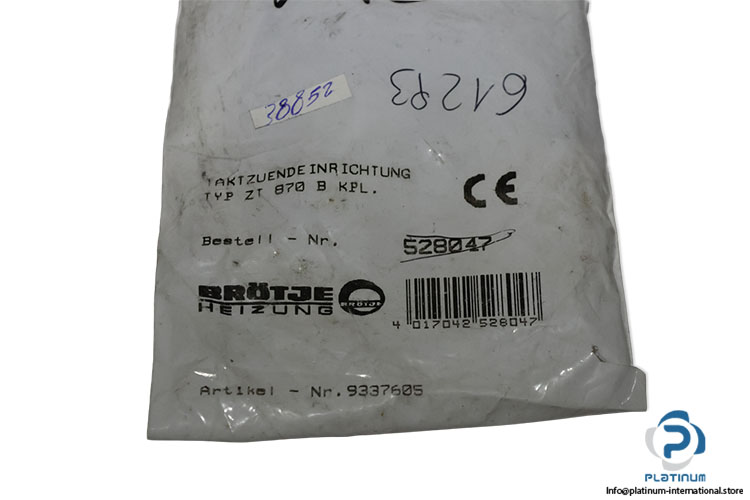

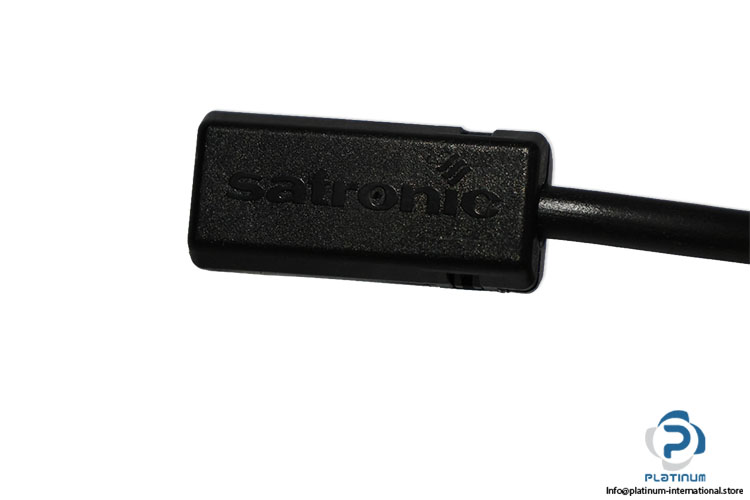

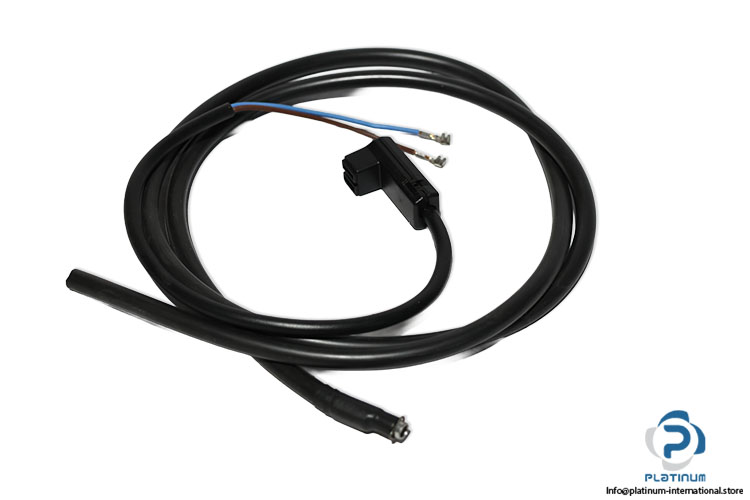

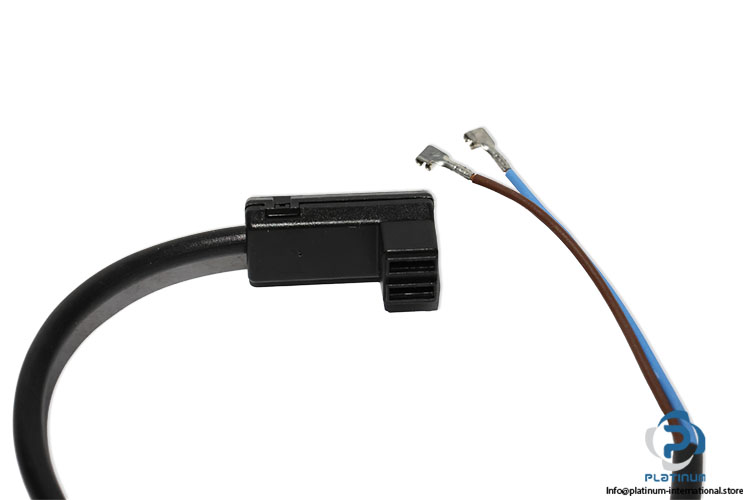

Brotje ZT 870 B KPL Ignition Spark Generator
New
In stock2 unitsReady to ship
Ignition Spark Generator The BROTJE / Satronic ZT 870 B KPL is a 220/240 V ignition spark generator providing 16 kV high-voltage output for reliable burner and combustion system ignition.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ref no. | 528047 |
| Art - Nr. | 9337605 |
| Supply Voltage | 220 / 240 V (-15% to +10%) at 50/60 Hz |
| Power Consumption | 17 mA |
| Ignition Voltage | 16 kV (Amplitude) |
| Ignition Current | 200 mA (Amplitude) |
| Switched-on Time (Duty Cycle) | 50% in 3 minutes (Intermittent operation window) |
| Insulation Rating | IP 40 |
| Spark Gap Compatibility | 2 mm to 5 mm |
| High Voltage Plug Connection | Diameter of 4 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101100 |
| Weight | 0,09 |
