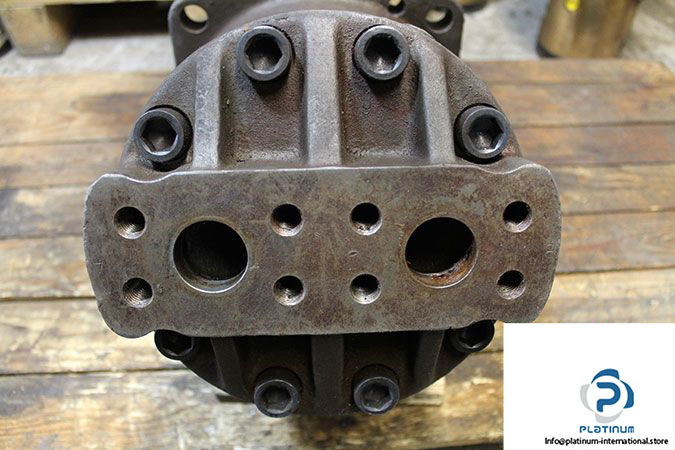

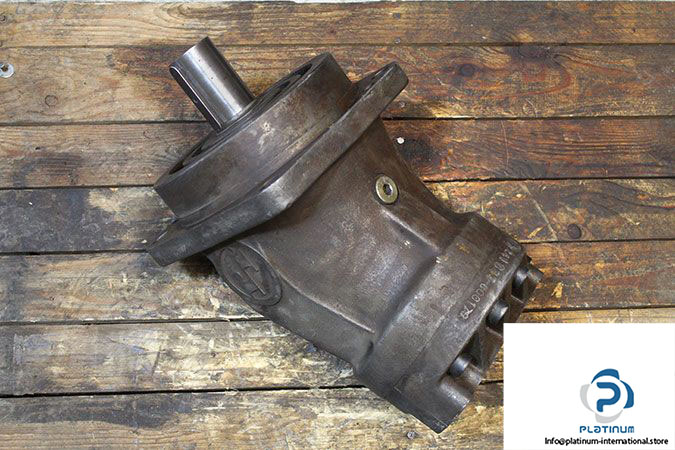

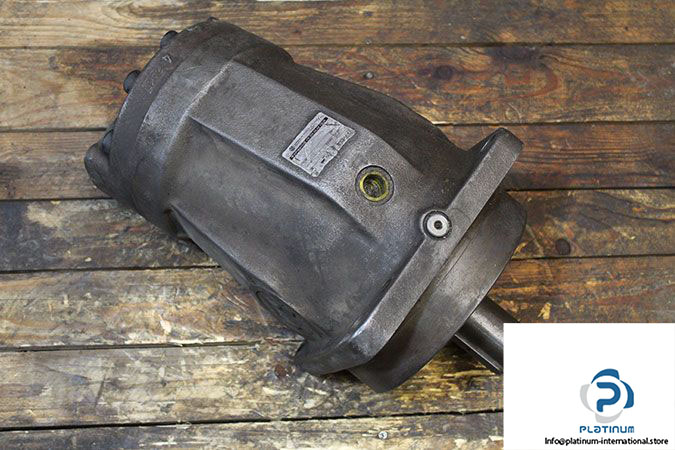

Brueninghaus Hydraulik A2FM250/60W-PPB01 Axial Piston Fixed Motor

Manufacturer: BRUENINGHAUS HYDRAULIK / Rexroth

Type: Axial Piston Fixed Motor

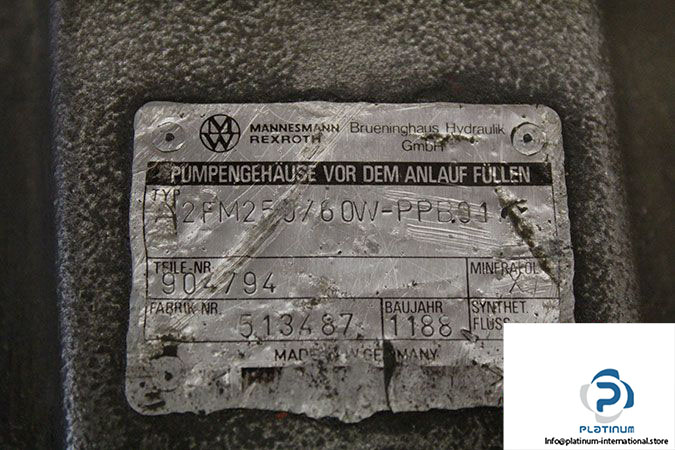

Model: A2FM250/60W-PPB01

Size: 250

Displacement: 250 cm³

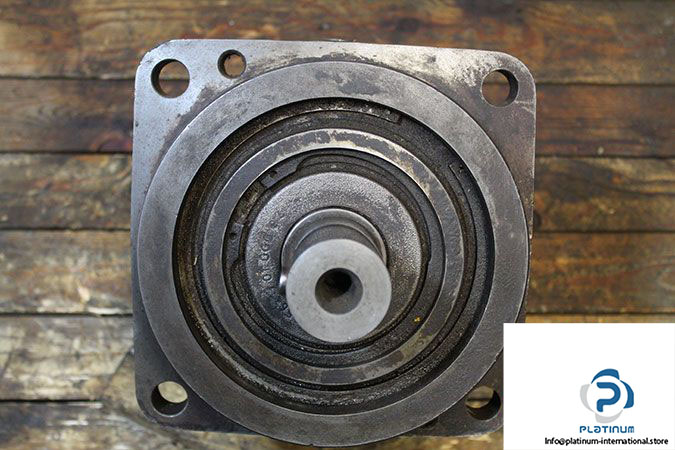

Mounting Flange: ISO 3019-2 4-hole

Direction of Rotation: Viewed on drive shaft, bidirectional

Pressure Max: 400 bar

Speed Max: 2700 rpm

Shaft Diameter: 50 mm

Flow Rate: 675 l/m

Torque at 350 bar: 1393 Nm

Viscosity Range: 16 ….  36 mm²/s

Weight: 74.1 Kg
