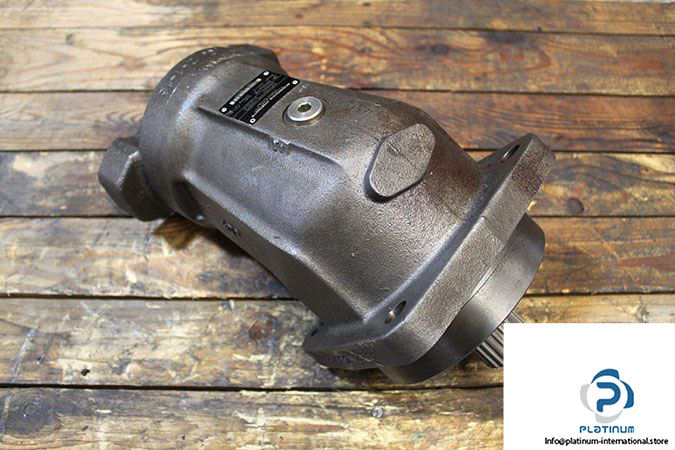

BRUENINGHAUS HYDROMATIK A2FM125/61W-VAB010 Axial Piston Fixed Motor

Manufacturer: BRUENINGHAUS HYDROMATIK / Rexroth

Type: Axial Piston Fixed Motor

Model: A2FM125/61W-VAB010

Size: 125

Displacement: 125 cm³

Mounting Flange: ISO 3019-2 4-hole

Direction of Rotation: Viewed on drive shaft, bidirectional

Pressure Max: 450 bar

Speed: 4000 rpm

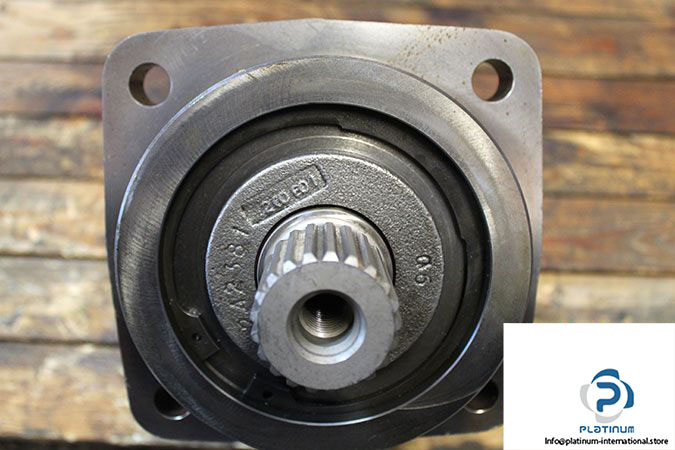

Shaft Diameter: 45 mm

No. of Teeth: 21

Flow Rate: 500 l/m

Torque at 400 bar: 796 Nm

Viscosity Range: 16 ….  36 mm²/s

Weight: 32 Kg
