B&R X20CA0E61.00050 ETHERNET CONNECTION CABLE
New
In stock20 unitsReady to ship
POWERLINK/Ethernet Connection Cable

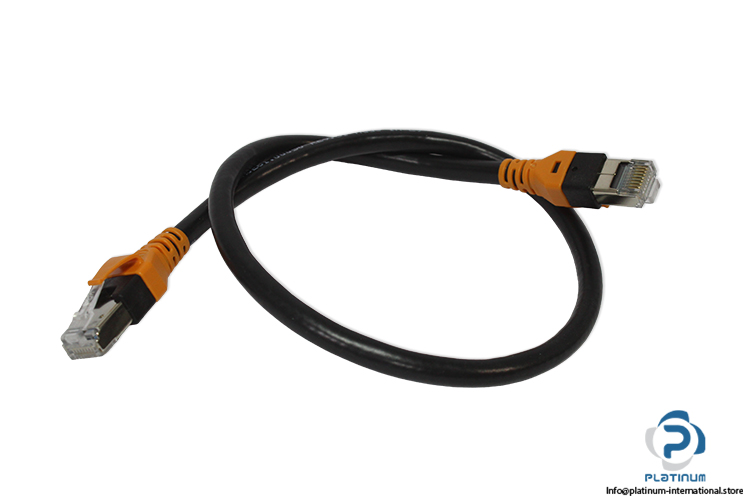

B&R X20CA0E61.00050 industrial Ethernet cable, 0.5 m length with RJ45 connectors, Cat 5e Class D, shielded construction, and IP65 cable protection for automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
B&R X20CA0E61.00050 POWERLINK/Ethernet Connection Cable
The B&R X20CA0E61.00050 is a high-performance POWERLINK/Ethernet connection cable designed for reliable industrial communication. Engineered for demanding automation environments, it supports high-speed data transmission and robust shielding for stable network performance.
Manufacturer: B&R
Type: POWERLINK/Ethernet Connection Cable
Model: X20CA0E61.00050

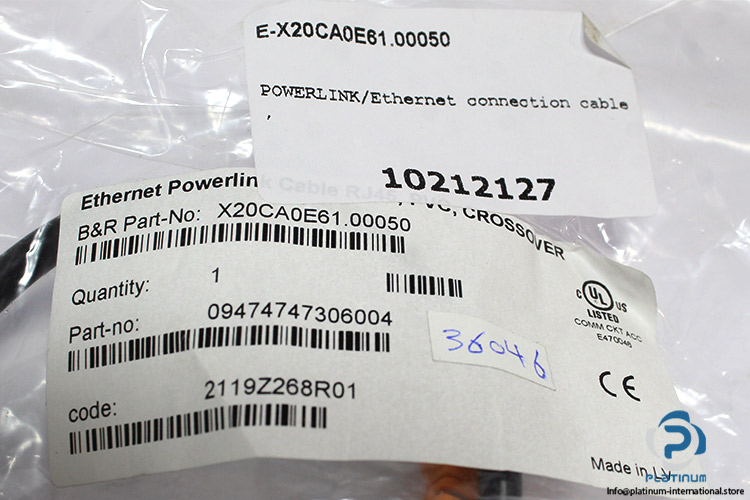

Part No.: 09474747306004 / 10212127
Code: 2119Z268R01
Cable Cross Section:
Cable Construction:
Wires:
Blue-white with blue, orange-white with orange, green-white with green, brown-white with brown
Electrical Properties:
Operating Conditions:
Degree of Protection per EN 60529:
Ambient Conditions “ Temperature:
Mechanical Properties:
| Cable Length | 0.5 m |
| Connector 1 | RJ45 |
| Connector 2 | RJ45 |
| AWG | 4x 2x 26 AWG |
| mm² | 4x 2x 0.16 mm² |
| Inner Jacket | Halogen-free, flame-retardant |
| Outer Jacket Material | PVC |
| Color | Black (RAL 9005) |
| Wire Insulation | Polyethylene (PE) |
| Wire Colors | Blue-white, blue, orange-white, orange, green-white, green, brown-white, brown |
| Shield | Overlapping aluminum-clad foil, tinned copper braiding, ‰¥85% coverage |
| Stranding | Pair stranding “ 4 pairs |
| Operating Voltage | Max. 125 V |
| Test Voltage Wire “ Wire | 1000 V |
| Test Voltage Wire “ Shield | 1000 V |
| Conductor Resistance | ‰¤145 Ω/km at 20°C |
| Transfer Properties | Category 5e / Class D up to 100 MHz per ISO/IEC 11801 |
| Transfer Rate | 10/100/1000 Mbit/s |
| Insulation Resistance | ‰¥5 GΩ/km at 20°C |
| Cables | IP65 |
| RJ45 Connector | IP20, only when properly connected |
| Transport | -40 to 80°C |
| Fixed Installation | -40 to 80°C |
| Flexible Installation | -10 to 60°C |
| Diameter | 6.7 mm ±0.2 mm |
