B&R X67CA0P00.0005 POWER CABLE
Power Cable

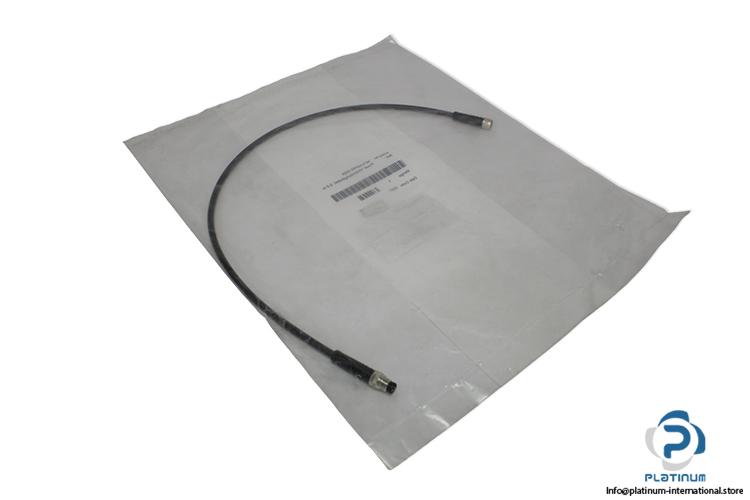

B&R X67CA0P00.0005 power cable, 0.5 m length, 4-pin connectors, PUR jacket, IP67 protection, designed for X2X and X20 I/O systems.B&R X67CA0P00.0005 Power Cable
The B&R X67CA0P00.0005 is a high-quality power cable from the X67 series, designed for reliable power transmission in X2X automation systems. Engineered with durable polyurethane (PUR) outer jacket and fine stranded copper conductors, this cable ensures dependable performance in industrial environments.
Manufacturer: B&R
Type: Power Cable
Model: X67CA0P00.0005
Code: E- X67CA0P00.0010
Series: X67
Range: X2X
Cable Cross Section:
Cable Construction:
Outer Jacket:
Wires:
Electrical Properties:
Operating Conditions:
Degree of Protection per EN 60529:
Ambient Conditions “ Temperature:
Mechanical Properties:
Bend Radius:
Drag Chain Data:
I/O Systems:
X20 System
Coated X20 Systems
| Cable Length | 0.5 m |
| Connector 1 | 4-pins |
| Connector 2 | 4-pins |
| AWG | 4x 20 AWG |
| mm² | 4x 0.5 mm² |
| Cable Shield | Not shielded |
| Material | Polyurethane (PUR) |
| Color | Black |
| Wire Insulation | Polypropylene (PP) 9Y |
| Wire Colors | Brown, Black, Blue, White |
| Fine Stranded Wire | (42x 0.1 mm / 42x 38 AWG), Class 6 |
| Stranding | Not stranded |
| Nominal Current | Max. 4 A per EN / Contact at 40°C |
| Max. 3 A per UL / Contact Operating Voltage | Max. 60 V |
| Degree of Insulation | Category II per IEC 61076-2 |
| Conductor Resistance | ‰¤57 Ω/km |
| Insulation Resistance | ‰¥100 MΩ |
| Connector/Coupling | IP67, only when screwed in |
| Transport | -40 to 90°C |
| Fixed Installation | -30 to 90°C |
| Flexible Installation | -25 to 60°C |
| Length | 0.5 m |
| Diameter | 5 mm ±0.2 mm |
| Fixed Installation | ‰¥5x outer diameter |
| Flexible Installation | ‰¥10x outer diameter |
| Acceleration | Max. 5 m/s² |
| Flex Cycles | 5 Million |
| Velocity | Max. 3.3 m/s |
