B&R X67CA0P00.0015 POWER CABLE
New
In stock36 unitsReady to ship
Power Cable

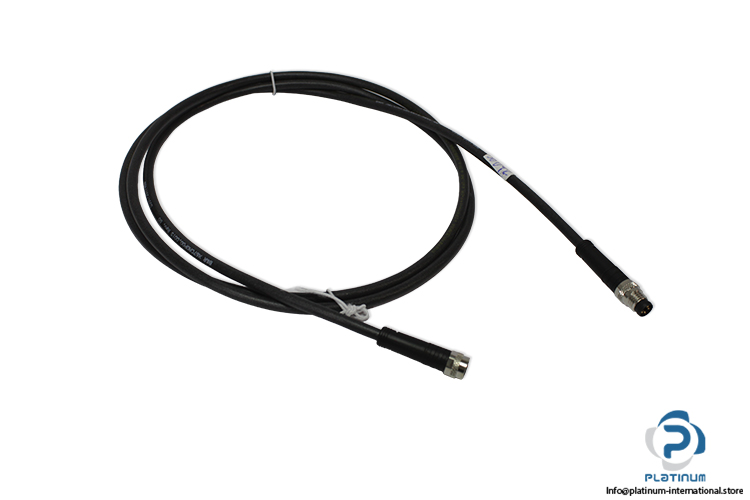

B&R X67CA0P00.0015 power cable, 1.5 m length, 4-pin female to 4-pin male connectors, PUR jacket, IP67 protection, and rated up to 60 V for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
B&R X67CA0P00.0015 Power Cable
The B&R X67CA0P00.0015 is a high-quality industrial power cable from the X67 series, engineered for reliable power transmission in automation systems. Designed with durable PUR outer jacket material and precision fine-stranded copper conductors, it ensures stable electrical performance in both fixed and flexible installations.
Manufacturer: B&R
Type: Power Cable

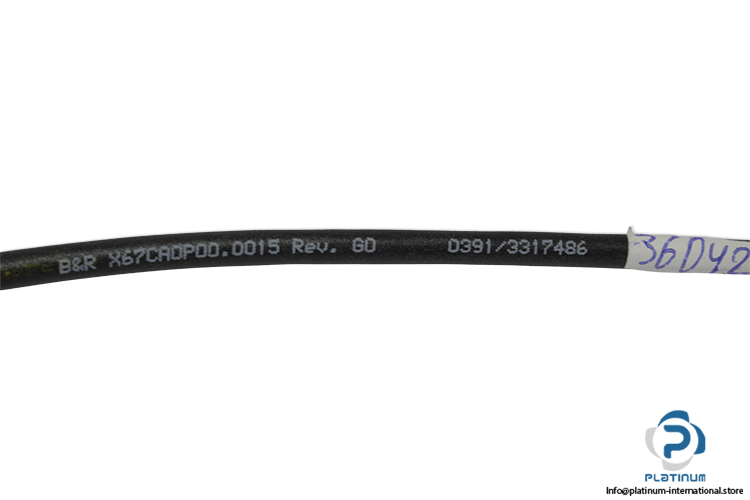

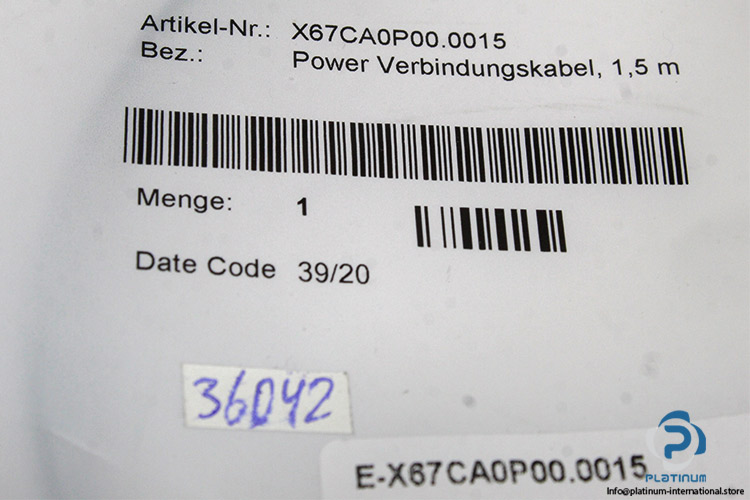

Model: X67CA0P00.0015
Code: 0391/3317486
Series: X67
Revision: G0
Cable Cross Section:
Cable Construction:
Outer Jacket:
Wires:
Electrical Properties:
Degree Of Protection Per EN 60529:
Ambient Conditions “ Temperature:
Mechanical Properties:
Bend Radius:
Drag Chain Data:
| Cable Length | 1.5 m |

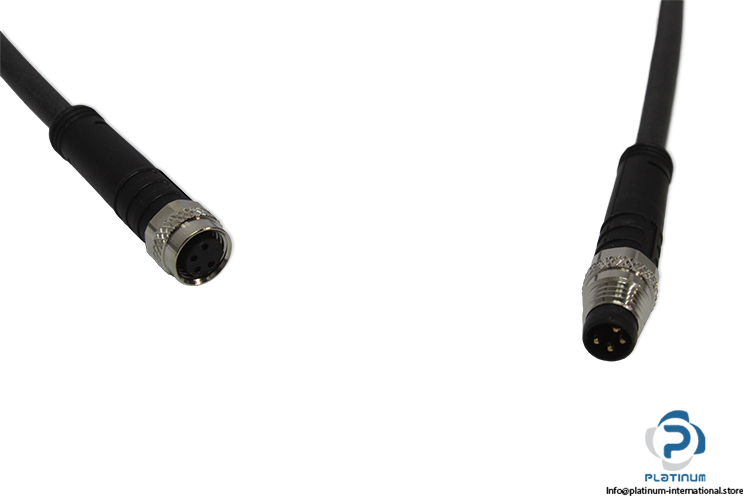

| Connector 1 | 4-Pins Female |
| Connector 2 | 4-Pins Male |
| AWG | 4x 20 AWG |
| mm² | 4x 0.5 mm² |
| Cable Shield | Not Shielded |
| Material | Polyurethane (PUR) |
| Color | Black |
| Wire Insulation | Polypropylene (PP) 9Y |
| Wire Colors | Brown, Black, Blue, White |
| Fine Stranded Wire | 42x 0.1 mm / 42x 38 AWG, Class 6 |
| Stranding | Not Stranded |
| Nominal Current | Max. 4 A per EN / Contact at 40°C |
| Nominal Current | Max. 3 A per UL / Contact |
| Operating Voltage | Max. 60 V |
| Degree Of Insulation | Category II per IEC 61076-2 |
| Conductor Resistance | ‰¤57 Ω/km |
| Insulation Resistance | ‰¥100 MΩ |
| Connector/Coupling | IP67, Only When Screwed In |
| Transport | -40 To 90°C |
| Fixed Installation | -30 To 90°C |
| Flexible Installation | -25 To 60°C |
| Length | 1.5 m |
| Diameter | 5 mm ±0.2 mm |
| Fixed Installation | ‰¥5x Outer Diameter |
| Flexible Installation | ‰¥10x Outer Diameter |
| Acceleration | Max. 5 m/s² |
| Flex Cycles | 5 Million |
| Velocity | Max. 3.3 m/s |
