B&R X67CA0P00.0050 POWER CABLE
New
In stock8 unitsReady to ship
Power Connection Cable
B&R X67CA0P00.0050 0.5 m power connection cable with 4-pin male to 4-pin female connectors, PUR jacket, and IP67 protection for industrial automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

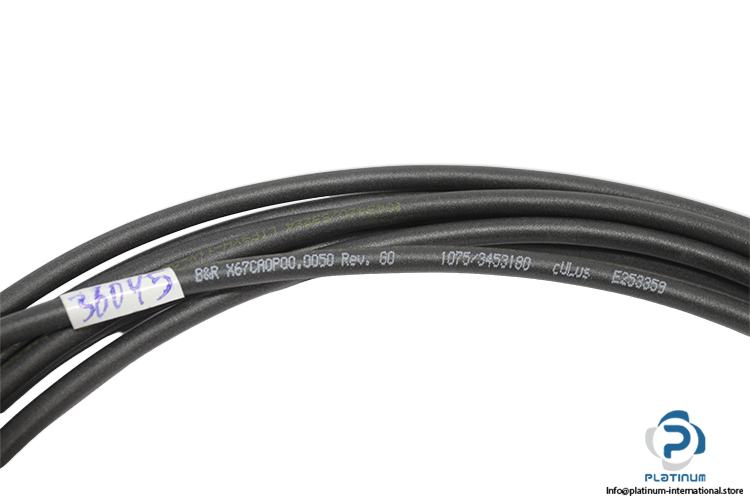

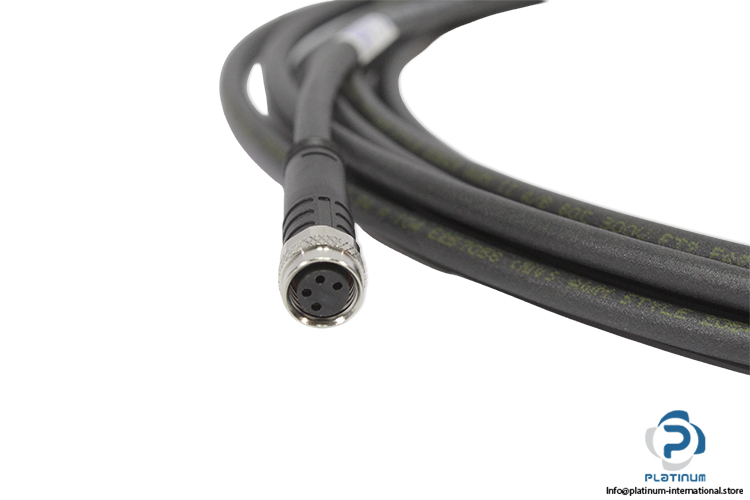

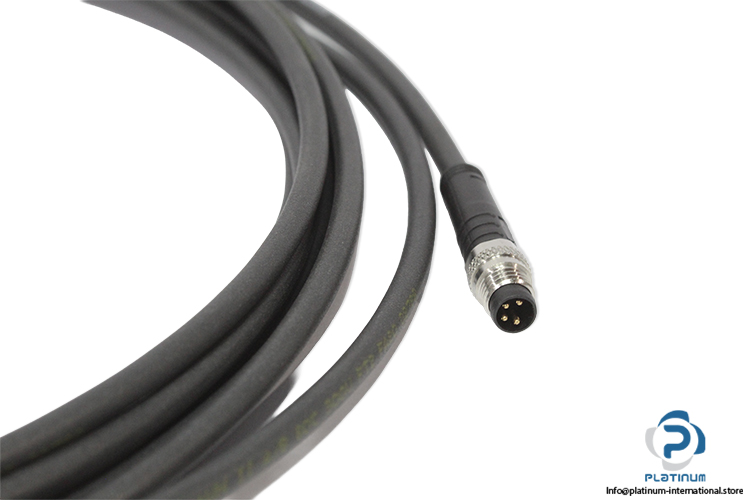

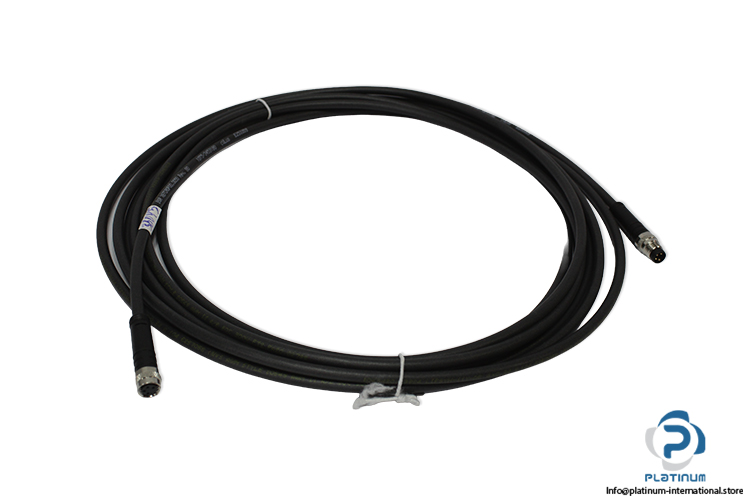

B&R X67CA0P00.0050 Power Connection Cable
The B&R X67CA0P00.0050 is a high-quality industrial power connection cable designed for reliable power transmission in automation systems. With durable PUR outer jacket construction and IP67 protection when properly connected, it ensures stable performance in demanding industrial environments.
Manufacturer: B&R
Type: Power Connection Cable
Model: X67CA0P00.0050
Part No.: 1075/3453180
Cable Cross Section:
Cable Construction:
Wires:
Electrical Properties:
Degree Of Protection Per EN 60529:
Ambient Conditions “ Temperature:
| Cable Length | 0.5 m |
| Connector 1 | 4-Pins, Male |
| Connector 2 | 4-Pins, Female |
| Cable Info | Rev G0, E253359 |
| AWG | 4 x 20 AWG |
| mm² | 4 x 0.5 mm² |
| Cable Shield | Not Shielded |
| Outer Jacket Material | Polyurethane (PUR) |
| Outer Jacket Color | Black |
| Wire Insulation | Polypropylene (PP) 9Y |
| Wire Colors | Brown, Black, Blue, White |
| Conductor Type | Uncoated Copper ETP1 |
| Wire Structure | Fine Stranded Wire (42 x 0.1 mm / 42 x 38 AWG), Class 6 |
| Stranding | Not Stranded |
| Nominal Current | Max. 4 A per EN / Contact at 40°C |
| Max. 3 A per UL / Contact Operating Voltage | Max. 60 V |
| Degree Of Insulation | Category II per IEC 61076-2 |
| Conductor Resistance | ‰¤ 57 Ω/km |
| Insulation Resistance | ‰¥ 100 MΩ |
| Connector/Coupling | IP67 (Only When Screwed In) |
| Transport | -40 to 90°C |
| Fixed Installation | -30 to 90°C |
| Flexible Installation | -25 to 60°C |
