B&R X67CA0P20.0150 POWER CABLE
New
In stock4 unitsReady to ship
Power Cable
B&R X67CA0P20.0150 industrial power cable, 15 m length, 4-pins to 4-wires male connection, PUR jacket, 4 x 20 AWG conductors, and IP67 protection for reliable automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

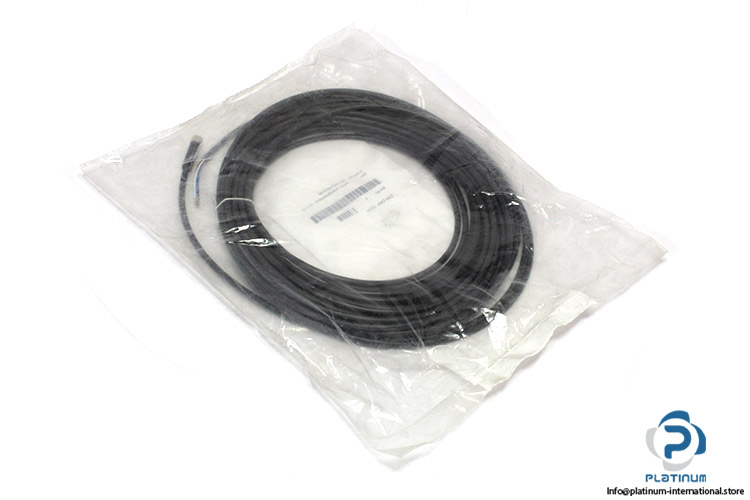

B&R X67CA0P20.0150 Power Cable
The B&R X67CA0P20.0150 is an industrial-grade power cable designed for reliable power transmission in automation and control systems. Built with durable PUR outer jacket material and fine stranded copper conductors, this cable ensures stable electrical performance in demanding environments.
Manufacturer: B&R
Type: Power Cable
Model: X67CA0P20.0150
Cable Cross Section:
Certifications:
Industrial Control Equipment
Cable Construction:
Outer Jacket:
Wires:
Electrical Properties:
Operating Conditions:
Degree of Protection per EN 60529:
Ambient Conditions “ Temperature:
| Cable Length | 15 m |
| Connector 1 | 4-pins |
| Connector 2 | 4-wires / Male |
| AWG | 4 x 20 AWG |
| mm² | 4 x 0.5 mm² |
| CE | Yes |
| UL | UL E115267 |
| Cable Shield | Not Shielded |
| Material | Polyurethane (PUR) |
| Color | Black |
| Wire Insulation | Polypropylene (PP) 9Y |
| Wire Colors | Brown, Black, Blue, White |
| Fine Stranded Wire (42 x 0.1 mm / 42 x 38 AWG), Class 6 Stranding | Not Stranded |
| Nominal Current | Max. 4 A per EN / Contact at 40°C |
| Max. 3 A per UL / Contact Operating Voltage | Max. 60 V |
| Degree of Insulation | Category II per IEC 61076-2 |
| Conductor Resistance | ‰¤ 57 Ω/km |
| Insulation Resistance | ‰¥ 100 MΩ |
| Connector/Coupling | IP67 (Only When Screwed In) |
| Transport | -40 to 90°C |
| Fixed Installation | -30 to 90°C |
| Flexible Installation | -25 to 60°C |
