B&R X67CA0X01.0015 LINK CABLE
New
In stock14 unitsReady to ship
Link Connection Cable
B&R X67CA0X01.0015 link connection cable, 1.5 m length, IP67 protection, PUR halogen-free sheathing, designed for X2X Link system module networking.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

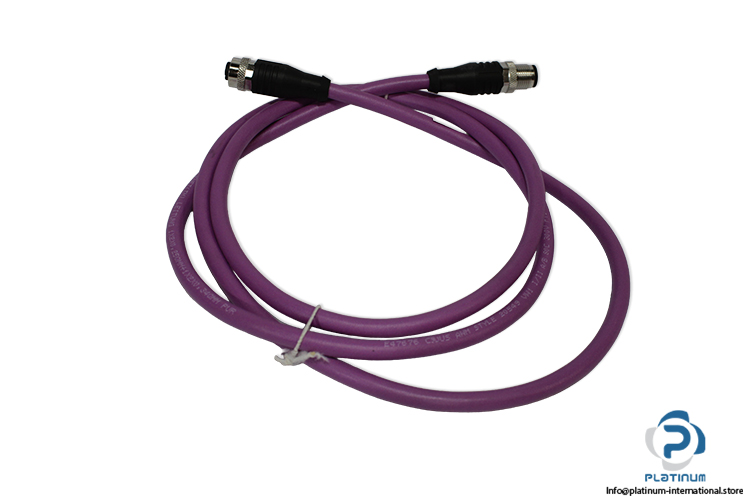

B&R X67CA0X01.0015 Link Connection Cable
The B&R X67CA0X01.0015 is a high-quality link connection cable designed for reliable communication within X2X Link system networks. Engineered for industrial environments, it features durable PUR outer sheathing, full shielding, and IP67 protection for secure and stable module-to-module networking.
Manufacturer: B&R
Type: Link Connection Cable
Model: X67CA0X01.0015
Code: 2165/3968167
Series: X67
Range: X2X
Revision: H0
| Cable Length | 1.5 m |

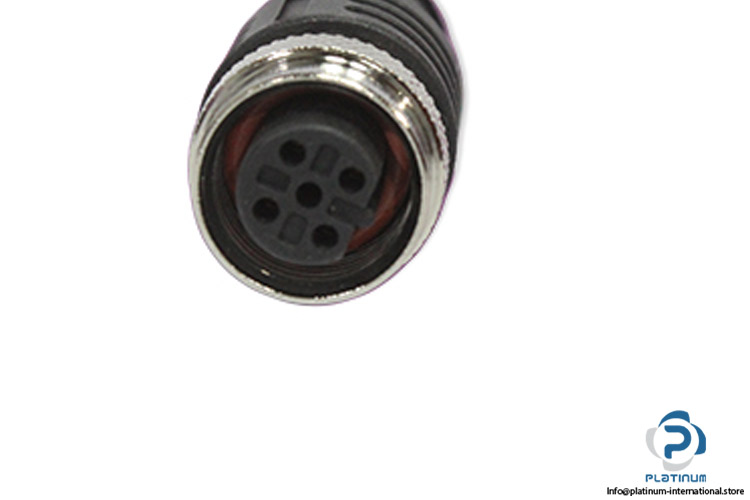

| Connector 1 | 5-Pins Female |

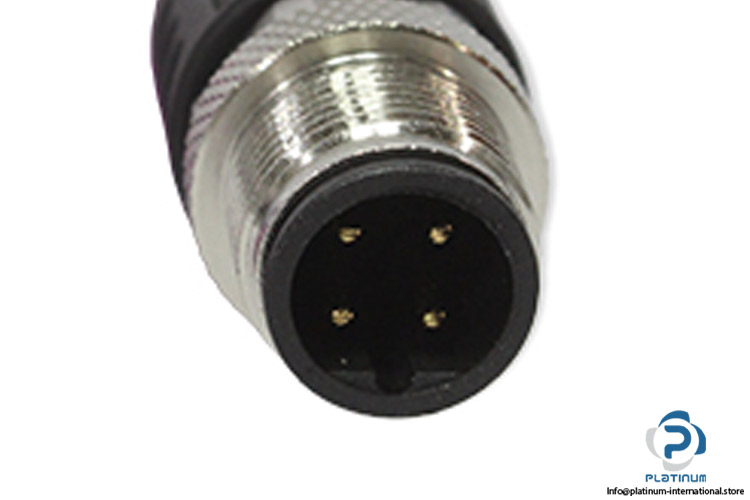

| Connector 2 | 4-Pins Male |
| Cable Stranding | With Additional Wire 22 AWG/19 |
| Entire Shielding | Tinned Cu Filaments |
| Outer Sheathing Material | PUR Mixture |
| Characteristics | Halogen-Free |
| Degree Of Insulation | Category II According To IEC 60664-1 |
| Installed Voltage | Max. 125 V AC/DC |
| Rated Current | Max. 4 A / Contact |
| Protection Type (Plug/Coupling) | IP67 |
| Temperature Range (Fixed Installation) | -25 To +80°C |
| Suitable For Interface | X2X Link System Networking Between Modules |
