B&R X67CA0X21.0050 LINK CABLE
New
In stock1 unitReady to ship
LINK Connection Cable
B&R X67CA0X21.0050 LINK connection cable, 5 m length, IP67 rated when connected, designed for X67 series and X2X automation systems with high shielding and industrial durability.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

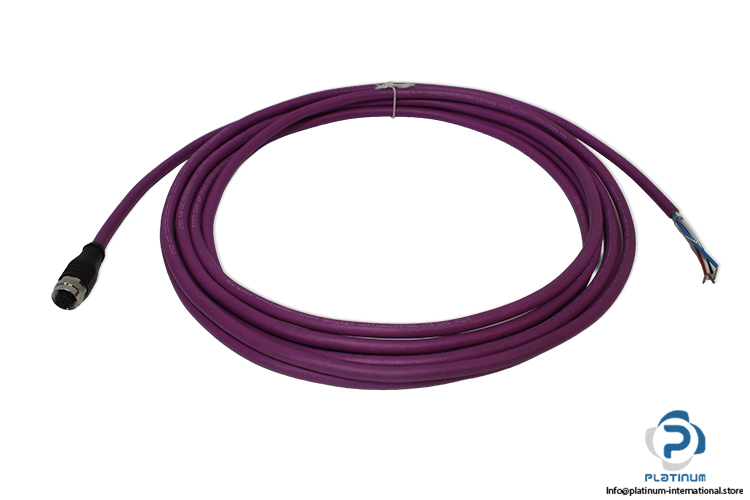

B&R X67CA0X21.0050 LINK Connection Cable
The B&R X67CA0X21.0050 is a high-performance LINK connection cable designed for reliable communication and power transmission within X67 series automation systems. Built for industrial environments, it features robust shielding, high mechanical durability, and IP67 protection when properly connected.
Manufacturer: B&R
Type: LINK Connection Cable
Model: X67CA0X21.0050
Part No.: 10227655
Code: E- X67CA0X01.0050
Series: X67
Range: X2X
Cable Cross Section Data Lines:
Power Supply Lines:
Outer Jacket:
Wires:
Wire Colors:
Wire Insulation:
Conductor Resistance:
Ambient Temperature:
Bend Radius:
Drag Chain Data:
| Cable Length | 5 m |

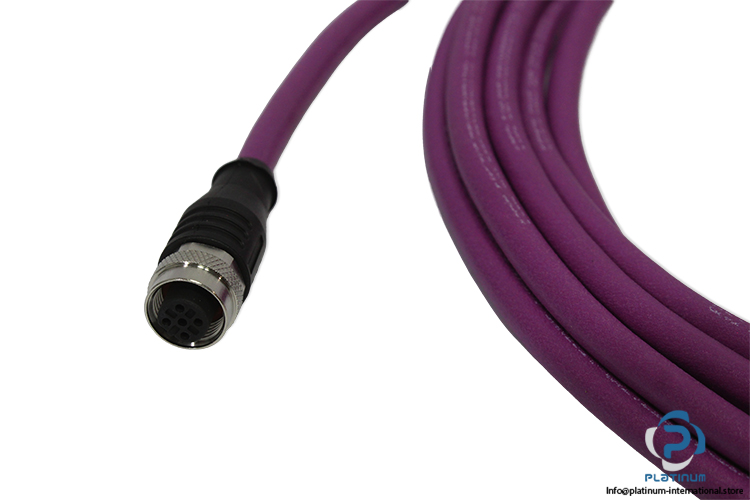

| Connector 1 | 5-pins | Female |
| Connector 2 | 4-Wire | Male |
| AWG | 2x 24 AWG |
| mm² | 2x 0.25 mm² |
| AWG | 2x 22 AWG |
| mm² | 2x 0.34 mm² |
| Cable Construction Signal Line Shield | Pair shielding with aluminum foil |
| Stranding | Twisted-pair wires |
| Cable Stranding | 0.35 mm² (22 AWG) with filler |
| Cable Shield | Tinned copper braiding, coverage >85% |
| Material | Thermoplastic polyurethane (TPU) |
| Color | Violet |
| Data line | Fine stranded wire (19x 0.13 mm) |
| Supply line | Fine stranded wire (19x 0.15 mm) |

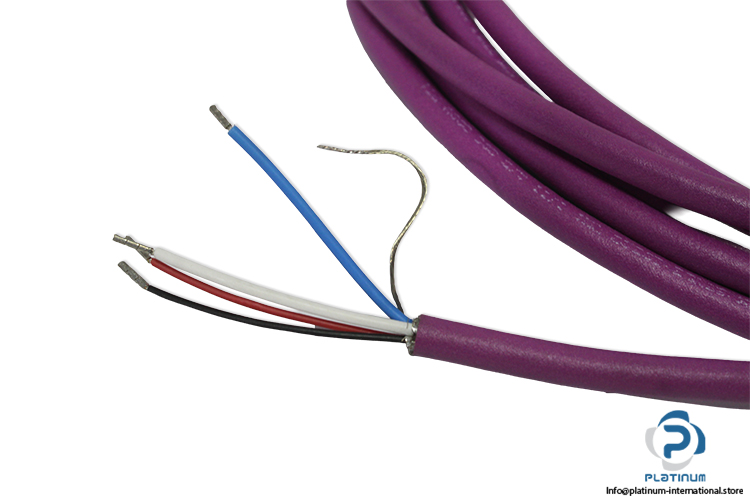

| Data lines | Blue, White |
| Power supply lines | Red, Black |
| Data lines | Cell polyethylene (PE) |
| Power supply lines | Polypropylene (PP) |
| Electrical Properties Rated Voltage | 250 V |
| Nominal Current | Max. 4 A / Contact at 40°C |
| Operating Voltage | Max. 250 V |
| Degree of Insulation | Category II per IEC 61076-2 |
| Data line | ‰¤78 Ω/km |
| Supply line | ‰¤55 Ω/km |
| Insulation Resistance | ‰¥100 MΩ |
| Operating Conditions Degree of Protection (EN 60529) | IP67 (Connector/Coupling, only when screwed in) |
| Transport | -40 to 80°C |
| Fixed Installation | -40 to 80°C |
| Flexible Installation | -25 to 60°C |
| Mechanical Properties Length | 5 m |
| Diameter | 6.9 mm ±0.3 mm |
| Fixed Installation | ‰¥5x outer diameter |
| Flexible Installation | ‰¥15x outer diameter |
| Acceleration | Max. 4 m/s² |
| Flex Cycles | Min. 2 million |
| Velocity | Max. 3 m/s |
