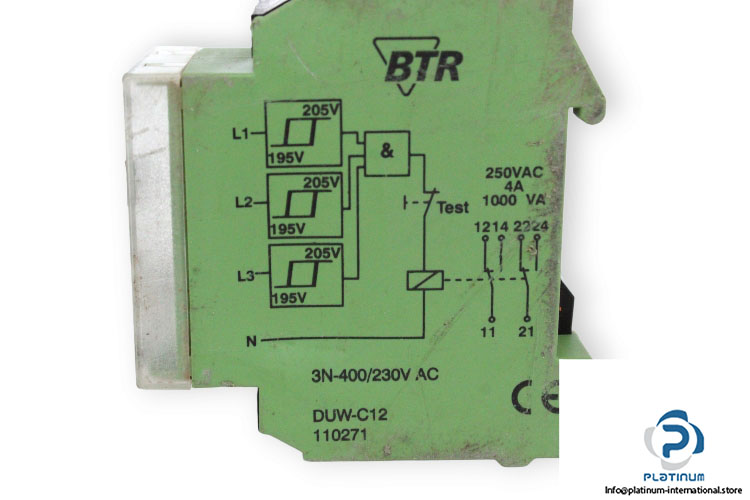

BTR DUW-C12 Phase Monitoring Relay

Manufacture: Btr
Type: Phase Monitoring Relay
Model: DUWC12
Part No.: 110271

Supply voltage: 400/230 V AC-3 phase
Insulation rating voltage: 250 V AC
Nominal consumption power: 16 VA
Dropout voltage: <85% of supply voltage
Rated surge voltage: 4 Kv
Pollution degree: 2
Output: 2 potential-free changeover contacts
Contact rating: 250 V AC,4 A,1000 VA
Material: self-extinguishing plastic
Ambient temperature: -25 … +55 °C
Degree of protection: IP20
Dimensions (WxHxD): 35 x 71 x 65 mm
