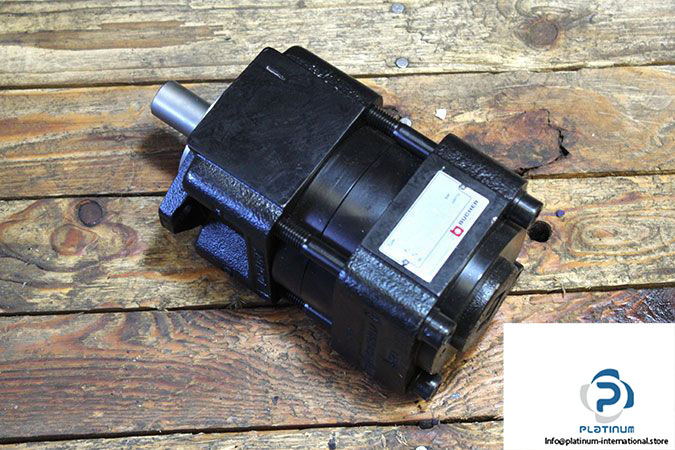

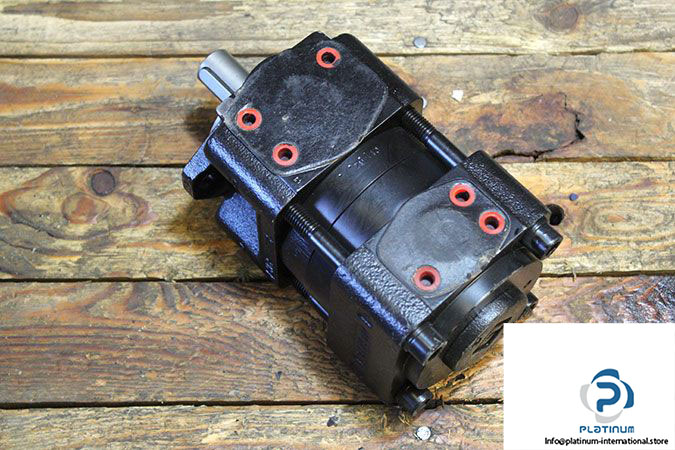

Bucher QT33-010R Internal Gear Pump

Manufacturer: Bucher

Type: Internal Gear Pump

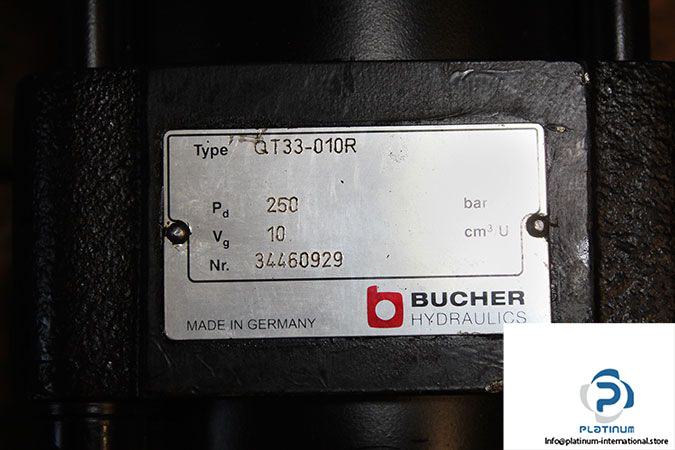

Model: QT33-010R

Size: 10

Displacement: 10 cm³

Output flow at 1500 rpm: 14.5 l/min

Nominal Pressure: 250 bar

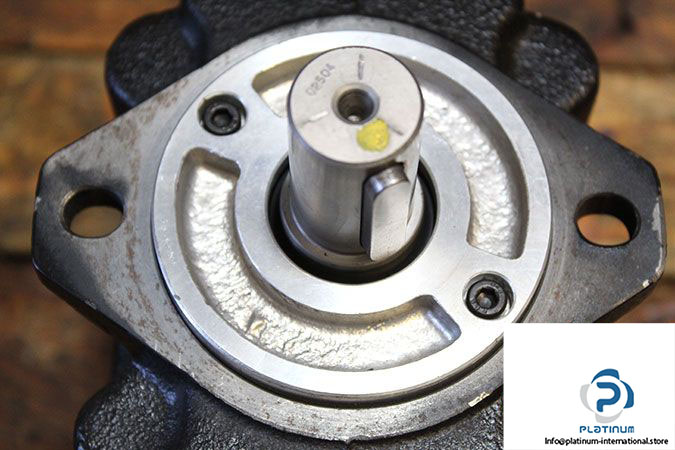

Shaft Diameter: 25 mm

Input Power at 1500 rpm: 7.7 Kw

Minimum Speed: 1100 min^-1

Max Speed: 3400 min^-1

Torque: 51 Nm

Viscosity Range: 10 …. 100 mm²/s

Weight: 14.3 Kg
