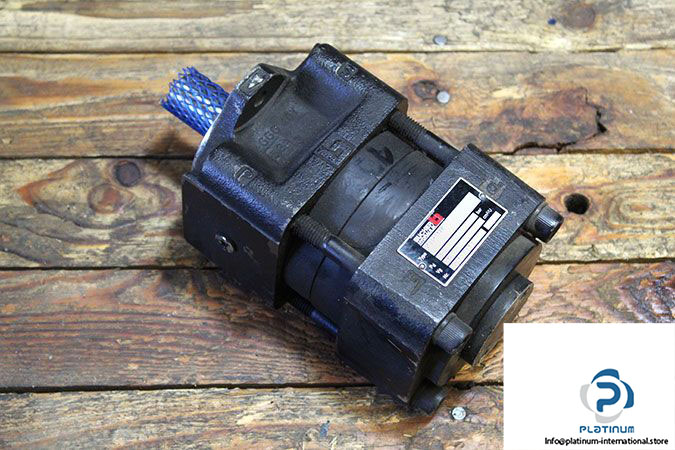

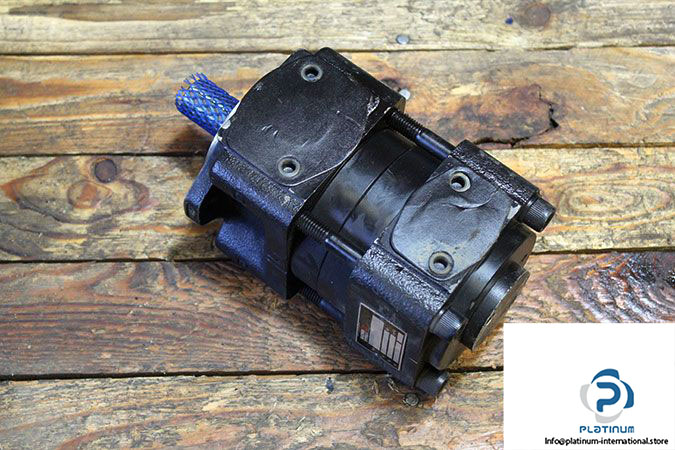

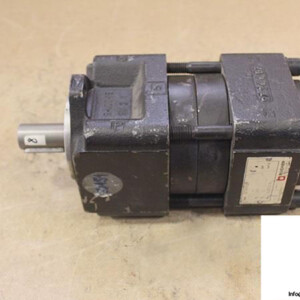

Bucher QT33-012R Internal Gear Pump

Manufacturer: Bucher

Type: Internal Gear Pump

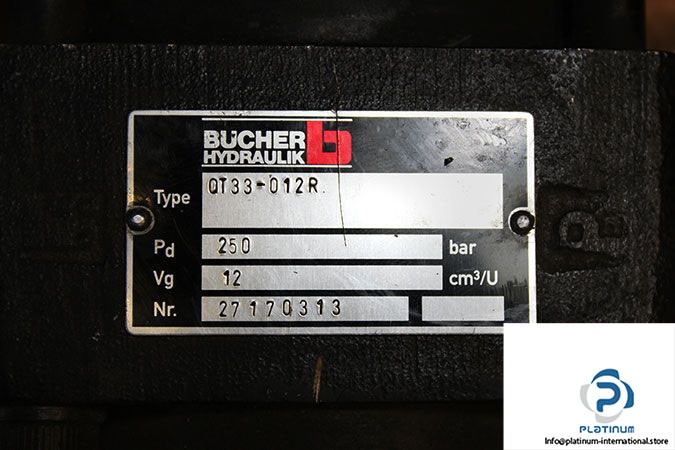

Model: QT33-012R

Size: 12

Displacement: 12.6 cm³

Output flow at 1500 rpm: 18.3 l/min

Nominal Pressure: 250 bar

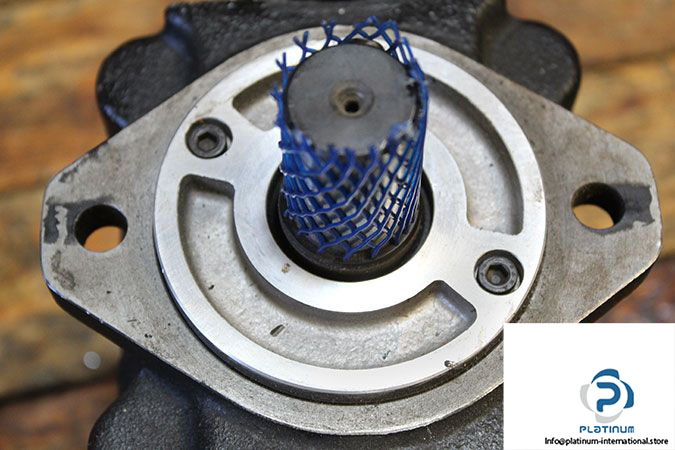

Shaft Diameter: 25 mm

Input Power at 1500 rpm: 9.7 Kw

Minimum Speed: 1100 min^-1

Max Speed: 3400 min^-1

Torque: 64 Nm

Viscosity Range: 10 …. 100 mm²/s

Weight: 14.1 Kg
