Busch MM 1324 AV Vacuum Pump
Used
In stock2 unitsReady to ship

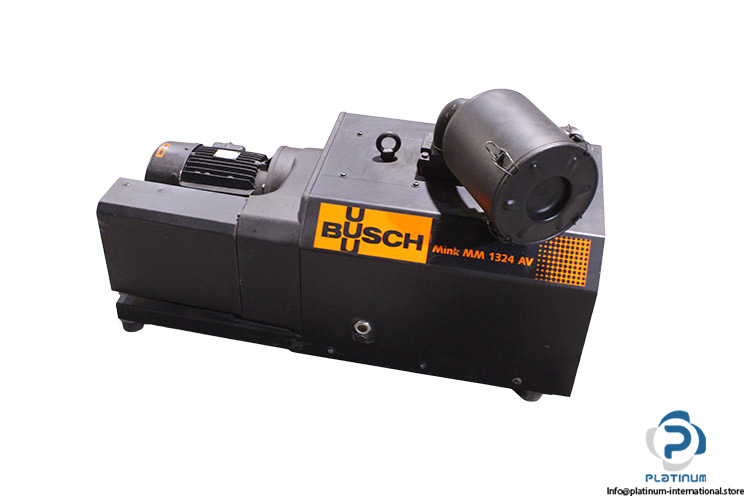

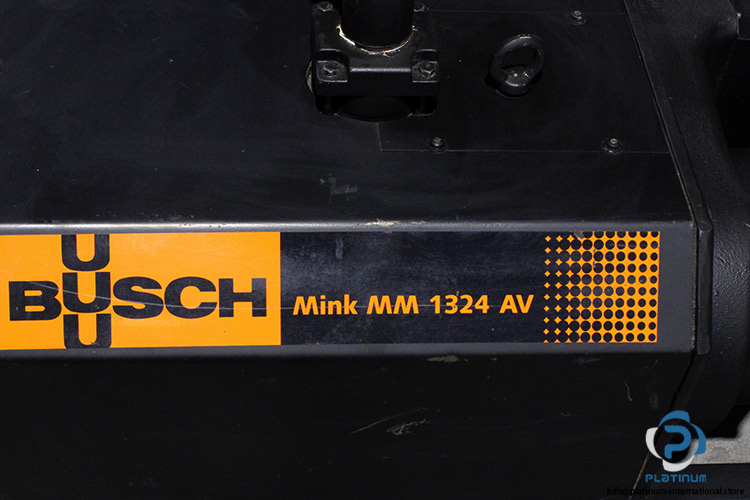

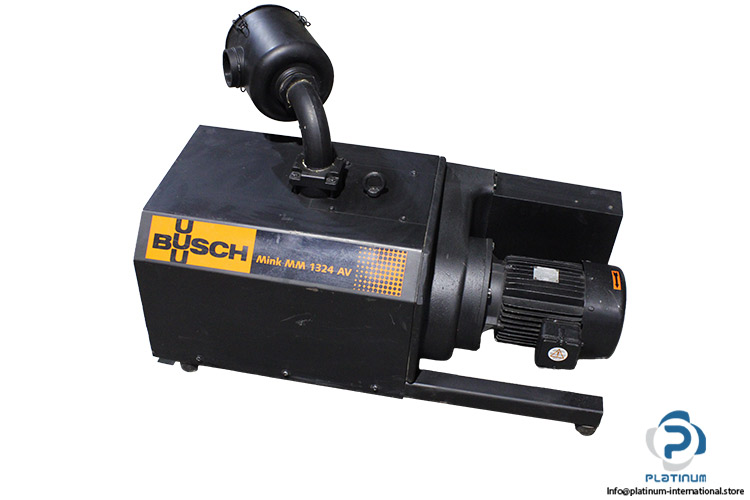

Vacuum Pump The BUSCH Mink MM 1324 AV is an industrial vacuum pump with a 160 m³/h suction capacity, operating at 1425 RPM and equipped with a three-phase motor for reliable vacuum generation in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

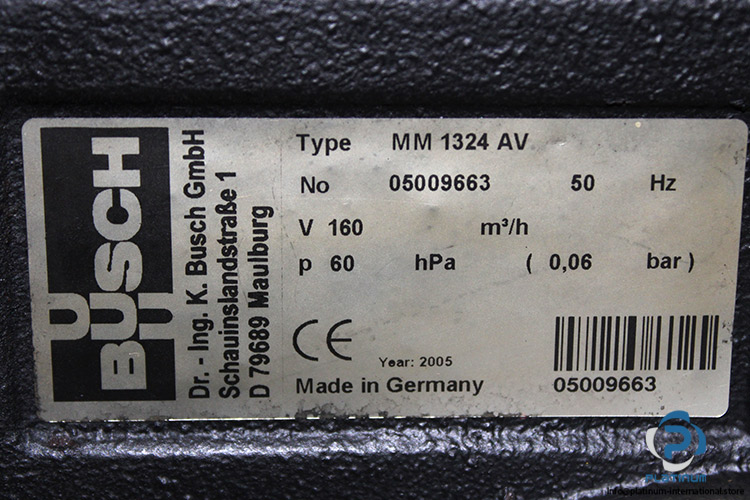

| Part No. | 05009663 |
| Code | 05009663 |
| Nominal suction capacity | 160 m3/h |
| Rated Speed | 1425 rpm |
| Pressure | 60 hpa (0.06 bar) |
| Rated Voltage | 160 v |
| Rated Frequency | 50 Hz |

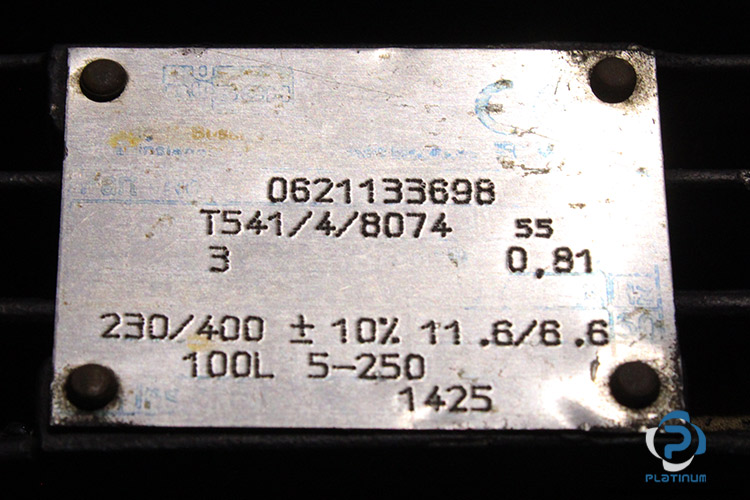

| Attached motor | T541/4/8074 55 |
| code, motor | 0621133698 |
| Operating Voltages, motor | 230V / 400V (Three-phase AC power). |
| Voltage Tolerance | ± 10% (Safe operational voltage variation). |
| Current Rating, motor | 11.6 A (at 230V) / 6.6 A (at 400V). |
| Rotational Speed, motor | 1425 RPM (Revolutions Per Minute). |
| Power Factor , motor | 0.81 |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100500 |
| Weight | 240 |
