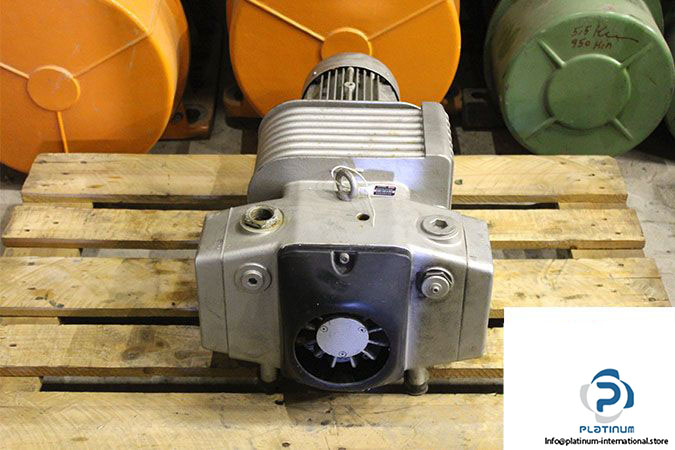

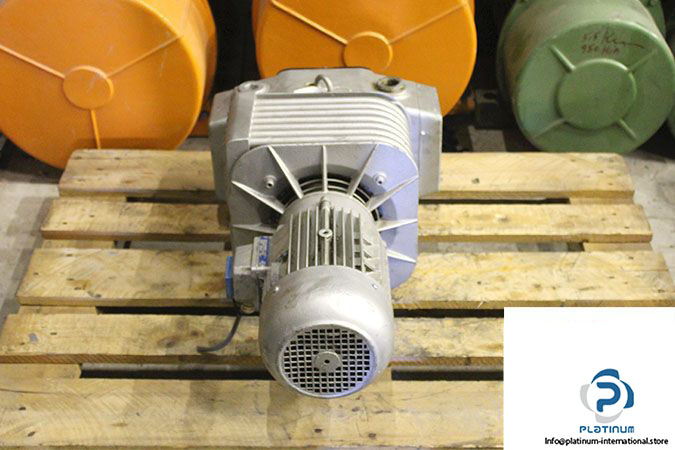

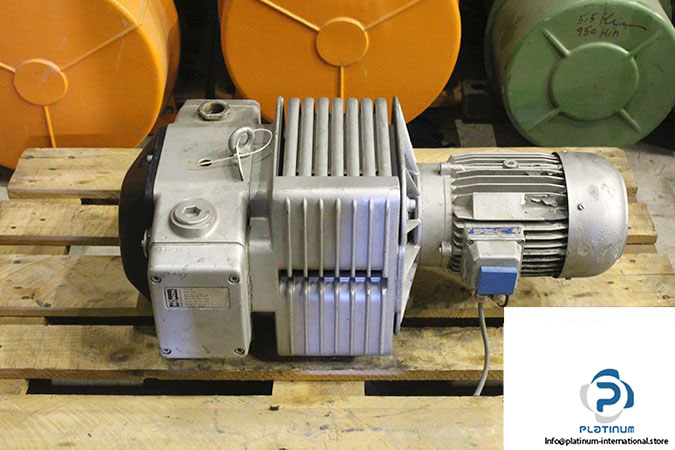

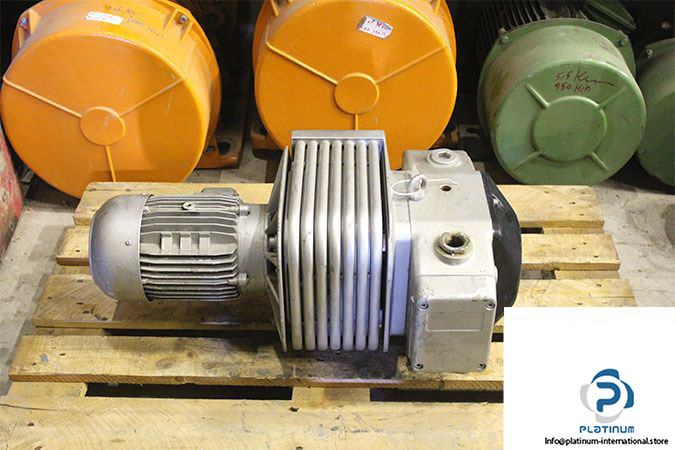

Busch SV 1063 B Vacuum Pump
Manufacturer: Busch
Type: Vacuum Pumps
Model: SV1068B
Nominal Displacement [m3/h]: 63/75
Ultimate Pressure [abs.]: 100
Nominal Motor Rating [kW]: 1.7/2.2
Nominal Motor Speed [rpm]: 1500/1800
Temperature Compressed Air [°C]: 42
Inlet Pressure [bar]: 0.850
Attachment: KATT FN100L-4 SINGLE PHASE E-MOTOR
Manufacturer: KATT
Type: Single Phase E-Motor
Model: FN100L 4
Series: VDE 0530
Rated Voltage [V]: 230/400
Rated Current [A]: 8.1/4.7
Rated Speed [rpm]: 1430
Power Factor [%]: 0.74
Rated Power [kW]: 1.7
Frequency [Hz]: 50
Protection Class [IP]: 54
Insulation Class: F
