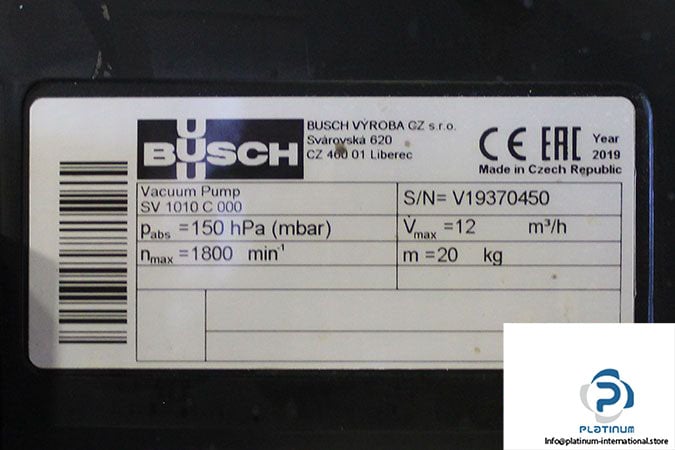

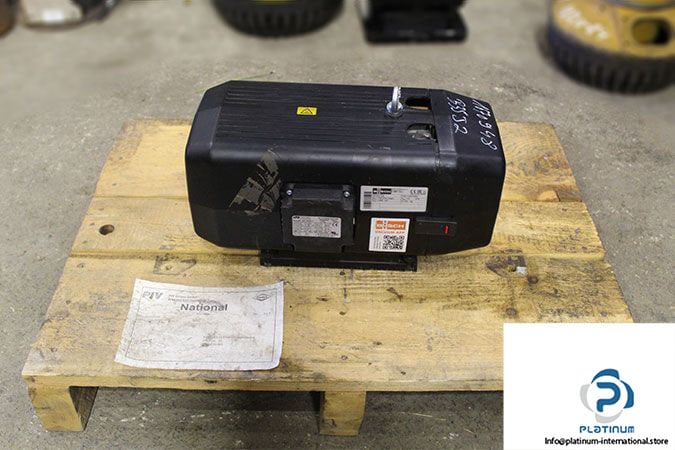

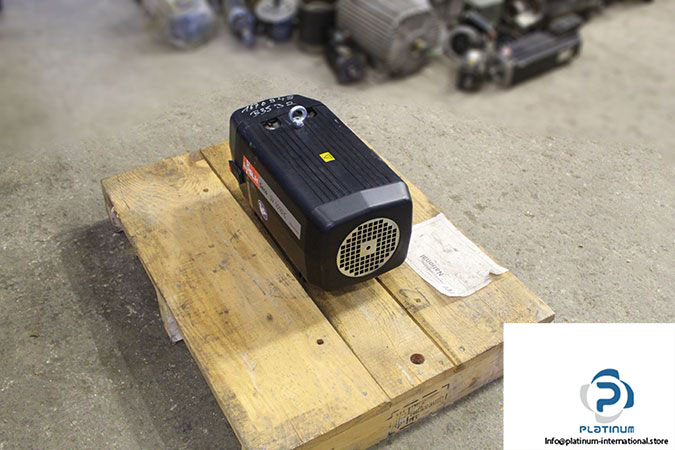

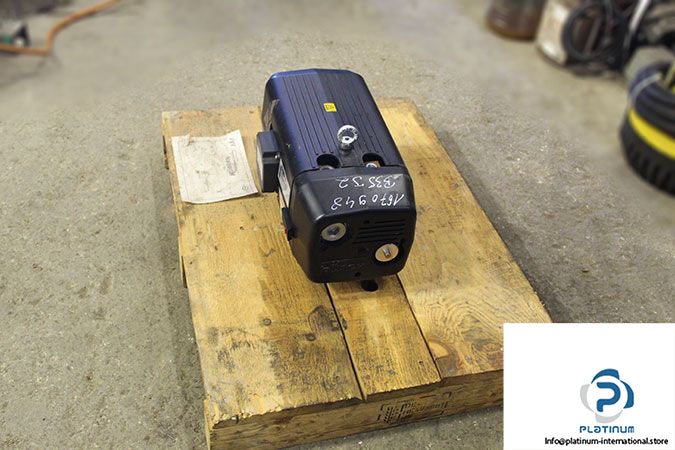

Busch SV1010 C 000 Vacuum Pump

Manufacturer: Busch

Type: Vacuum Pump

Model: SV1010 C 000



Absolute Pressure: 150 hPa

Max. Speed: 1800 min^-1

Max. Flow Rate: 12 m³/h

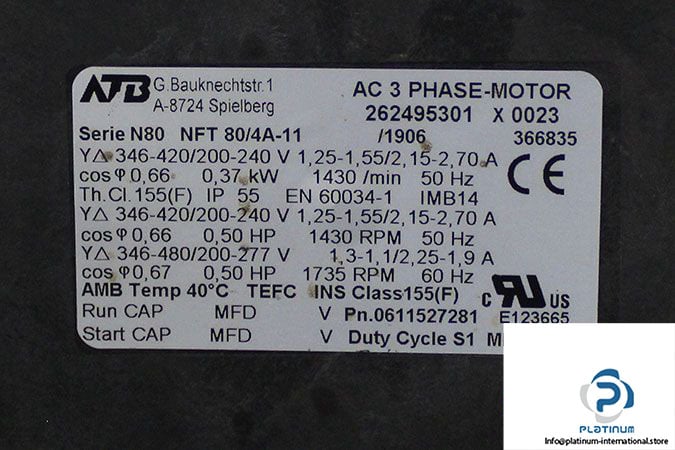

Attachment: ATB N80 NFT 80/4A-11 AC 3 PHASE-MOTOR

Manufacturer: ATB

Type: AC 3 PHASE-MOTOR

Model: N80 NFT 80/4A-11

At 50 Hz

At Star Connection

• Rated Voltage: 346…420 V
• Rated Current: 25…1.55 A

At Delta Connection

• Rated Voltage: 200…240 V
• Rated Current: 15…2.7 A

Rated Power: 0.5 HP

Power Factor: 0.66

Rated Speed: 1430 rpm

At 60 Hz

At Star Connection

• Rated Voltage: 346…480 V
• Rated Current: 3…1.1 A

At Delta Connection

• Rated Voltage: 200…277 V
• Rated Current: 25…1.9 A

Rated Power: 0.5 HP

Power Factor: 0.67

Rated Speed: 1735 rpm

Thermal Class: 155(F)

Protection Class: IP55

Mounting Positions: IMB14

Insulation Class: 155(F)

Ambient Temperature: 40 C°

Duty Cycle: S1

Weight: 21.5 Kg
