Cabur IS301394462 4MM Female Connector Positive
High-performance 4mm female connector with 1,000 VDC voltage rating, 25 A current capacity, IP67 protection, and tin-plated copper pins, ideal for industrial applications.

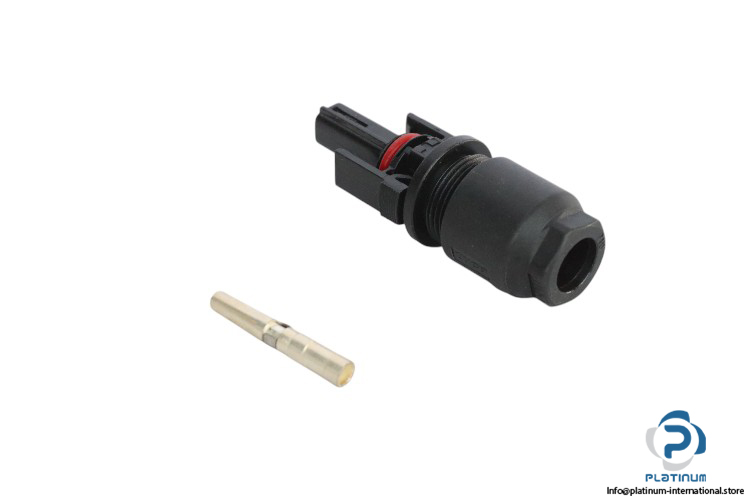

CABUR IS301394462 4mm Female Connector Positive
The CABUR IS301394462 4mm Female Connector Positive is a high-performance connector designed to meet the needs of demanding applications. With a maximum applicable voltage of 1,000 VDC and a maximum current of 25 A, this connector ensures safe and reliable connections in electrical systems.
Built for versatility, this flying connector is ideal for various industrial and electrical setups. The female connector is compatible with 4mm² crimpable wires and features a tin-plated copper PIN for enhanced durability and conductivity. The PIN diameter is 2.5 mm, and the contact resistance is less than 5 Milliohm, ensuring low-resistance connections.
The CABUR IS301394462 connector is rated with an IP67 protection class, providing high resistance to dust and water ingress, making it suitable for outdoor and harsh environmental conditions. The operating temperature range is from -40°C to +90°C, offering flexibility in various climates and conditions.
- Manufacturer: CABUR
- Type: 4mm Female Connector Positive
- Model: IS301394462
- ID Number: KXSUN04FPPOS
- Maximum Applicable Voltage: 1,000 VDC
- Maximum Applicable Current: 25 A
- Application: Flying connector
- Polarity: Positive
- Connector Type: Female
- PIN Diameter: 2.5 mm
- Section of Crimpable Wires: 4 mm²
- Features of Metallic PIN: Tin-plated copper
- Contact Resistance: Rc ¹ 5 Milliohm
- Degree of Protection: IP67
- Operating Temperature: -40°C to 90°C
This connector is a reliable and efficient solution for high-voltage, high-current applications where durability, protection, and performance are essential.
