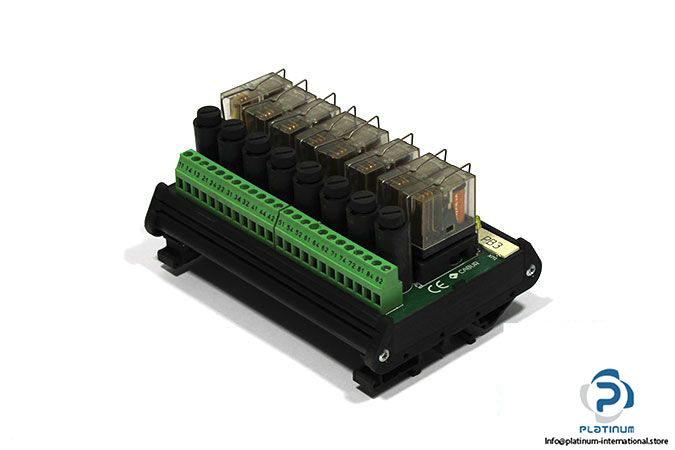

Cabur R81U24F Relay Module

Manufacturer: Cabur

Type: Relay Module

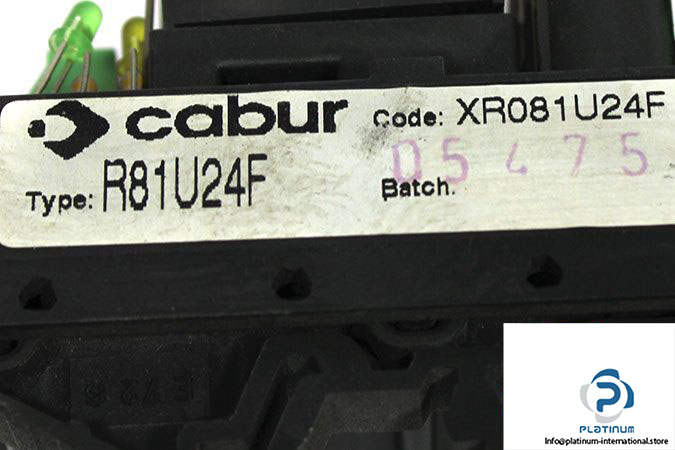

Model: R81U24F

Order Code: XR081U24F

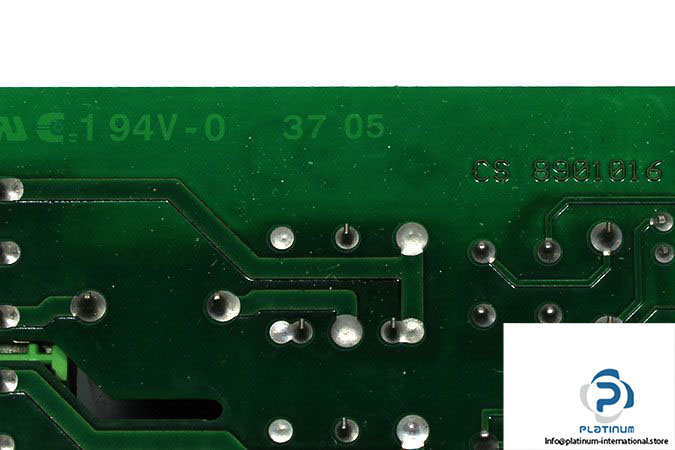

MRN: CS 8901016

Input Rated Voltage: 24 Vac/dc ±10%

Current Consumption: 22 mA ±10%

Nominal Current: 16 A (250 Vac)

Max Fuse Current: 6.3 A (250 Vac) (2)

Turn ON OFF Time: 10 ms / 5 ms

Protection Circuit: Free-wheel diode, Reverse polarity

Connection Type: 2.5 mm² screw type and 16 poles connector

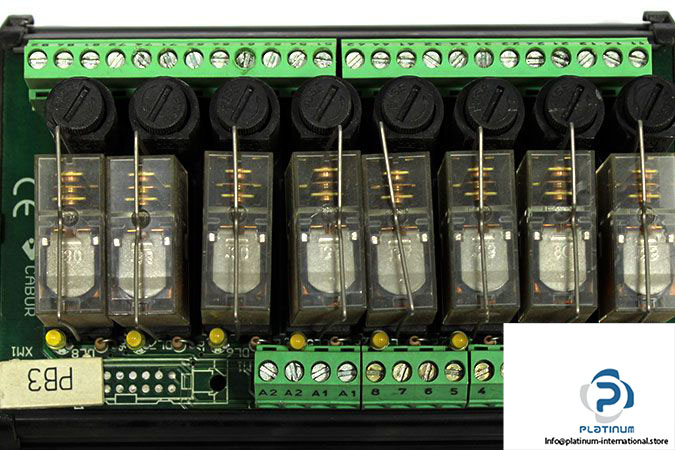

Input Channels: 8 pluggable

Contact Type: SPDT, 1 form C, AgSnO2

Operating Temperature Range: -20…70 °C

Material: UL94V-0 Plastic

Dimensions: 137 x 93 x 75 mm

Weight: 0.40 kg
