Caipo 63 N 35 CP 1C ISO Cylinder
Used
In stock4 unitsReady to ship
ISO Cylinder
CAIPO ISO Cylinder 63 N 35 CP 1C is designed for efficient motion control in industrial applications. With a bore diameter of 63 mm and stroke of 35 mm, it operates under a maximum pressure of 12 bar with a male piston rod end.121C3/83563barboreCaipoconnectionControlCPCylinderdiameterdouble-actingGIndustrialISOmmMotionNPneumatic
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

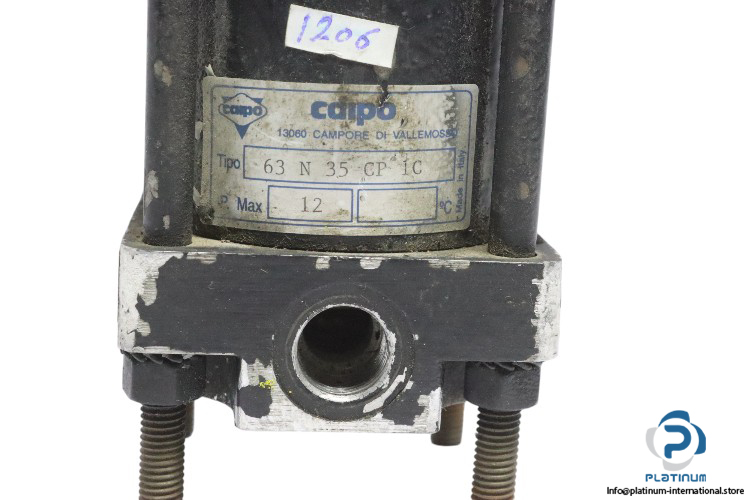

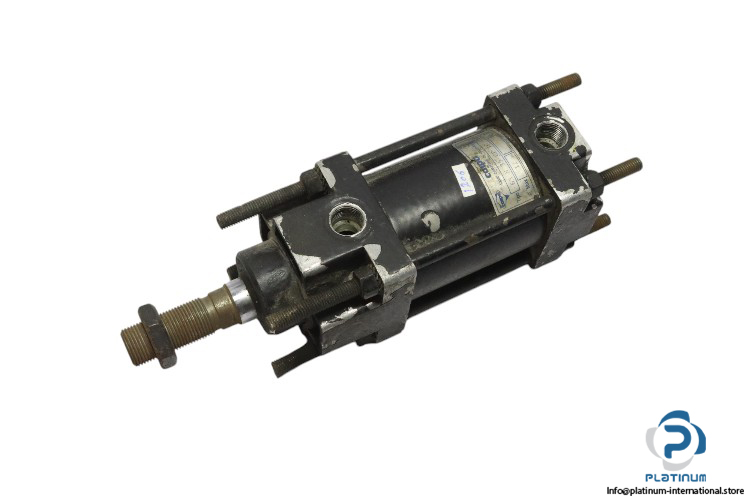

CAIPO ISO Cylinder 63 N 35 CP 1C
The CAIPO ISO Cylinder 63N35CP1C is a high-performance pneumatic cylinder designed for use in various industrial applications. With a bore diameter of 63 mm and stroke of 35 mm, it offers efficient operation and reliable performance under a maximum pressure of 12 bar. This cylinder is ideal for precise motion control in systems requiring compressed air as the medium.
Manufacturer: CAIPO
Model: 63 N 35 CP 1C
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 35 mm
- Bore x Stroke: 63 × 35 mm
- Rod Diameter: 22 mm
- Frame Dimensions: 75 x 185 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
