Camozzi 61M2P050A0320 Pneumatic Cylinder
Used
In stock1 unitReady to ship
Built for high-efficiency industrial applications, the Camozzi 61M2P050A0320 Pneumatic Cylinder features a 50 mm bore diameter, 320 mm stroke, and a maximum pressure of 10 bar for reliable performance.
1050ActuatorAirbarboreCompressedCylinderdiameterDoublehigh-performanceIndustrialmmPneumaticPressureSquare
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

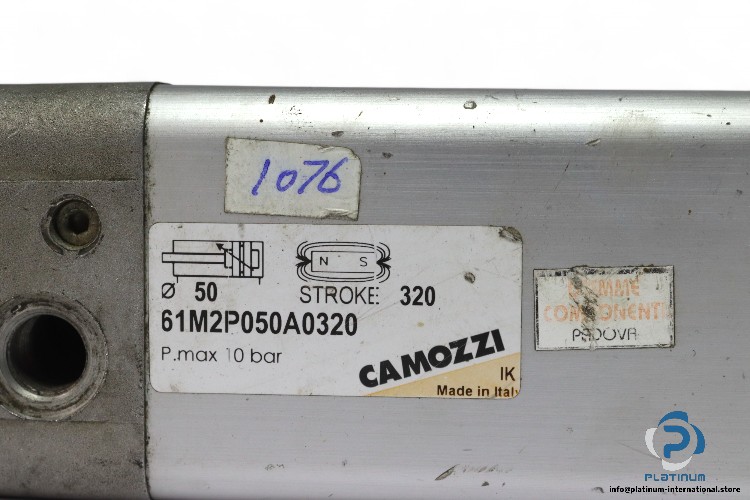

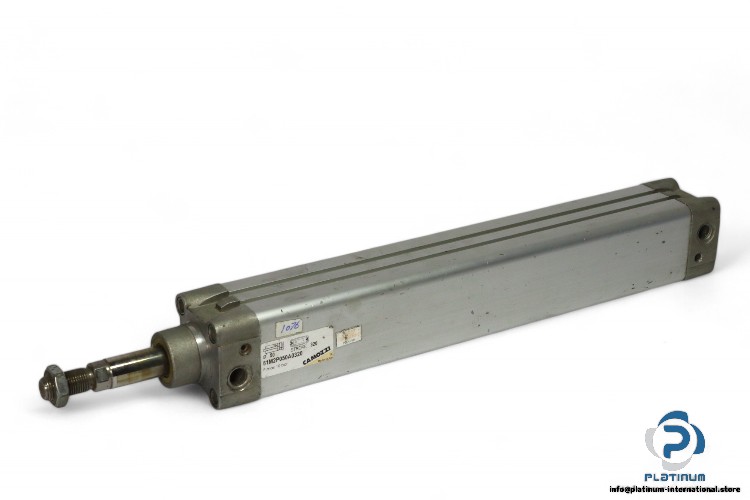

CAMOZZI 61M2P050A0320 PNEUMATIC CYLINDER
The Camozzi 61M2P050A0320 Pneumatic Cylinder is a high-quality pneumatic actuator designed for precision and durability in industrial applications. With a 50 mm bore diameter and a 320 mm stroke, it offers reliable performance for demanding operations.
Manufacturer: Camozzi
Type: Pneumatic Cylinder
Model: 61M2P050A0320
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 50 mm
- Stroke: 320 mm
- Bore x Stroke: 50×320 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 65×450 mm
- Pneumatic Connection: G3/8
- Max Pressure: 10 bar
- Mode of Operation: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
