Coel F71C4 TEC 3 Phase Electric Motor
New
In stock62 unitsReady to ship
333,33$
3-PHASE ELECTRIC MOTOR
Coel F71C4TEC 3-phase electric motor with DC104AC230 brake, 0.55 kW power, 1380 rpm speed, 220“415 V operation, 15 Nm braking torque, IP54 protection, and Class F insulation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

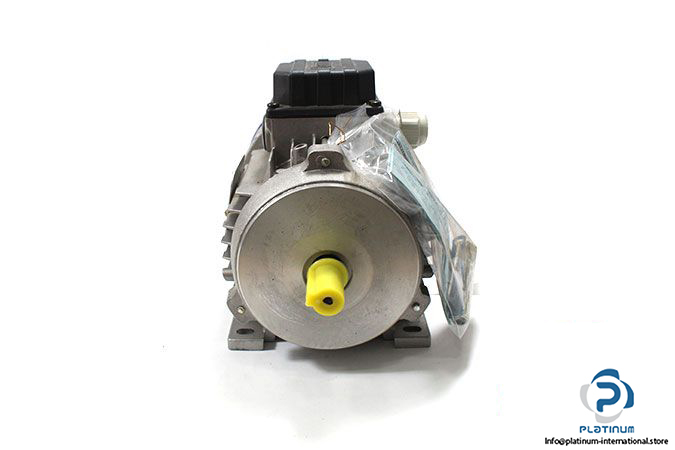

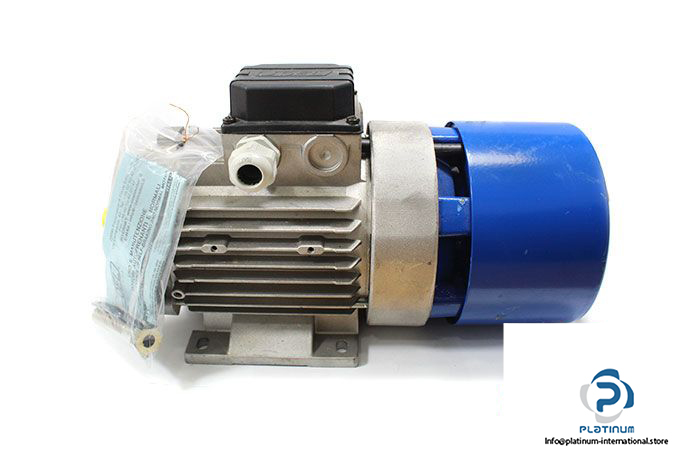

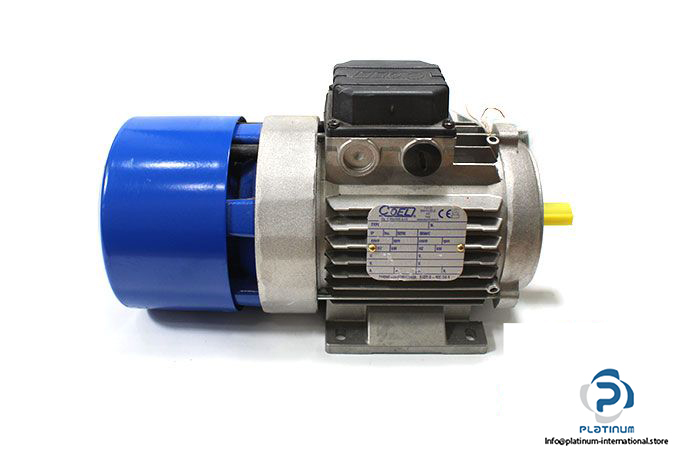

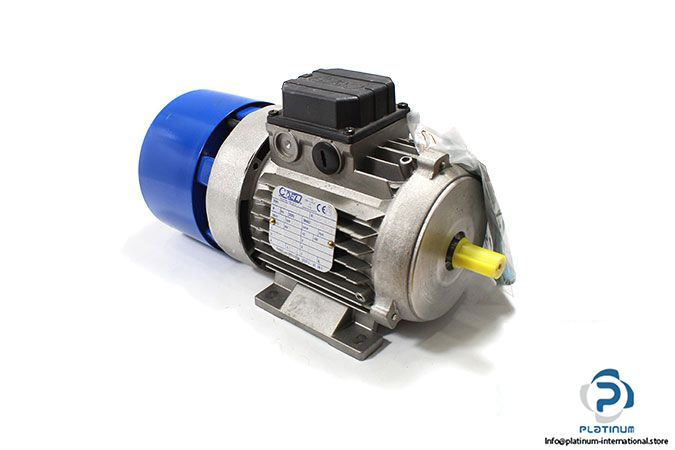

Coel F71C4TEC 3-Phase Electric Motor
The Coel F71C4TEC is a robust 3-phase electric motor with DC brake, designed for reliable performance in continuous duty industrial applications. Built from aluminum and engineered for efficiency, it offers precise torque control and dependable operation across a wide voltage range.

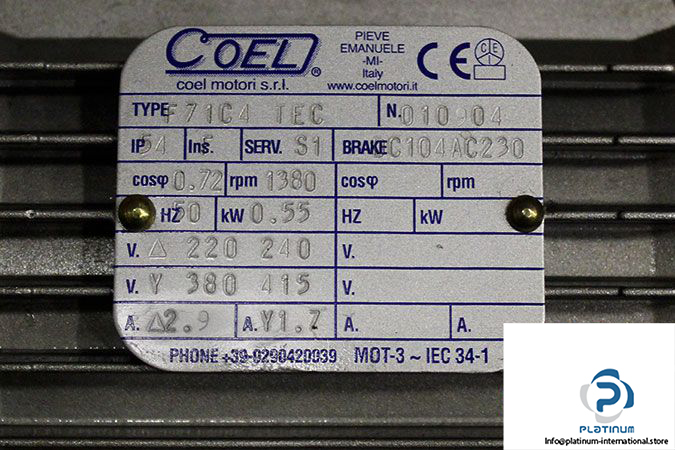

Manufacturer: Coel
Type: 3 Phase Electric Motor
Model: F71C4TEC
Brake Type: DC104AC230
Material: Aluminum
| Rated Power | 0.55 kW |
| Rated Speed | 1380 rpm |
| Frequency | 50 Hz |
| Motor Voltage / Connection Type | 380“415 V / Star (1.7 A) |
| Motor Voltage / Connection Type | 220“240 V / Delta (2.9 A) |
| Braking Torque Max | 15 Nm |
| Inertia Moment | 0.00098 Kgm² |
| Number of Poles | 4 |
| Shaft Diameter | 14 mm |
| Power Factor | 0.72 |
| Duty | S1 |
| Protection Class | IP54 |
| Insulation Class | F |
