Coel F80B4 Brake Motor
Used
In stock1 unitReady to ship
444,44$
BRAKE MOTOR
Coel F80B4 brake motor with 0.75/0.90 kW power, 220“240/380“415 V at 50 Hz, 255“277/440“480 V at 60 Hz, 1400/1680 rpm, IP54 protection, and Class F insulation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

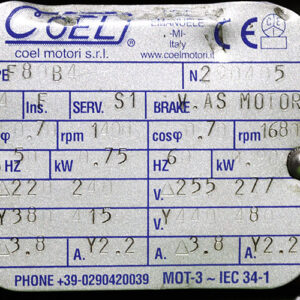

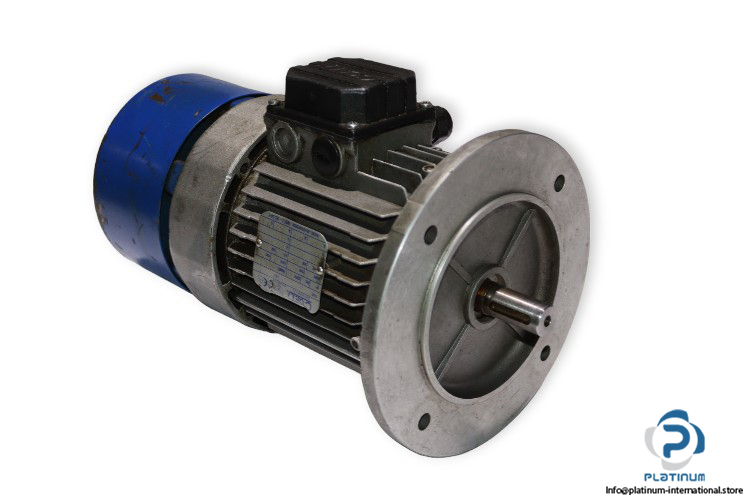

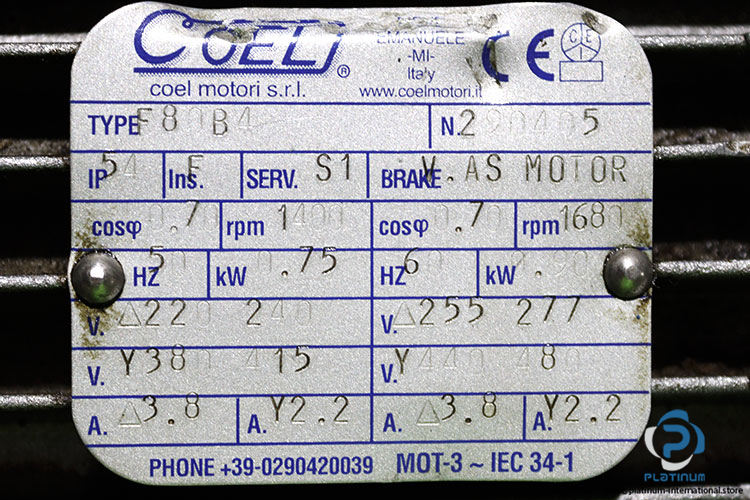

Coel F80B4 Brake Motor
The Coel F80B4 is a robust and efficient brake motor engineered for reliable performance in continuous-duty industrial applications. Designed for smooth operation and strong braking capability, it combines high efficiency, precision, and durability under demanding working conditions.
Manufacturer: Coel
Type: Brake Motor
Model: F80B4
| Rated Power [kW] | 0.75 / 0.90 |
| Rated Voltage at 50 Hz [V] | 220“240 / 380“415 |
| Rated Voltage at 60 Hz [V] | 255“277 / 440“480 |
| Rated Current [A] | 3.8 / 2.2 |
| Rated Speed [min»¹] | 1400 / 1680 |
| Frequency [Hz] | 50 / 60 |
| Protection Class [IP] | 54 |
| Thermal Class | F |
| Duty | S1 (Continuous Duty) |
| Power Factor [cos φ] | 0.70 |
