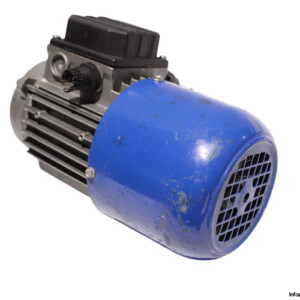

Coel F71B4 Brake Motor

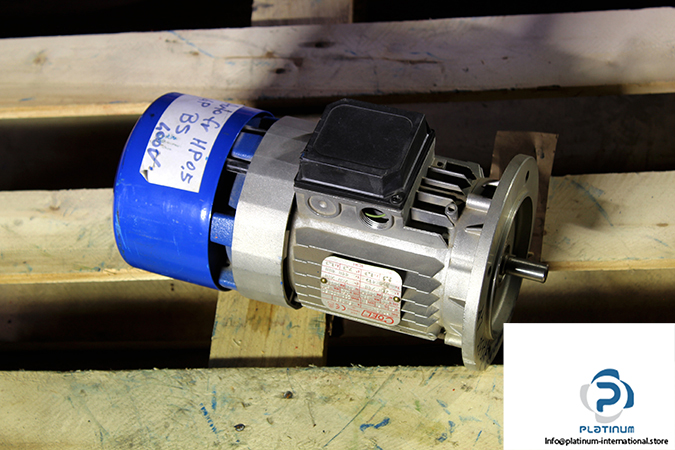

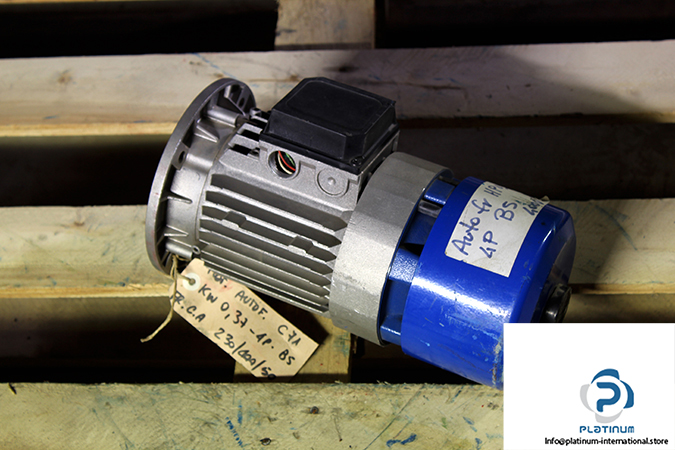

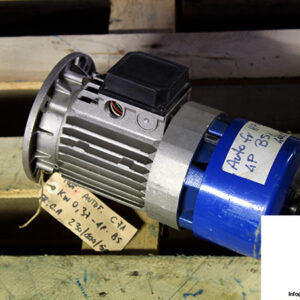

COEL F71B4 BRAKE MOTORS

The COEL F71B4 Brake Motor is designed for high-performance applications, offering reliable and efficient operation in various industrial environments. With a motor speed of 1390/1670 rpm and motor power of 0.37 kW, this motor ensures precision control and optimal performance. It features a thermal class of F and protection class IP54, making it suitable for demanding applications.

Manufacturer: Coel

Type: Brake Motors

Model: F71B4

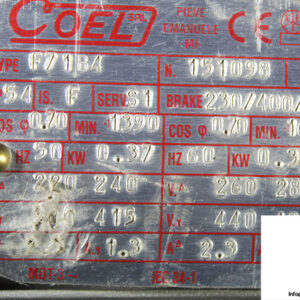

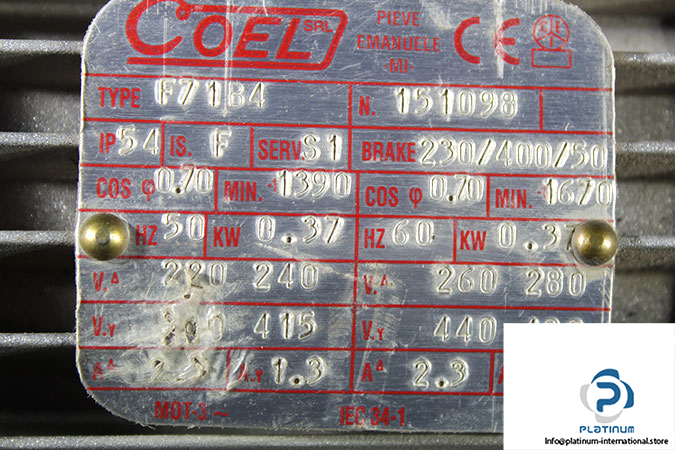

Technical Specifications

• Motor Speed [r/min]: 1390/1670
• Motor Power [kW]: 0.37/0.37
• Rated Voltage [V] Delta: 220-240/260-280
• Rated Voltage [V] Star: 400-415/440-480
• Nominal Current [A]: 2.3/1.3
• Motor Frequency [Hz]: 50/60
• Cos Phi: 0.70
• Thermal Class: F
• Duty: S1
• Protection Class [IP]: 54
• Brake Voltage [V]: 230/400/50
