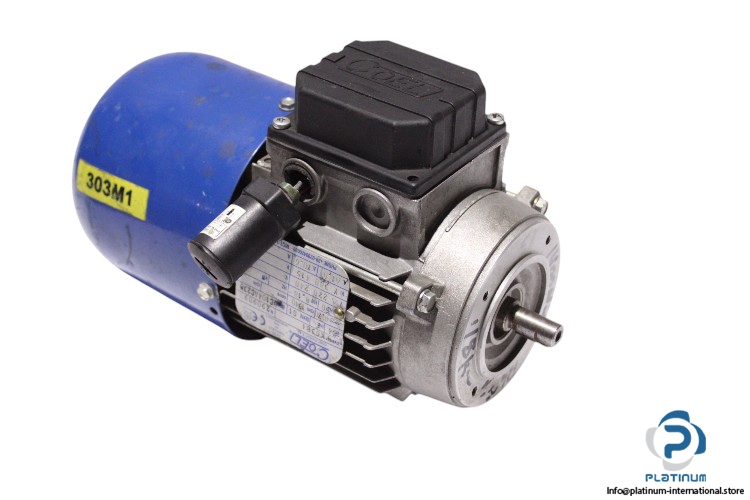

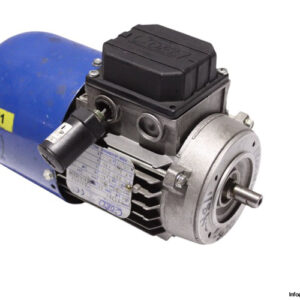

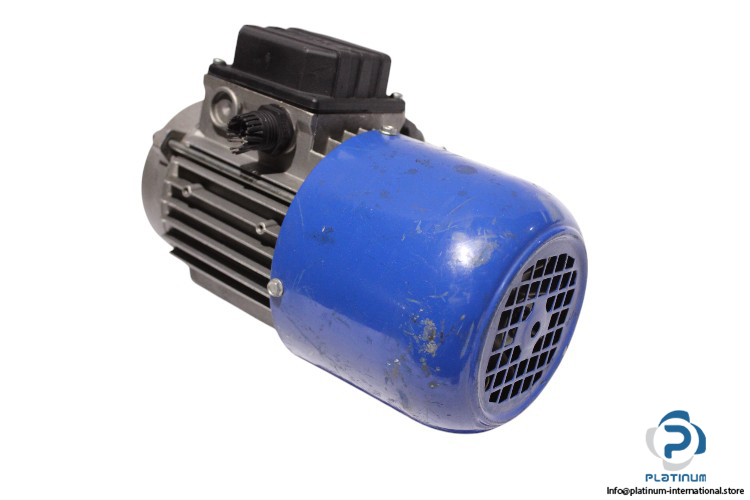

Coel FK63B4 Brake Motor

COEL FK63B4 BRAKE MOTOR

The COEL FK63B4 Brake Motor is engineered for efficient operation, delivering reliable performance for a range of industrial applications. With a motor power of 0.18 kW, 1340 r/min speed, and dual voltage capability, this motor ensures consistent power delivery with high torque efficiency.

Manufacturer: Coel

Type: Brake Motor

Model: FK63B4

Part No.: 290909

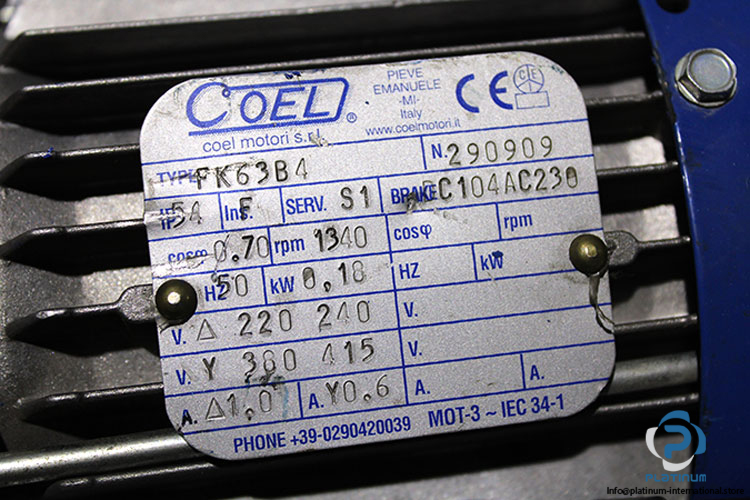

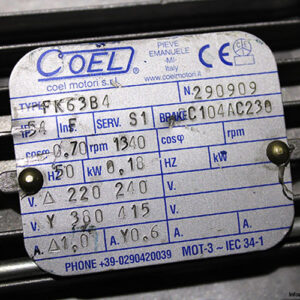

Technical Specifications

• Motor Speed [r/min]: 1340
• Motor Power [kW]: 0.18
• Rated Voltage [V]: 220-240 Delta
• Rated Voltage [V]: 380-415 Star
• Nominal Current [A]: 1.0/0.6
• Motor Frequency [Hz]: 50
• Cos Phi: 0.70
• Thermal Class: F
• Duty: S1
• Protection Class [IP]: 54
• Brake Voltage [V]: 104 DC/ 230 AC
