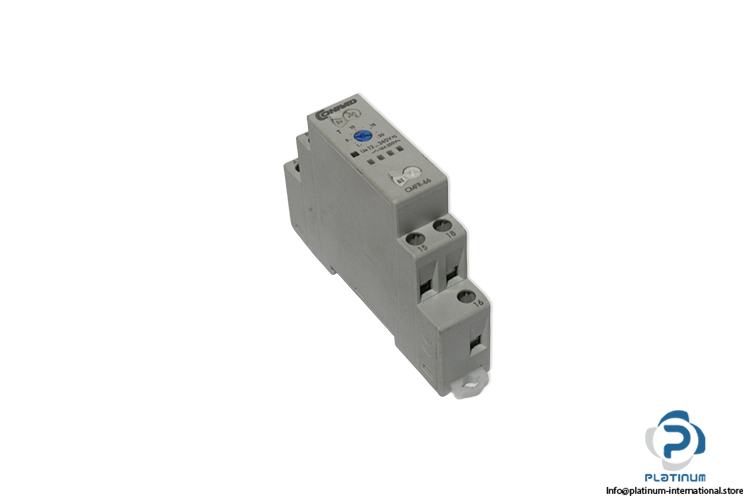

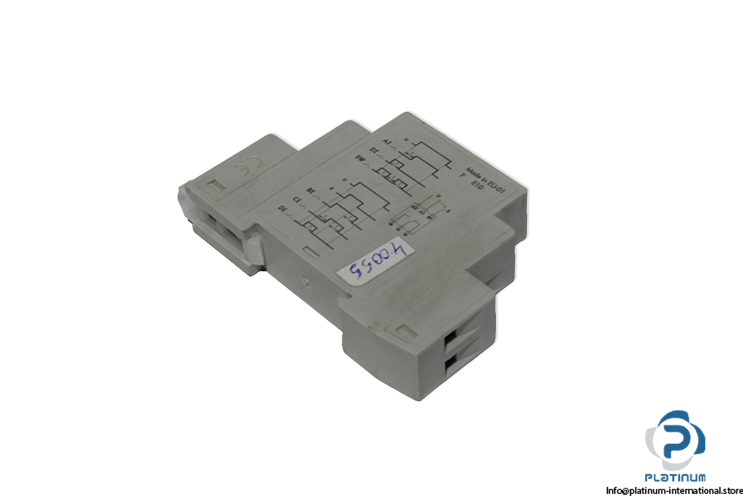

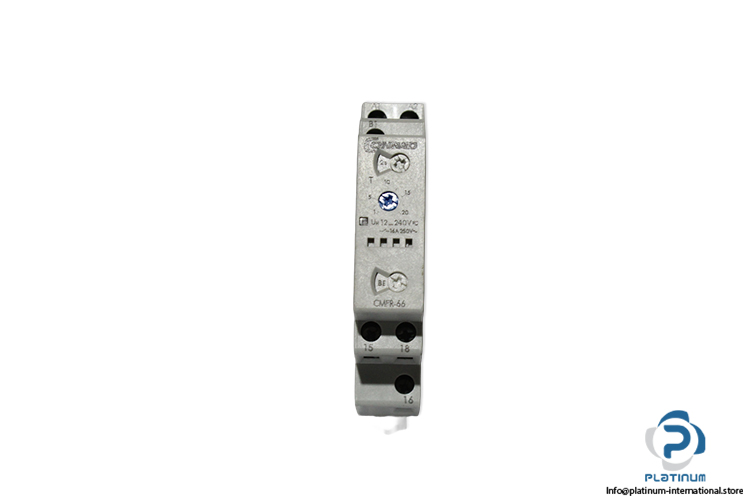

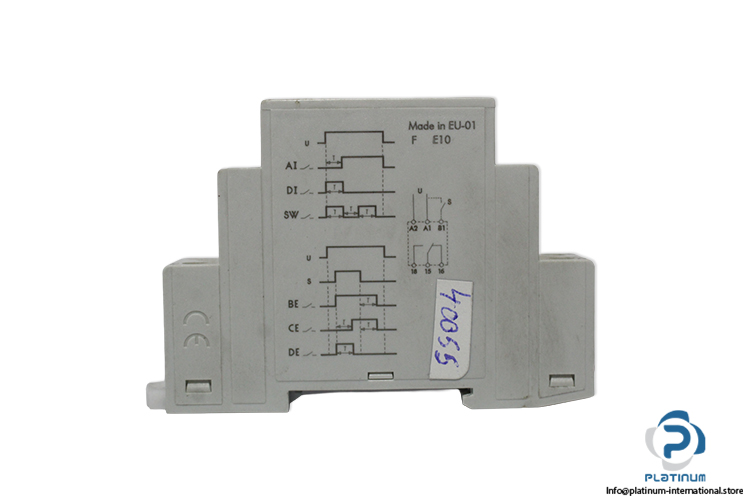

Conrad CMFR-66 Multifunction Time Delay Relay
New
In stock1 unitReady to ship
Multifunction Time Delay Relay The CONRAD CMFR-66 is a multifunction time delay relay with 12/240 V AC/DC operation, multiple timing functions and selectable time ranges for industrial control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Art-No. | 23001004 |
| E-Nr. | 4082130 |
| SNRO | 2701802 |
| Functions | On-Delay, Single-Shot Leading-Edge, Flasher Asymmetric Pulse On, Off-Delay, On-/Off-Delay, Pulse Shaper |
| Operating Voltage | 12/240 V AC/DC |
| Time Ranges | 2 s, 20 s, 2 min, 20 min, 2 h, 24 h |
| Contact | 1 Changeover (CO) |
| Switching Voltage Max. | 400 V AC |
| Switching Current Max. | 16 A |
| Switching Capacity Max. | 4000 VA |
| Connection | Screw Terminal |
| Protection Class | IP20 |
| Temperature | -10 to 50 °C |
| Dimensions | 88.8 x 17.5 x 60.8 mm |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1103857 |
| Weight | 0,07 |
