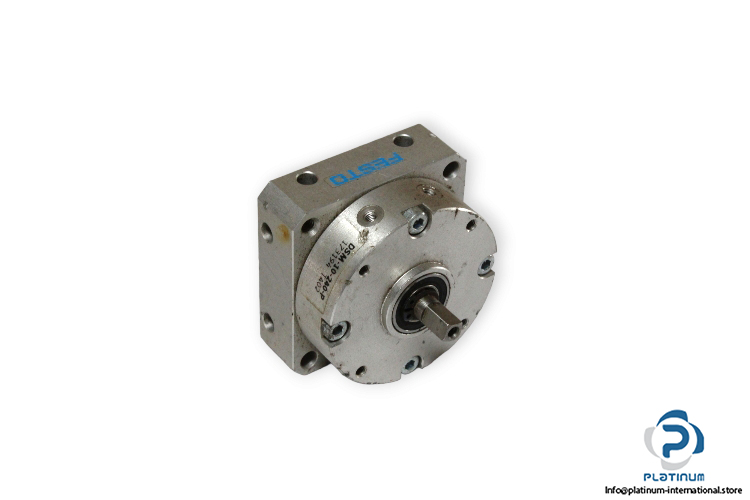

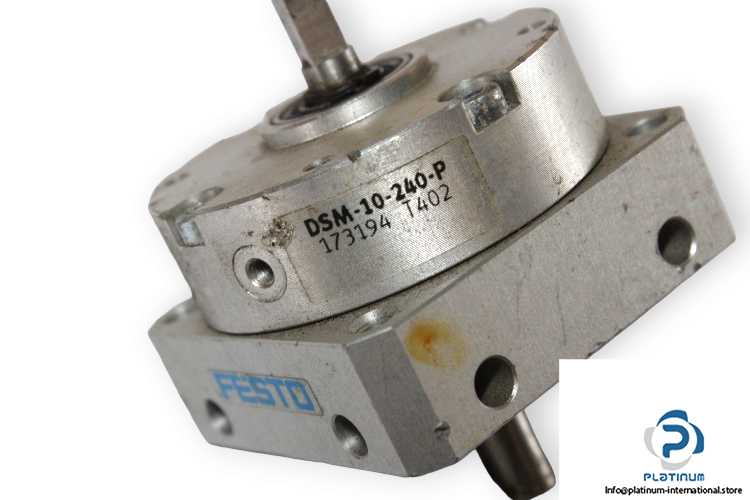

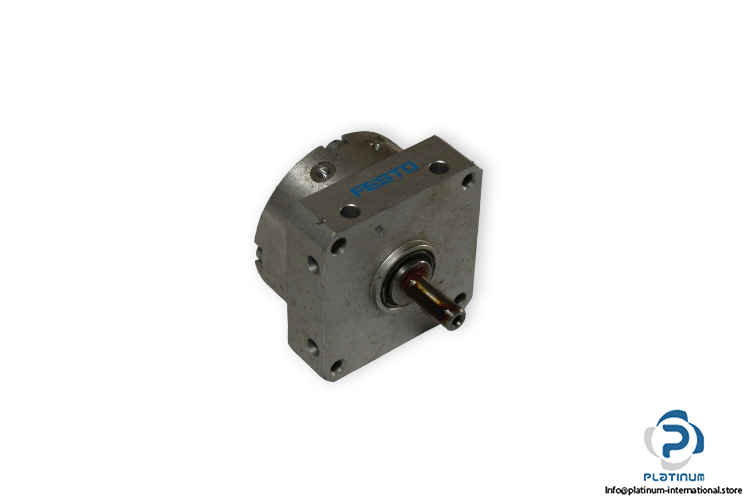

Festo 173194 Rotary Actuator

Manufacturer: FESTO

Type: Rotary actuator

Model: DSM-10-240-P

Part No.: 173194



Size: 10

Cushioning angle: 0.5 deg

Swivel angle: 0 deg … 240 deg

Cushioning: Elastic cushioning rings/pads at both ends

Mounting position: Any

Mode of operation: Double-acting

Operating pressure: 2.5 bar … 8 bar

Max. swivel frequency at 6 bar: 2 Hz

Operating medium: Compressed air

Ambient temperature: 0 °C … 60 °C

Theoretical torque at 6 bar: 0.85 Nm

Pneumatic connection: M3
