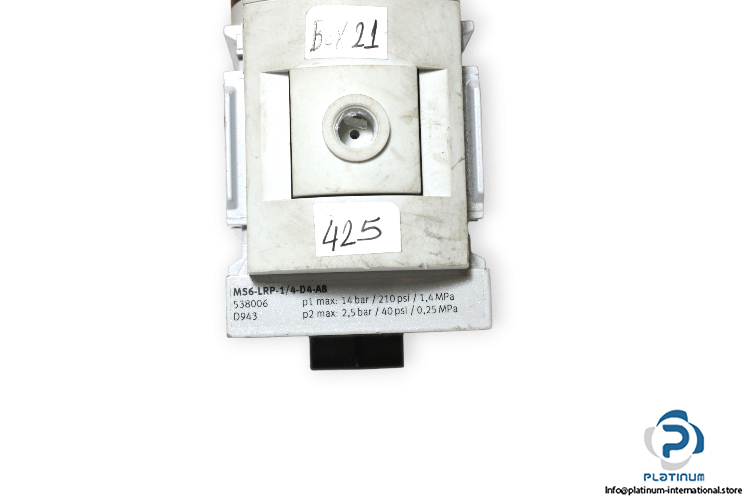

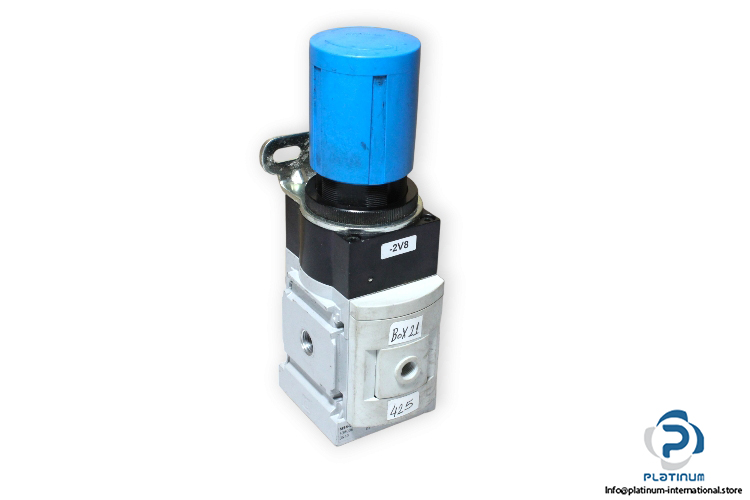

Festo 538006 Pressure Regulator

Manufacturer: FESTO

Type: Pressure Regulator

Model: MS6-LRP-1/4-D4-A8

Part No.: 538006

Size: 6

Actuator lock: Rotary knob with detent

Fluid: Air

Pressure gauge: G1/8 prepared

Operating Pressure: 1 bar … 14 bar

Pressure Regulation Range: 0.05 bar … 2.5 bar

Max. pressure hysteresis: 0.02 bar

Flow rate of secondary venting: 450 l/min

Standard nominal flow rate: 1100 l/min

Ambient temperature: -10 °C … 60 °C

Pneumatic Connection: G1/4
