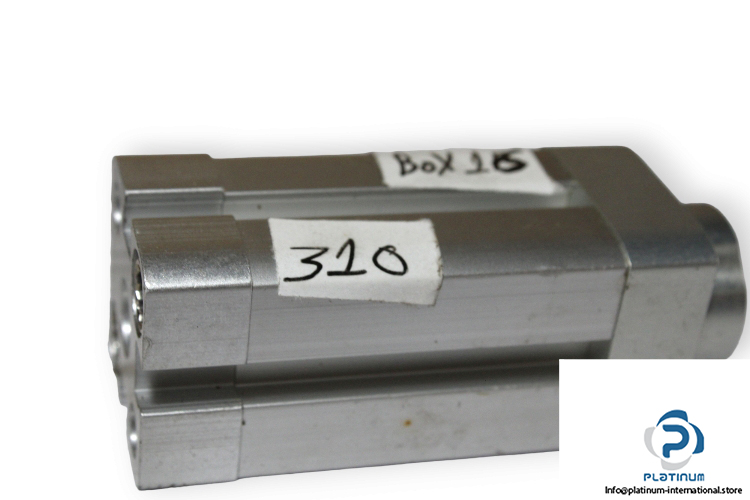

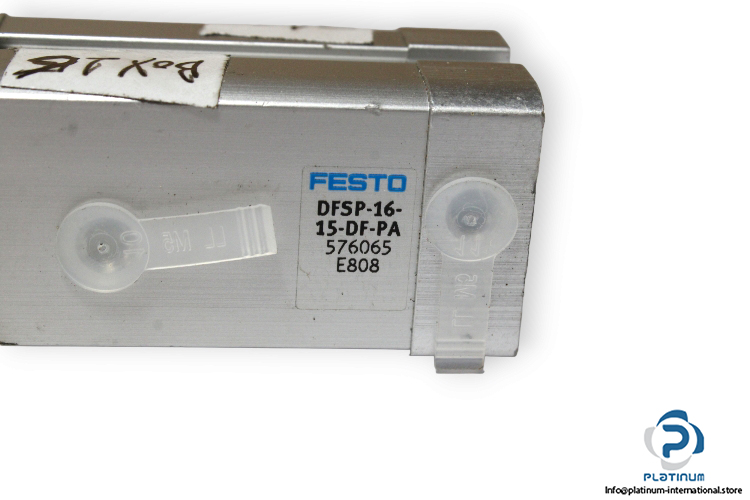

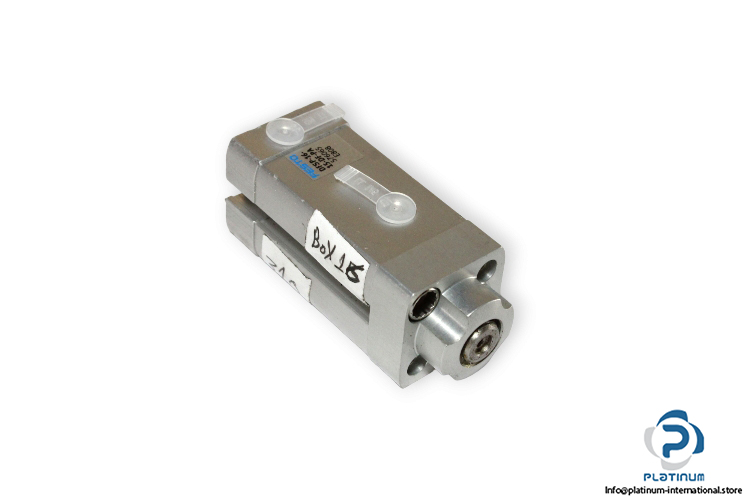

Festo 576065 Stopper Cylinder

Manufacturer: FESTO

Type: Stopper cylinder

Model: DFSP-16-15-DF-PA

Part No.: 576065



Stroke: 15 mm

Piston diameter: 16 mm

Piston rod thread: M3

Cushioning: Elastic cushioning rings/pads at both ends

Mode of operation: Double-acting

Structural design: Piston

Position sensing: For proximity sensor

Operating pressure: 1 bar … 10 bar

Operating medium: Compressed air

Ambient temperature: -10 °C … 80 °C

Permissible impact force on the advanced piston rod: 880 N

Pneumatic connection: M5
