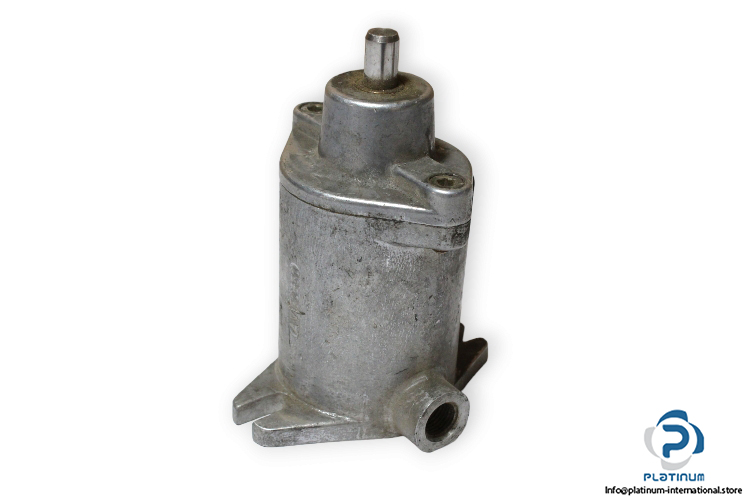

Festo 2402 Single Acting Cylinder

Manufacturer: FESTO

Type: Single acting cylinder

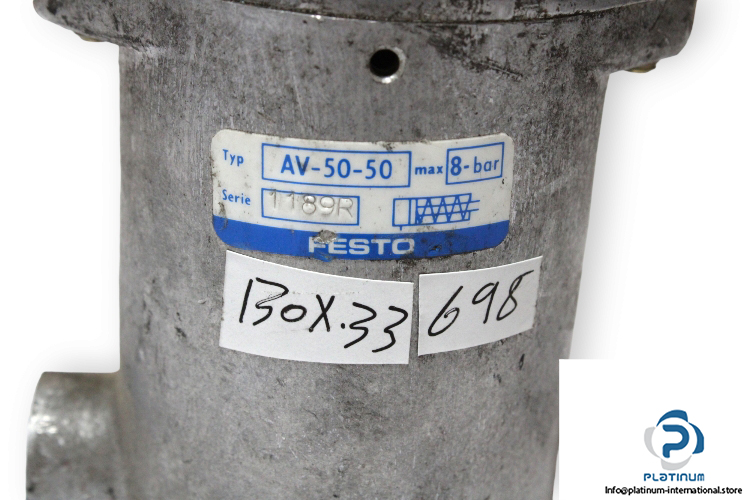

Model: AV-50-50

Part No.: 2402



Medium: Compressed air

Mode of operation: Single, pushing

Shape piston: Round

Shape of piston rod: Round

Piston, nominal size: 50

Stroke: 50 mm

Piston rod diameter: 10 mm

Operating pressure min.: 1,5 bar

Operating pressure max.: 8 bar

Minimum ambient temperature: -20 °C

Maximum ambient temperature: 80 °C

Material of barrel/housing: Cast aluminium, Die-cast aluminium

Air connection type cover cap: Female thread

EE Connecting thread for end cap: G 1/4

Effective force (theor.) at 6 bar, adv: 0.1020 N
