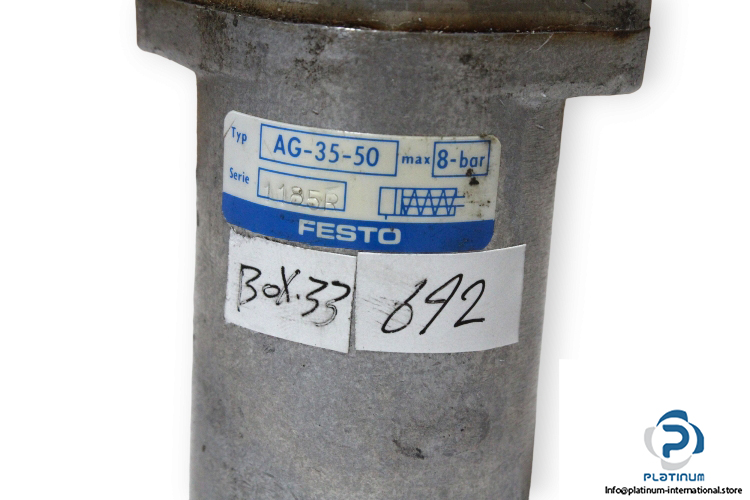

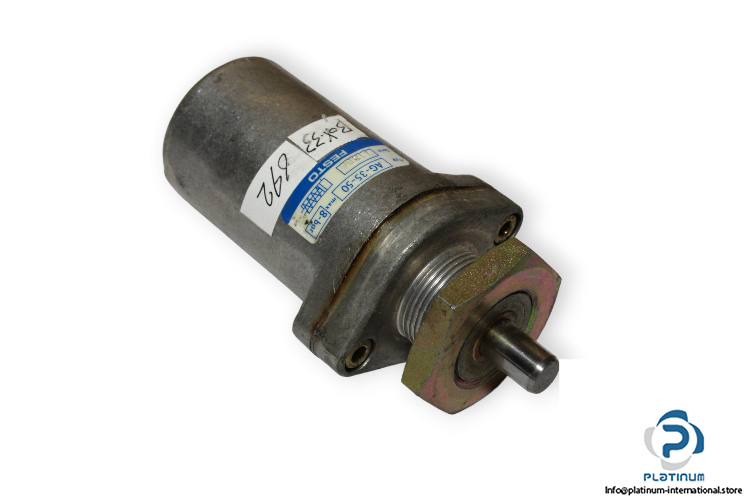

Festo AG-35-50 Single Acting Cylinder

Manufacturer: FESTO

Type: Single acting cylinder

Model: AG-35-50



Medium: Compressed air

Mode of operation: Single, pushing

Shape piston: Round

Shape of piston rod: Round

Piston, nominal size: 35

Stroke: 50 mm

Operating pressure min.: 1,5 bar

Operating pressure max.: 8 bar

Minimum ambient temperature: -20 °C

Maximum ambient temperature: 80 °C

Material of barrel/housing: Cast aluminium, Die-cast aluminium

Air connection type cover cap: Female thread

EE Connecting thread for end cap: G 1/4
